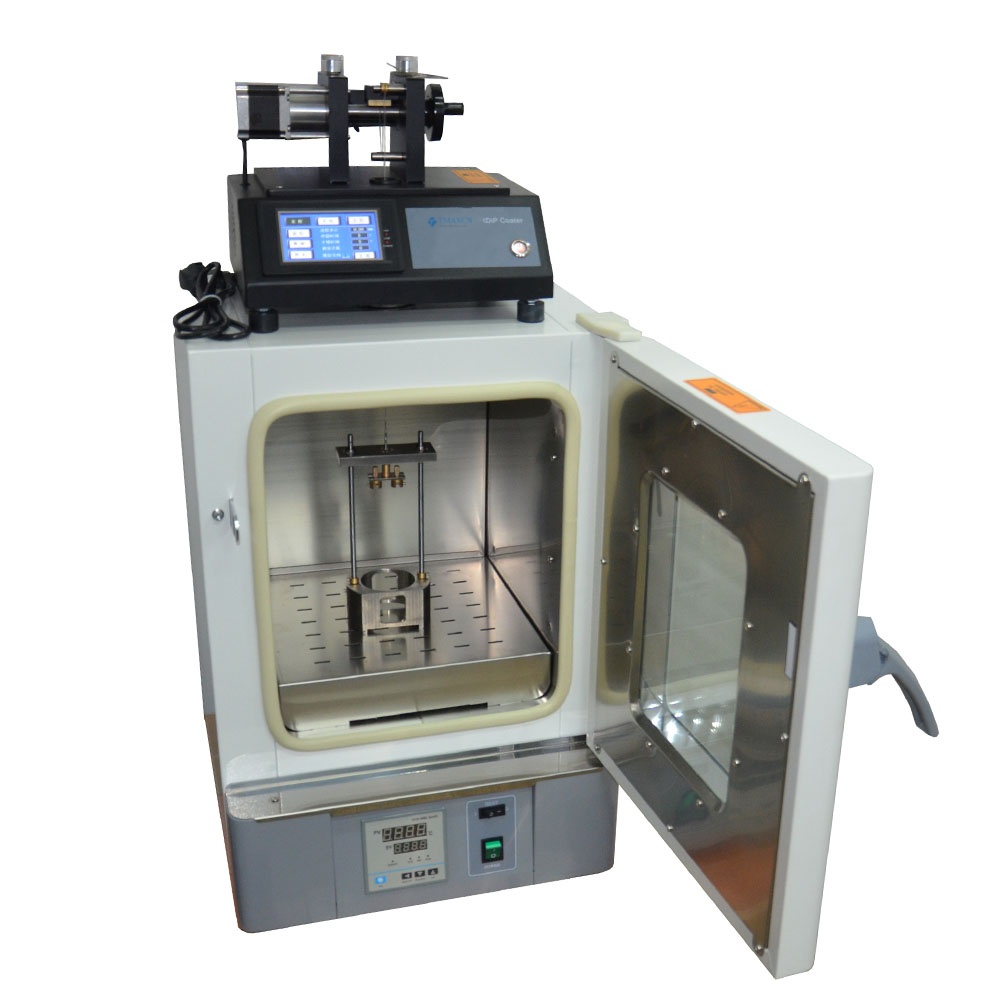

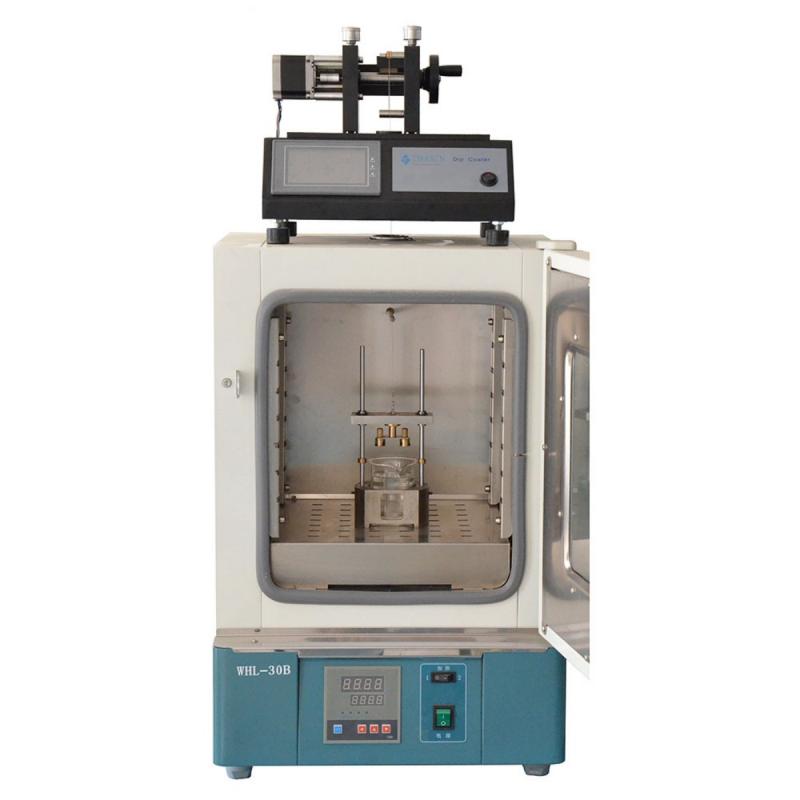

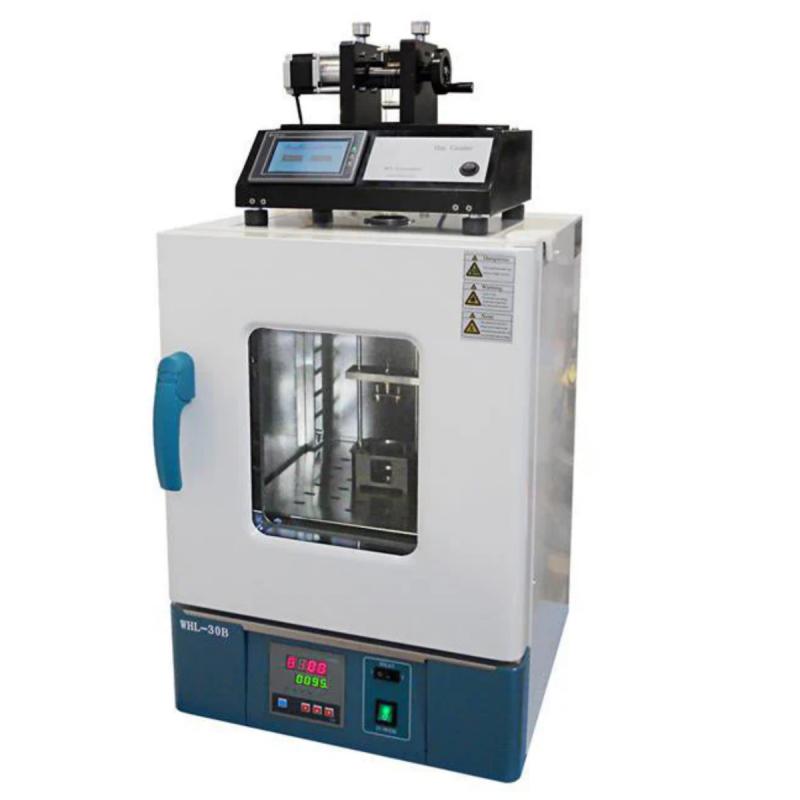

Micron-Level Constant Temperature Dip Coater With Hot Chamber

Product Description
The LITH-06H Micron-Level Constant Temperature Dip Coater is a CE-certified product, designed specifically for dip-coating experiments in liquid-phase thin-film growth. It is a precision lifting device with micron-level accuracy, essential for scientific research institutions engaged in liquid-phase film deposition.

This model adopts a PLC-programmed control system, utilizing a high-precision stepper motor to drive the lifting mechanism and lifting wires, ensuring smooth and precise vertical movement. By immersing and withdrawing samples vertically from the liquid-phase film material, a uniform film thickness is achieved on the sample surface. The system offers two operation modes: "Single Cycle" and "Full Cycle." Parameters such as lifting speed, immersion speed, dwell time in the liquid phase, drying time, and cycle count can be independently configured.

Equipped with a constant-temperature heating drying chamber, this programmable dip coater allows users to set the desired heating temperature based on process requirements. Compact, user-friendly, and portable, it is widely used in laboratories across universities, research institutes, and industrial enterprises.

Key Features

· 4.3-inch color touchscreen with an intuitive interface, suitable for beginners.

· Compact size and high cost-performance ratio, saving lab space.

· PLC-controlled high-precision stepper motor with suspended wire transmission for vibration reduction.

Technical Specifications

Parameter	Specification
Installation Conditions
Power Supply	AC220V, 50/60Hz, 10A standard socket (proper grounding required)
Operating Environment	Temperature: 25°C ±15°C, Humidity: 55%RH ±10%RH
Main Parameters
Lifting Unit Voltage	DC24V 3.75A (Standard adapter: AC100–240V)
Lifting Unit Power	50W
Type	Programmable—Constant Temperature (with heating chamber)
Drive Motor	High-precision stepper motor
Speed Range	1–500 µm/s
Dwell Time	1–999s
Drying Time	1–999s
Lifting Stroke	1–75mm
Lifting Cycles	1–20 times
Max Immersion Depth	≤60mm
Max Load Capacity	≤100g
Sample Substrate Size	75mm × 25mm × 2.5mm (holds 2 pieces)
Display & Control	4.3-inch color touchscreen
Heating Chamber Parameters
Working Voltage	AC220V 50/60Hz
Rated Current	3.6A
Heating Power	0.8KW
Temperature Range	RT (room temp) ~ +100°C
Temperature Control/Setting	Dual-digit PID / 4-button touch setting
Timer Range	0–9999 min/h
Internal Dimensions (Capacity)	310mm × 310mm × 310mm (30L)
External Dimensions	428mm × 500mm × 723mm
Overall Product Dimensions	428mm × 500mm × 995mm
Weight	≈50kg (including heating chamber)
