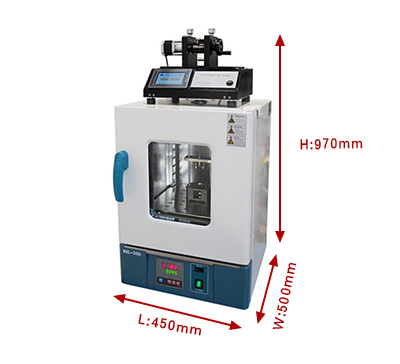

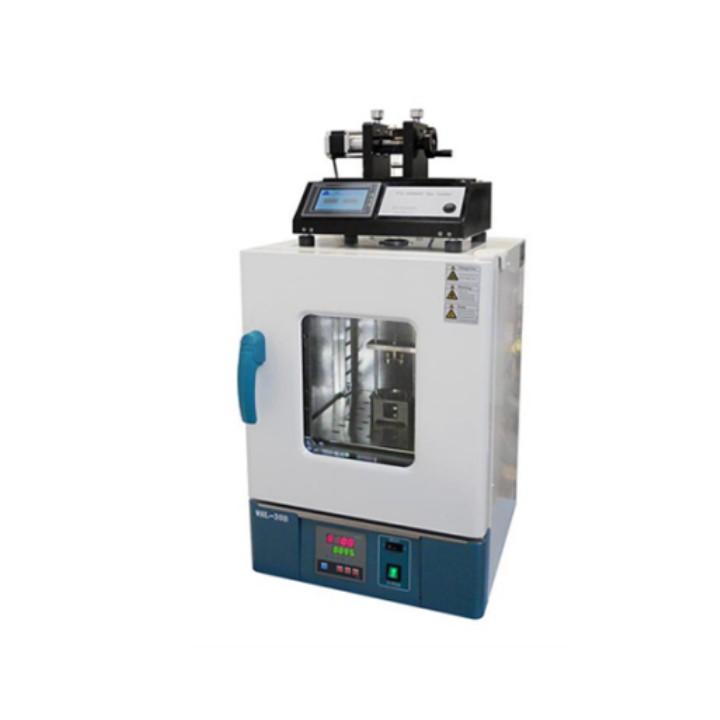

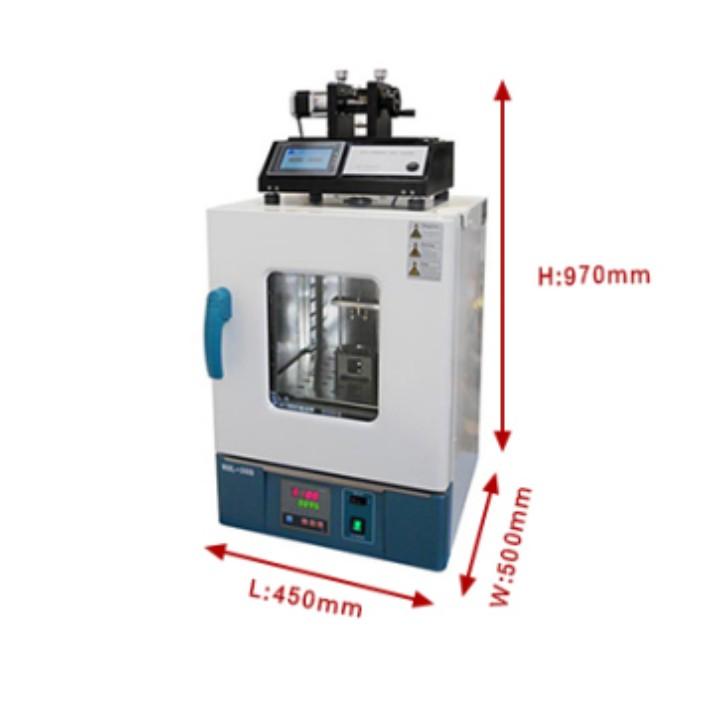

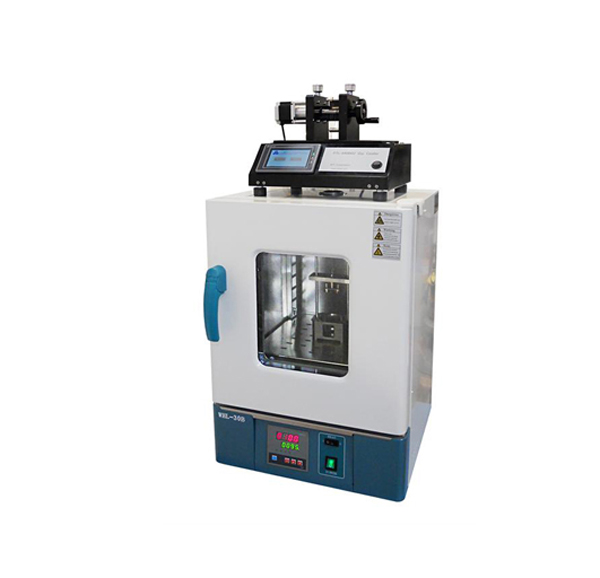

Lab Nanoscale Lifting and Pull Film Coater with Thermostatic Drying Chamber

Description：

PTL-NMB nanoscale thermostatic lift and pull film coater is designed for lifting and coating film in liquid phase with nanometer as the measurement, and grows film by vertically lifting the sample impregnated in the liquid phase. Drying time and other parameters. The machine is equipped with a thermostatic drying chamber, which enables the film growth process to be carried out at a constant temperature and facilitates the curing of the film. PTL-NMB nanoscale thermostatic lifting film coater can save laboratory space cause its compact size; it is suitable for beginners for its easy operation and easy to clean up. Therefore, this machine is mainly used for nanomaterials research, surface treatment and other materials lifting and coating, moreover, it is the ideal equipment for the majority of higher education institutions and research institutes to coat films.

Main features：

1、Adopt color touch screen, clear interface, convenient parameter setting.

2、The whole process of dipping and pulling coating film is carried out in the temperature field of constant temperature, which is conducive to film formation and curing.

3、Adopt the technology of overhanging motor for vibration damping.

4、Adopt high precision stepping motor.

5、Operation is safe and reliable, simple and easy to understand.

6、It has passed CE certification.
