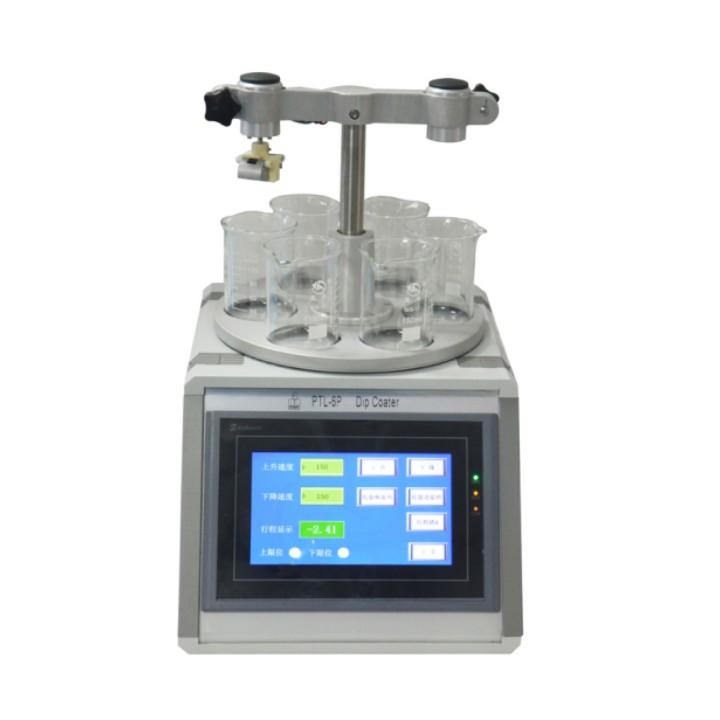

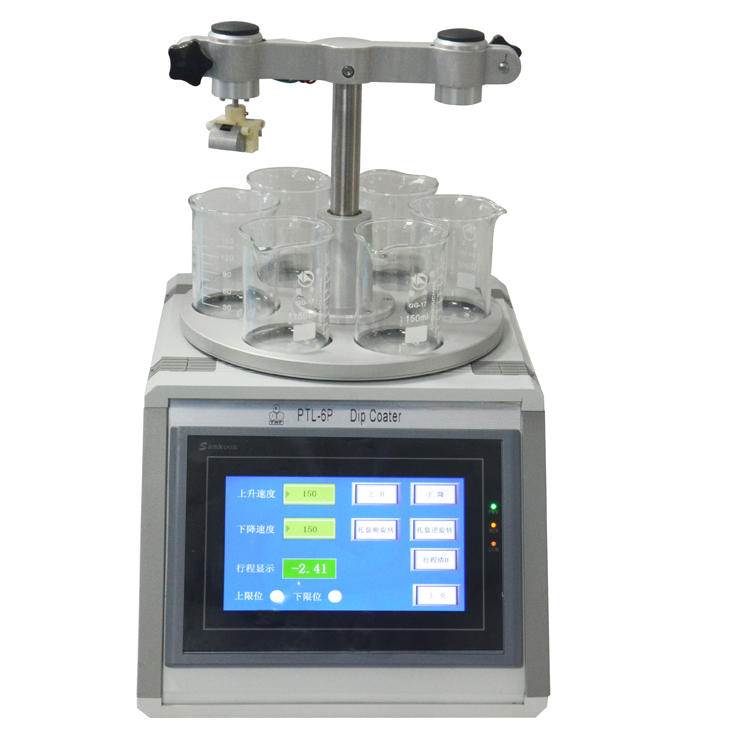

Laboratory Six Stations Lift Coater Equipment with Six Loading Beakers
Description:
The PTL-6P six-station lifting machine can lift one sample at a time, rotate the sample counterclockwise through the program control, impregnate it in the charging beaker for a certain time and then lift it out for drying, the impregnation time and drying time can be set through the program. The six loading beakers of PTL-6P six-station lifting machine can be filled with the same film material or different film materials. The charging beakers are not heated during the film coating process, so the machine is suitable for liquid film materials or flowable paste film materials. PTL-6P six-station lifting machine can save laboratory space cause its compact size; it is suitable for beginners for its easy operation and easy to clean up. Therefore, the machine is widely used in the laboratories of colleges and universities, research institutes and enterprise units.
Main features:
1. With 6 work stations, the sample can be rotated counterclockwise.
2. Adopt program-controlled lifting speed, impregnation time, drying time, etc.
3. Adopt high precision stepping motor.
4. It has passed CE certification.
Technical Parameters:
|
Product Name |
PTL-6P six-station lifting machine |
|
Model Number |
PTL-6P |
|
Mounting Conditions |
This equipment is required to be used under 1000m above sea level, 25℃±15℃ and 55%Rh±10%Rh humidity. 1. Water: without 1. Electricity: AC220V 50Hz, must be well grounded 2. Gas: without 3. Working station: size 500mm × 800mm × 700mm, load capacity of 50kg or more 4. Ventilation device: without |
|
Main Parameters |
1. Power supply: 220V 100W 2. Stirring speed: low speed/high speed (whether each station stirring, can be set individually) 3. Pulling speed: automatic rise and fall speed: 1-400 mm/min, manual rise and fall speed: 1-150 mm/min 4. Pulling times: 1-45 times 5. Dipping and drying time setting：1-999s 6. Stroke setting：1-80mm 7. Load cup：150ml 8. Effective impregnation length：60mm 9. Sample size: 75mm×25mm×2mm |
|
Product Specification |

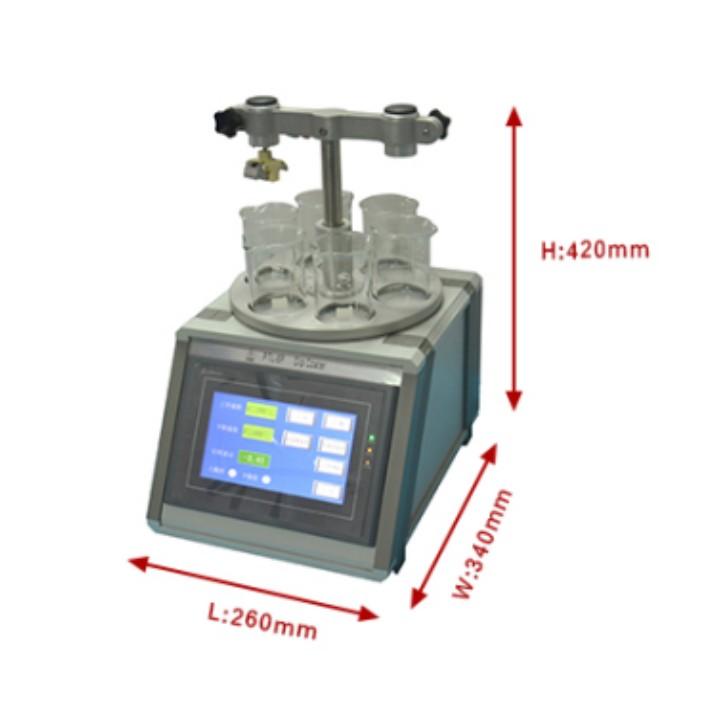

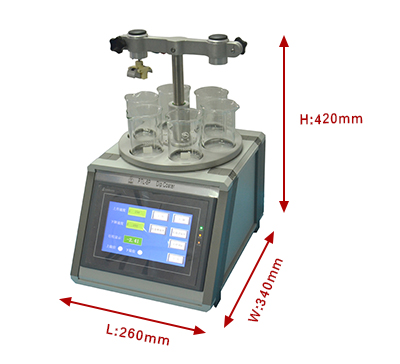

Size: 260mm x 340mm x 420mm.
Weight: 15kg |
|
Standard Accessories |
1. Sample fixture (single piece) 1 2. Carrying material cup 6pcs |
|
Optional Accessories |
Sample clamps (double piece) Other clamps |
