Lab Small Programmable Vertical Lifting Film Coating Machine with Touch Control Screen
Description：

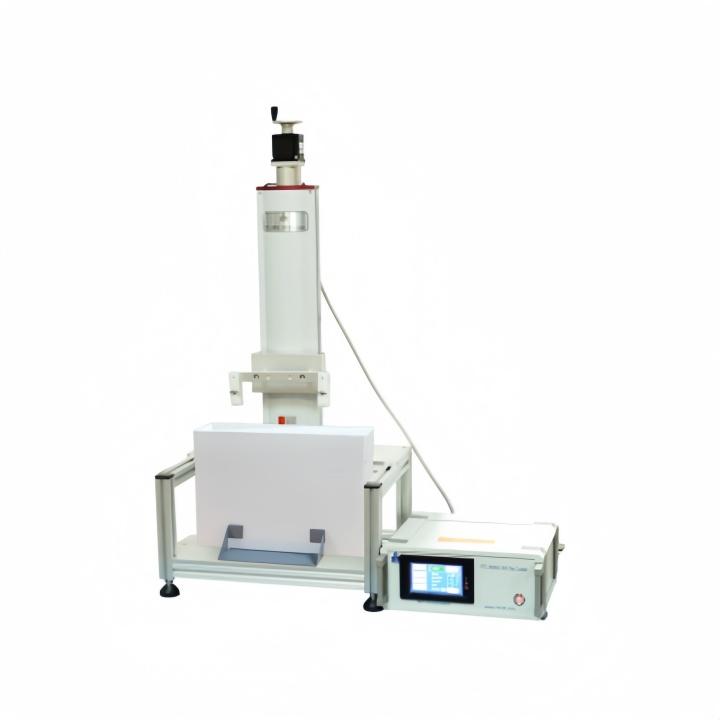

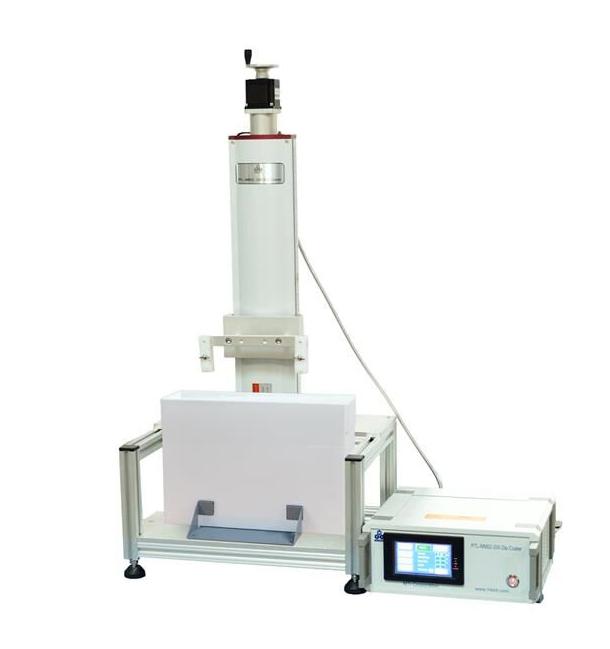

PTL-MM02-200 programmable vertical lifting film coater is a precision equipment designed for the study of thin film growth in liquid phase by vertically lifting the sample impregnated in liquid phase to grow thin film. It is possible to coat larger samples up to 310mm x 260mm, thickness 1mm-5mm, and to fix multiple samples at a time by customizing different sample clips. MM02-200 programmable vertical lifting and coating machine adopts high-precision speed control system and touch screen parameter input terminal to realize automatic control of the whole process of lifting and coating. The machine is small in size, simple and convenient to operate, and is ideal for coating larger samples in laboratories and small production workshops at room temperature.
Main features：
1. Use touch control screen to set the lifting speed, falling speed and dwell time according to actual needs.
2. Can set the lifting speed, dipping time, liquid entry speed, cycle times, drying time.
3. Adopt high precision stepper motor.
4. It has passed CE certification.
Technical Parameters:
|
Product Name |
PTL-MM02-200 programmable vertical lifting film coater |
|
Model Number |
PTL-MM02-200 |
|
Mounting Conditions |
This equipment is required to be used under 1000m above sea level, 25℃±15℃ and 55%Rh±10%Rh humidity. 1. Water: without 1. Electricity: AC220V 50Hz, must be well grounded 2. Gas: without 3. Working station: size 800mm × 600mm × 700mm, load capacity of 200kg or more 4. Ventilation device: without |
|
Main Parameters |
1. Power supply: 220V(50Hz) 2. Running (up and down) speed: 1mm/min-200mm/min 3. Stroke: 270mm 4. Sample size:: (length) 310 (mm) × (width) 260 (mm) × (thickness) 1~5 (mm) 5. Lifting load: ≤5.5kg 6. Two-phase hybrid stepper motor subdivided by the driver stepping angle 7. Dipping and drying time setting: 1-999s 8. Lifting times: 1-20 times |
|
Product Specification |

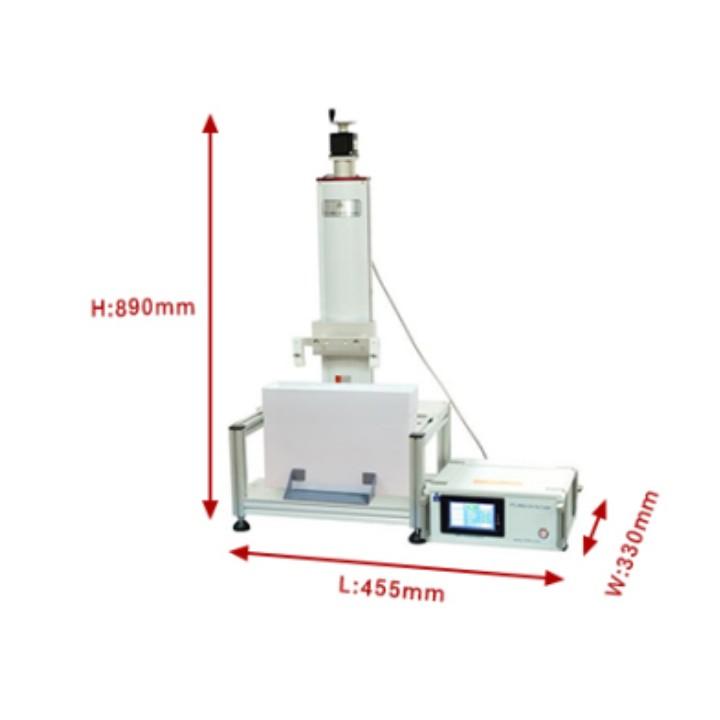

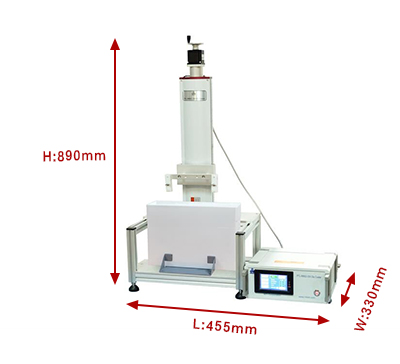

455mm(L)x330mm(W)x890mm(H) |
|
Standard Accessories |
1. 1 Control box 2. 1 dip tank |
