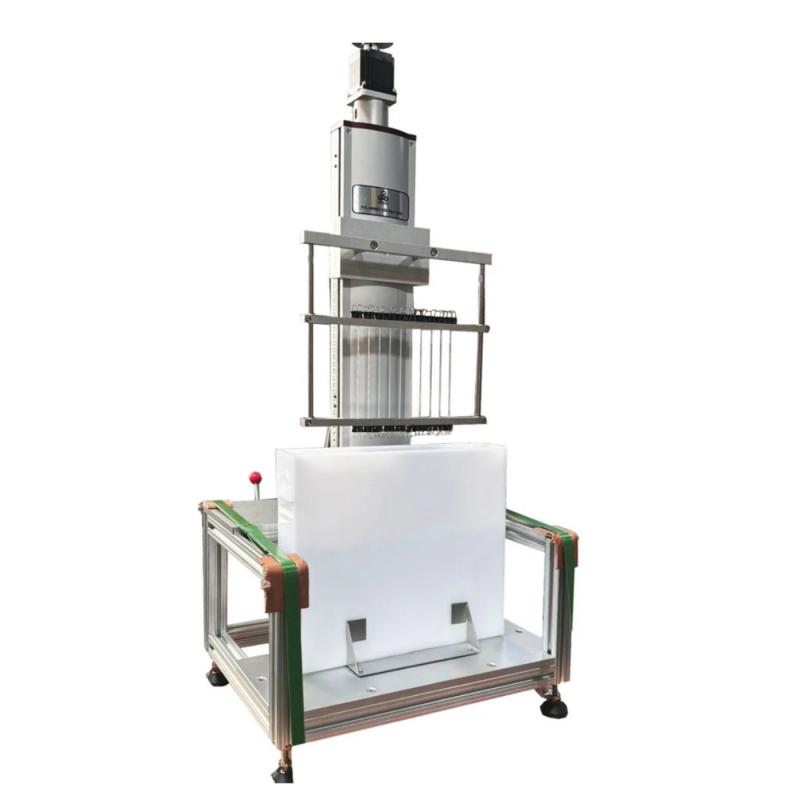

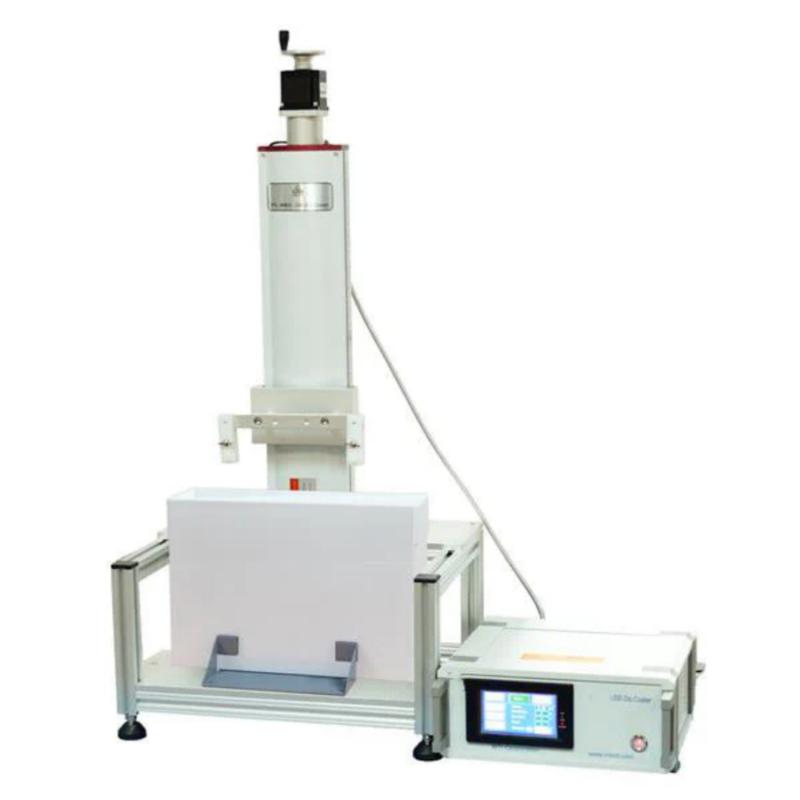

Millimeter Large Size Dip Coating Machine Coater With Low Price

Introduction
A precision device specifically designed for the preparation of thin films via liquid-phase growth on substrates. Features a maximum lifting speed of 1000mm/min, supports large sample sizes, and handles heavy lifting loads. The machine ensures stable vertical lifting with high precision, with programmable control over lifting cycles, immersion time, and repetitions. Compact in size and simple to operate. It achieves film deposition by vertically lifting a substrate from a liquid phase within a constant-temperature environment. Equipped with a high-precision speed control system and a touchscreen parameter input interface, it enables fully automated dip-coating processes.

Key Features

· 4.3-inch color touchscreen with an intuitive interface, suitable for beginners.

· Compact design, cost-effective, and space-saving for laboratory use.

· PLC-controlled high-precision stepper motor drive, ensuring smooth and accurate operation.

Technical Specifications

Parameter	Specification
Installation Requirements	1. Power Supply: Single-phase AC 100~240V, 50/60Hz, 10A national standard socket (must be properly grounded). A 10A circuit breaker must be installed.  2. Operating Environment: Temperature 25°C ±15°C, humidity 55%RH ±10%RH.
Key Parameters
Working Voltage	DC24V, 3.75A (Standard: AC100~240V power adapter included)
Rated Power	50W
Type	Programmable – Ambient Temperature Type
Drive Motor	High-precision stepper motor
Speed Range	10~1000mm/min (adjustable in 1mm increments)
Immersion Time	1~999s (adjustable in 1s increments)
Drying Time	1~999s (adjustable in 1s increments)
Lifting Stroke	1~350mm (adjustable in 1mm increments)
Lifting Cycles	1~20 times
Max. Substrate Size	610mm (L) × 315mm (W) × 1~5mm (T)
Max. Immersion Depth	≤300mm
Max. Load Capacity	≤5.5kg
Reservoir Material	White acrylic
Reservoir Dimensions	Inner dimensions: 640mm (L) × 50mm (W) × 335mm (H)
Display & Control	4.3-inch color touchscreen
Product Dimensions	670mm × 380mm × 860mm
Net Weight	≈20kg

Note: The included power adapter specifications are:

· Input: AC100~240V, 50/60Hz

· Output: DC24V, 3.75A
(Actual power supply must match the label on the rear of the device.)

Standard Accessories

No.	Item	Qty
1	Control Box	1 pc
2	Dip Tank	1 pc
