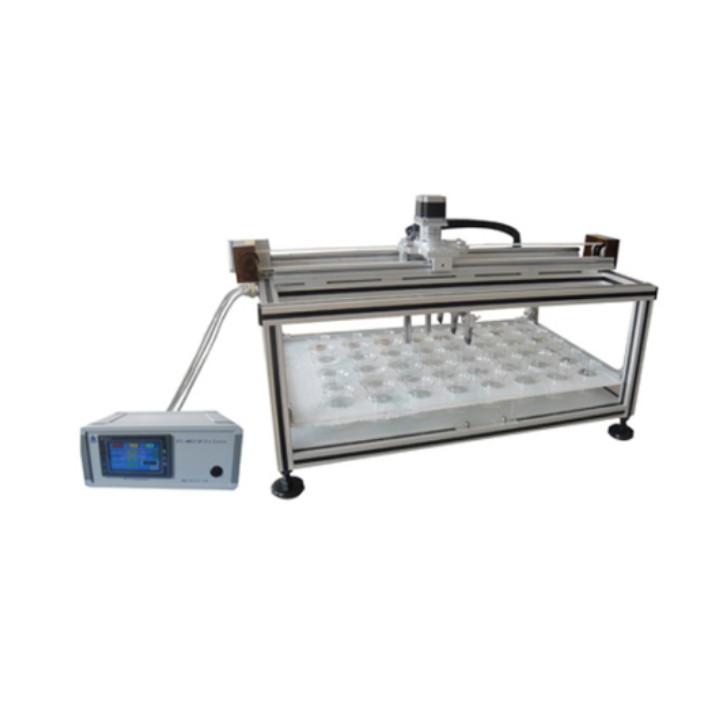

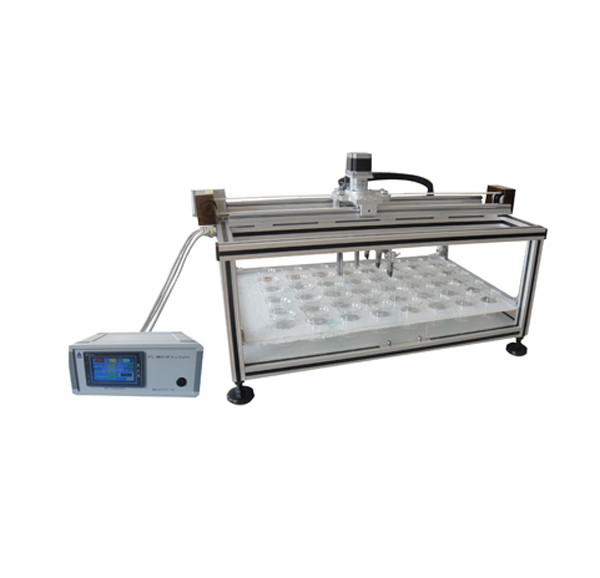

Laboratory Small Lift and Pull Film Coater Machine with Control Box
Description：
PTL-MM02-8P is a precision equipment designed for the study of thin film growth in liquid phase, which grows thin film on the surface of the sample by vertically lifting the sample impregnated in liquid phase. PTL-MM02-8P adopts high precision speed control system and touch screen parameter input to realize fully automatic control of lifting and coating 5 samples at the same time. The speed of sample entering and leaving the liquid phase film material, the impregnation time in the liquid phase film material, and the number of cycles of sample lifting can all be set by the control box. PTL-MM02-8P lift and pull film coater can save laboratory space cause its compact size; it is suitable for beginners for its easy operation and easy to clean up. Therefore, the machine is widely used in the laboratories of universities, colleges, research institutes and enterprise units.
Main features：
1. Up to 5 groups of specimens can be lifted and pulled at a time, with 8 stations for each group of specimens.
2. The 8 stations can be set with different lifting speed, impregnation time and drying time respectively.
3. Adopt high precision stepping motor.
4. Wide range of application.
5. It has passed CE certification.
Technical Parameters:
|
Product Name |
PTL-MM02-8P lift and pull film coater |
|
Model Number |
PTL-MM02-8P |
|
Mounting Conditions |
This equipment is required to be used under 1000m above sea level, 25℃±15℃ and 55%Rh±10%Rh humidity. 1. Water: without 1. Electricity: AC220V 50Hz, must be well grounded 2. Gas: without 3. Working station: size 800mm × 600mm × 700mm, load capacity of 200kg or more 4. Ventilation device: without |
|
Main Parameters |
1. Power supply：220V 50Hz 2. X-axis speed：500mm/min-5000mm/min 3. Z-axis speed：1 mm/min-200mm/min 4. Effective impregnation length：65mm 5. Sample size: 75mm×25mm×2.5mm 6. The number of sample pieces being pulled at the same time: 5 pieces 7. Each sample piece pulling station: 8 8. Dip and dry time setting：1-999s 9. Cycle times: 1 time -999 times |
|
Product Specification |

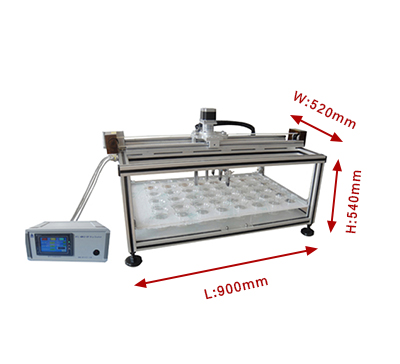

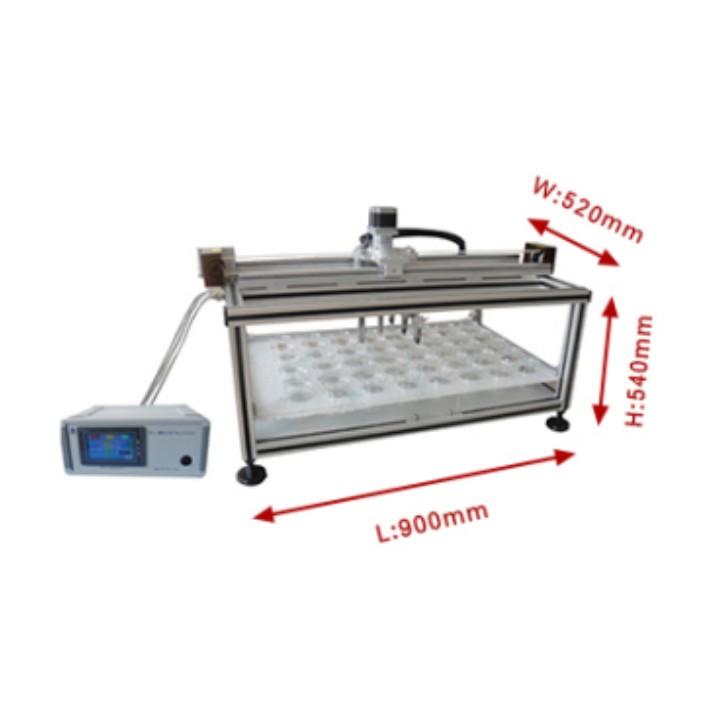

Size: 900mm×520mm×540mm； |
|
Standard Accessories |
1. 1 Loading cup fixing plate 2. 1 Clamp fixing plate 3. 40 cups 4. 5 clips 5. Protective cover 2pcs |
|
Optional Accessories |
1. Can be customized according to your needs of different sizes of the carrier cup and carrier cup fixed frame 2. Thermostatic water tank (power: 800W; thermostatic temperature: RT-70℃; temperature accuracy: ±1℃ without considering environmental influence; volume: 25L) |
