Lab Programmable Vertical Lift and Pull Film Coater with Automatic Control Procedure
Description：

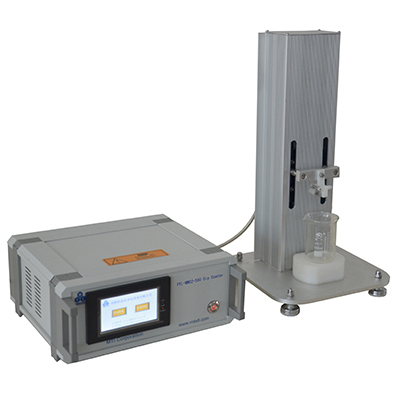

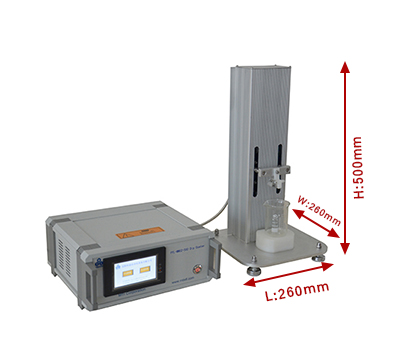

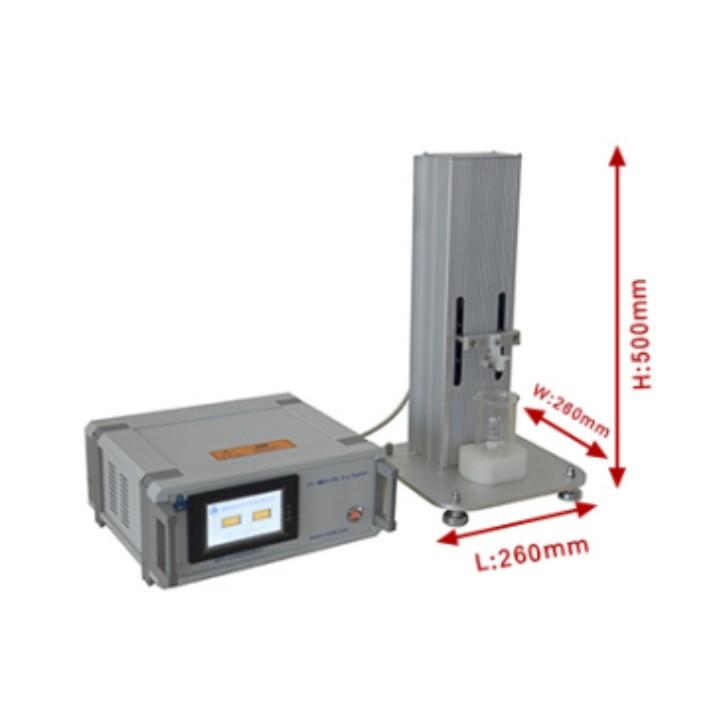

PTL-MM02-500 programmable vertical lift and pull film coater is a precision equipment specially prepared for the study of the growth of thin films in liquid phase on substrates. The sample surface will grow thin film for vertically lifting the sample impregnated in liquid. The machine adopts precision stepping motor to subdivide the stepping angle by the driver, which can precisely control the lifting speed and make the machine run smoothly during the lifting process. The lifting speed of the sample, the impregnation time of the sample in the liquid phase film material, the speed of the sample into the liquid and the number of cycles of the sample coating, and the drying time of the sample can be controlled by the control system. PTL-MM02-500 program-controlled vertical lift and pull film coater adopts high-precision speed control system and touch screen parameter input terminal to realize the automatic control of the whole process of lifting and coating. The machine is small in size, simple and convenient to operate, and is ideal for coating larger samples in laboratories and small production workshops at room temperature.
Main features：
1. The machine is designed with high precision speed control system.
2. Touch screen type setting parameters.
3. Automatic control of the whole process.
4. It has passed CE certification.
Technical Parameters:
Product Name
PTL-MM02-500 programmable vertical lift and pull film coater
Model Number
PTL-MM02-500
Mounting Conditions
This equipment is required to be used under 1000m above sea level, 25℃±15℃ and 55%Rh±10%Rh humidity.
1. Water: without
1. Electricity: AC220V 50Hz, must be well grounded
2. Gas: without
3. Working station: size 800mm × 600mm × 700mm, load capacity of 200kg or more
4. Ventilation device: without
Main Parameters
1. External power supply: 220V(50Hz)/110V(60Hz).
2. Running (up and down) speed: 1~500mm/min (integer).
3. Adopt high precision stepping motor.
4. Substrate size: (length) 75 × (width) 25 × (thickness) 2.5 (mm).
5. The lifting load is not more than 100g.
6. Effective impregnation length: 60mm.
7. Dipping and drying time setting: 1-999s
Product Specification
1. The process of growing film by lifting the surface is a very delicate work, loading the substrate and removing it without touching the growing film surface.
2. The substrate must be left in the head (6-10mm), for example: the film requires 50mm. 56-60mm long substrate, if not left in the head, you can purchase a special card, the card can make the substrate all cast into the liquid, that is, no need to leave the head. This fixture can only be stuck to a piece of substrate.
3. If there are special requirements for the machine (speed, travel, substrate size, corrosion prevention, etc.), special design is available for customers.
Standard Accessories
1. Power cord 1
2. Fixture 1 piece
3. Material cup holder 1 piece
4. Control box 1 piece
