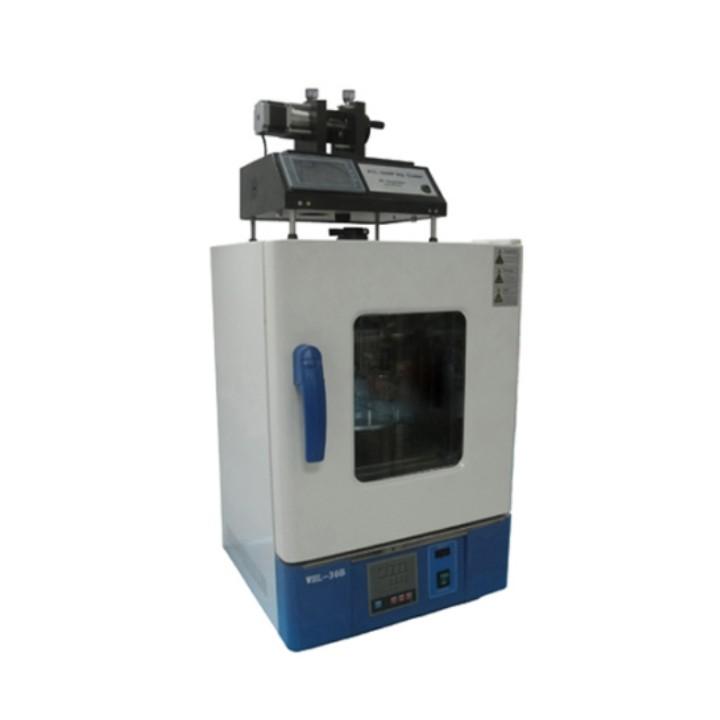

Lab Six Stations Lift and Pull Film Coater Machine

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Brand:

    LITH
  • Item no.:

    LITH-PTL-OV6P
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

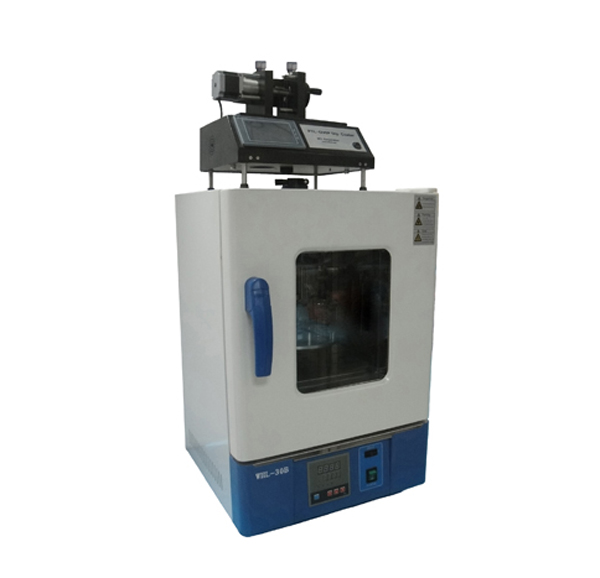

Lab Six Stations Lift and Pull Film Coater Machine



Description

The PTL-OV6P 6-station lift and pull film coater works under the same external conditions can impregnate and lift and coat up to 6 specimens, and different liquid phase film materials can be placed in each loading beaker. The lifting speed of the PTL-OV6P 6-station lifting and pull film coating machine specimen, the impregnation time of the specimen in the liquid phase film, and the drying time of the specimen can be set by the program. Manually rotate the loading beaker after completing one coating to make the sample part go to the next coating process. The machine is equipped with a constant temperature drying box, so that the dipping and lifting growth process of the film is carried out at a constant temperature, and it is conducive to the curing of the film. PTL-OV6P 6-station lift and pull film coater can save laboratory space cause its compact size; it is suitable for beginners for its easy operation and easy to clean up. Therefore, this machine is mainly used for nanomaterials research, surface treatment and other materials lifting and coating, and it is the ideal equipment for the majority of higher education institutions and research institutes to coat films. (Customized micron and nano-level lifting and pulling machine for this product is available)




Main features

1. With 6 stations, it is suitable for dipping and pulling coating of multiple samples at one time.

2. Adopt program-controlled pulling speed, impregnation time, drying time.

3. The whole process of dipping and pulling coating film is carried out in a constant temperature field, which is conducive to film formation and curing.

4. Adopt the technology of overhanging motor for vibration damping.

5. Adopt high precision stepping motor.

6. Up to 6 samples can be lifted at a time.

7. It has passed CE certification.



Technical Parameters:

Product Name

PTL-OV6P 6-station lift and pull film coating machine

Model Number

PTL-OV6P

Mounting Conditions

This equipment is required to be used under 1000m above sea level, 25℃±15℃ and 55%Rh±10%Rh humidity.

1. Water: without

1. Electricity: AC220V 50Hz, must be well grounded

2. Gas: without

3. Working station: size 800mm × 600mm × 700mm, load capacity of 200kg or more

4. Ventilation device: without

Main Parameters

1. Power supply: 220V

2. Power800W

3. Lifting speed: 1 mm/min-200mm/min

4. TemperatureRT-100℃

5. Load cupΦ60mm150ml

6. Dipping and drying time setting1-999s

7. Times of lifting1-20 times

8. Effective impregnation length60

9. Sample size: 75 mm × 25 mm × 2.5 mm

10. Constant temperature box technical parameters.

11. Temperature range: room temperature +5~100℃

12. Temperature fluctuation: ±1.5℃

13. Outline size: 460×510×695

Product Specification

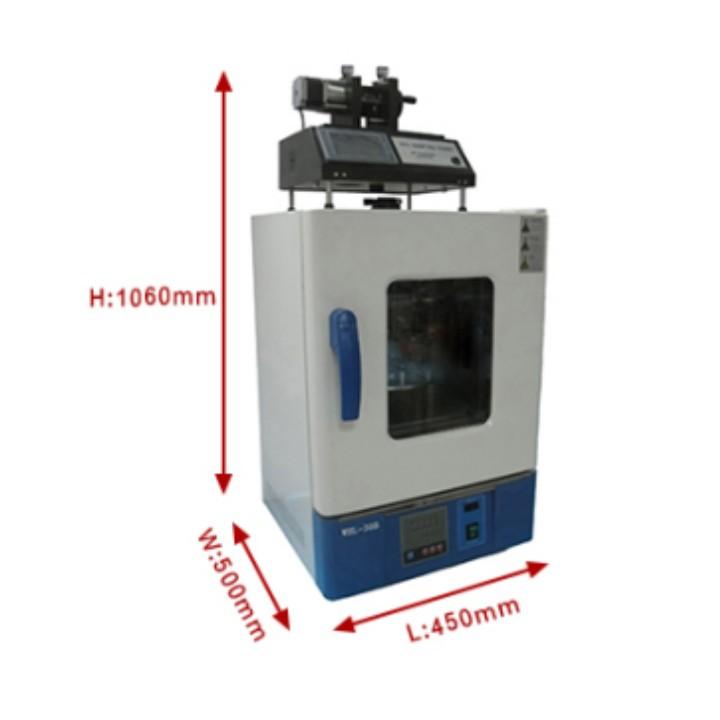

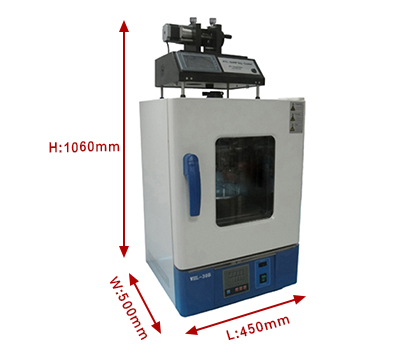

Size: 450mm x 500mm x 1060mm.

Weight: 40kg

Standard Accessories

1. 1 set of coated film clamps

2. Load cup 6 pcs

3. Lifting wire 3 pcs


Lab Lift and Pull Film Coater
