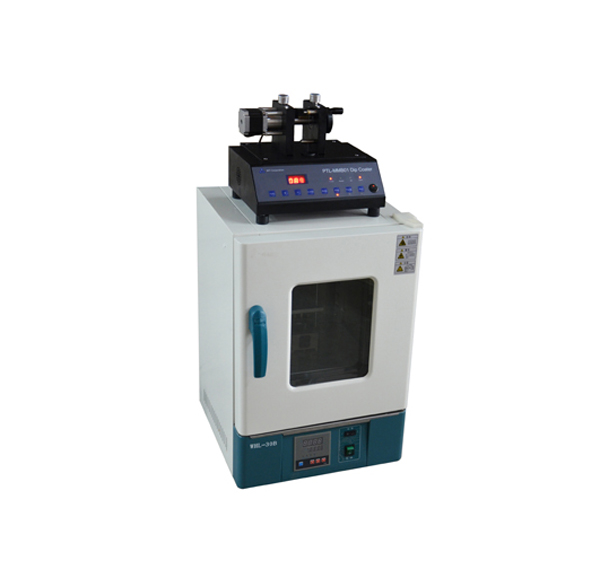

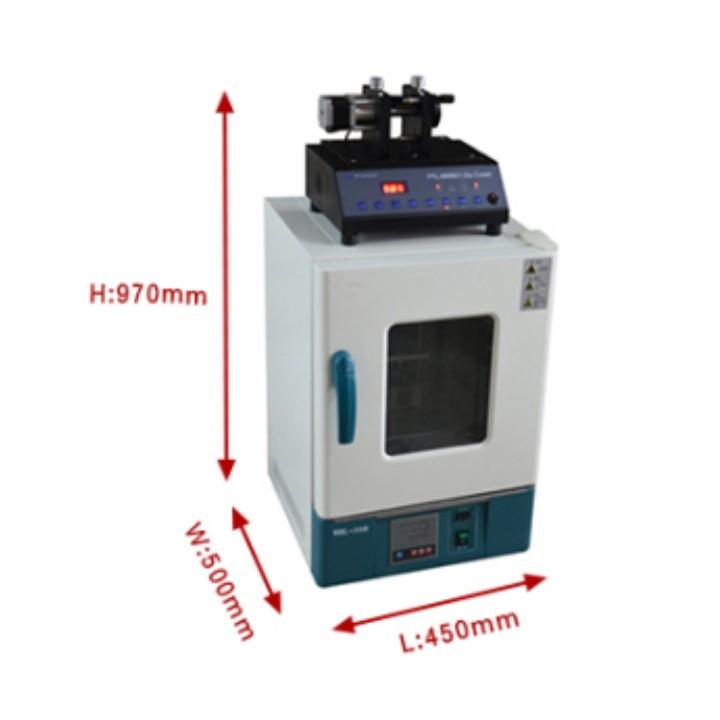

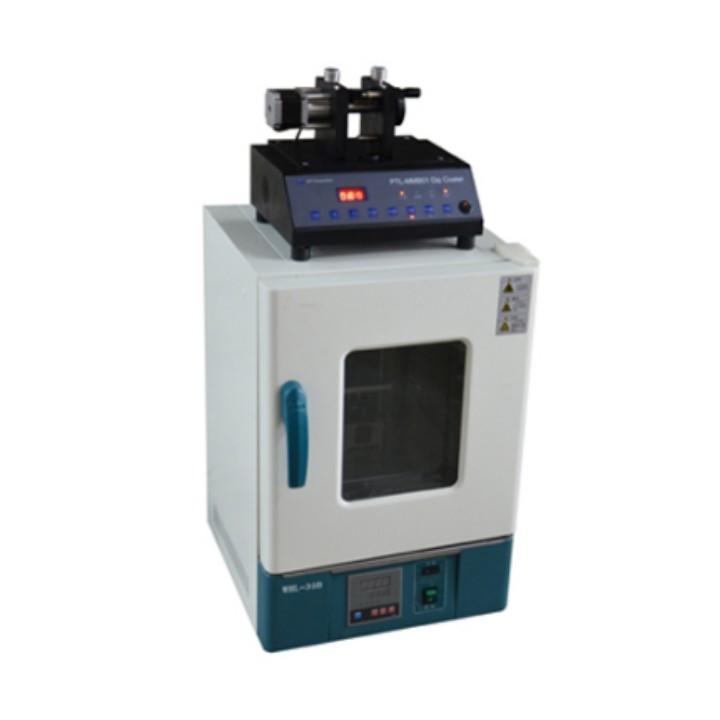

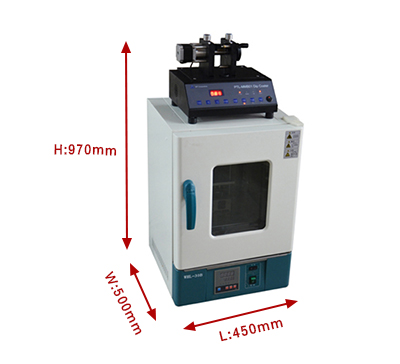

Laboratory Small Thermostatic Type Lift and Pull Film Coater Mchine with Key Type Control Panel

Description：

PTL-MMB01 thermostatic lift and pull film coater is designed for the study of liquid phase epitaxial film, through the lifting wire, vertical impregnation lifting sample, so that the sample is impregnated in the liquid phase film material for a period of time and then lifted out, so that the surface of the sample grows a certain thickness of film. PTL-MMB01 thermostatic lift and pull film coater control panel adopts key type control panel, using single board machine to control the lifting and lowering of the lifting wire The speed makes the lift run smoothly and accurately. The sample can be impregnated in the liquid film material by manual control and automatically lifted back; it can also be impregnated in the liquid film material by automatic control and manually lifted back; the impregnation and drying time can be controlled according to individual needs. The machine is equipped with a thermostatic drying oven with a temperature up to 100°C, so that the film impregnation and lifting process can be carried out at a constant temperature. PTL-MMB01 thermostatic lift and pull film coater can save laboratory space cause its compact size; it is suitable for beginners for its easy operation and easy to clean up. Therefore, the machine is widely used in the laboratories of universities, colleges, research institutes and enterprise units.

Main features:

1. Provides stable constant temperature dipping and lifting film coating environment.

2. The whole process of dipping and pulling coating film is carried out in the temperature field of constant temperature, which is conducive to film formation and curing.

3. It has passed CE certification.

4. Adopt the technology of overhanging motor for vibration damping.

5. Adopt high precision stepper motor.

Technical Parameters:
