Lab Four Stations Tilting Lift Coating Device with Servo Motor

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Brand:

    LITH
  • Item no.:

    LITH-PTL-AADC
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

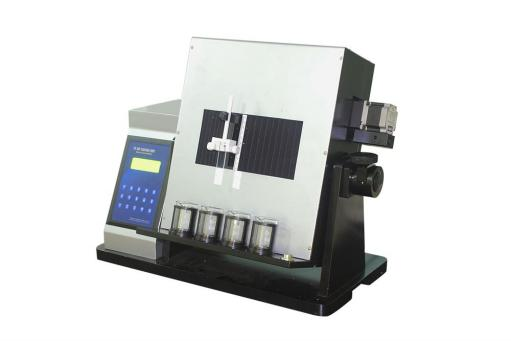

Lab Four Stations Tilting Lift Coating Device with Servo Motor




Description

The PTL-AADC 4-station tilting lift coater is a lift coater with a tilt angle that applies a nano-coating to the sample by immersing the sample in a beaker containing the coating material. The sample tilt angle can be set in the range of 0-45° as required. The machine is equipped with 4 pull-up bars and 4 beakers, which can be filled with 4 different coating materials at the same time. The immersion speed, immersion time in the beaker, lifting speed and drying time can be set individually for each beaker, and the PTL-AADC 4-station lift-off coater works at a suitable angle to lift the sample out of the coating material. One of the advantages of the PTL-AADC 4-station tilting lift coater is that it is possible to achieve the desired coating properties by reducing the number of coats or coating steps.





Technical Parameters:

Product Name

The PTL-AADC 4-station tilting lift coater

Main Parameters

Drive motor: servo motor

Drive mechanism:lead screw

Impregnation time:0-99s/min/hour

Cycle times: 1~999

Input power: 208-240VAC, 50/ 60Hz power: ≤800W

Maximum lifting stroke: 75mm

Control unit: speed control, with a LED touch screen control, can store 5 curves

Control panel with RS232 interface

Optional control software, can be operated by computer (with Window 8 match)

Product Specification

Size: 570mm×300mm×475mm

Net weight: 23kg

Standard Accessories

1. Sample Clamp

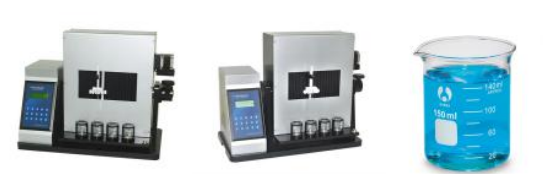

2. Beakers: The instrument is equipped with four 150ml beakers

Quality Certification

CE certification

Warranty

One year warranty, lifetime maintenance

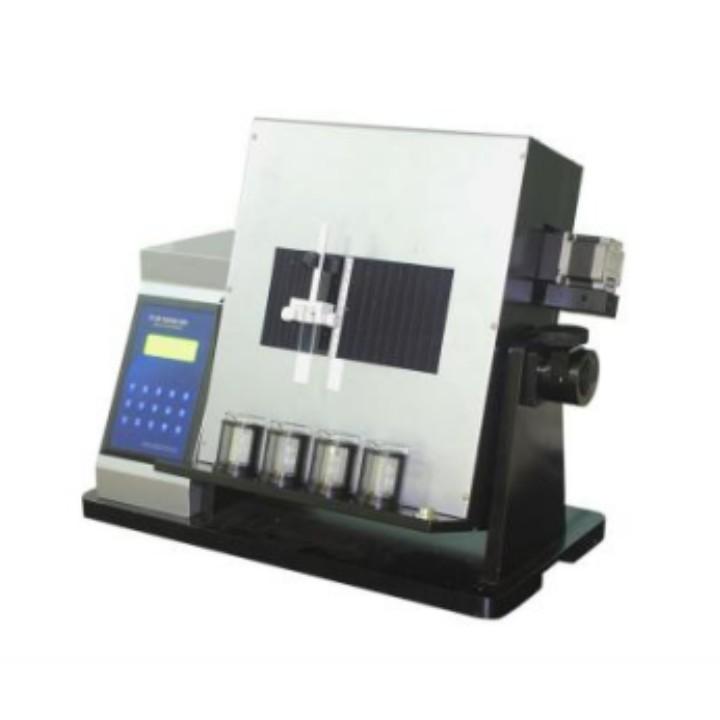

Lab Tilting Lift Coating Device
