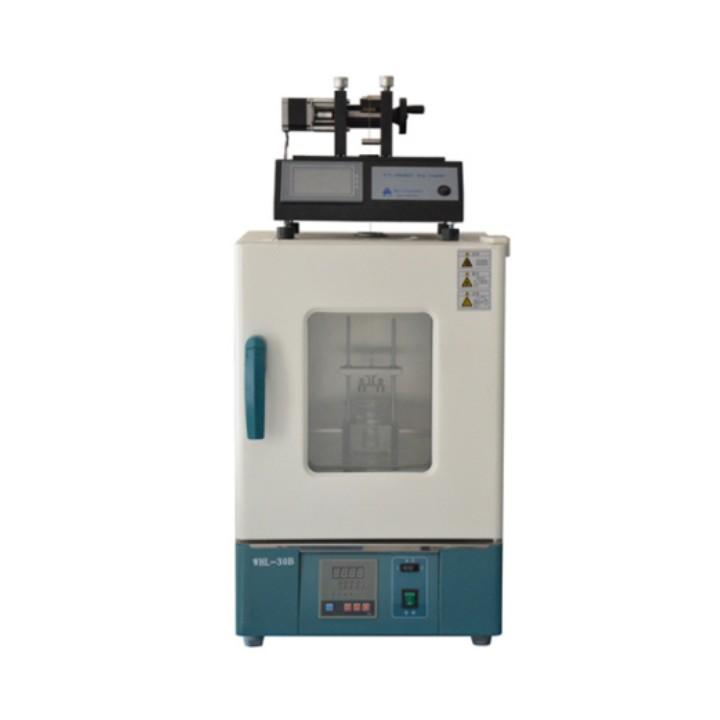

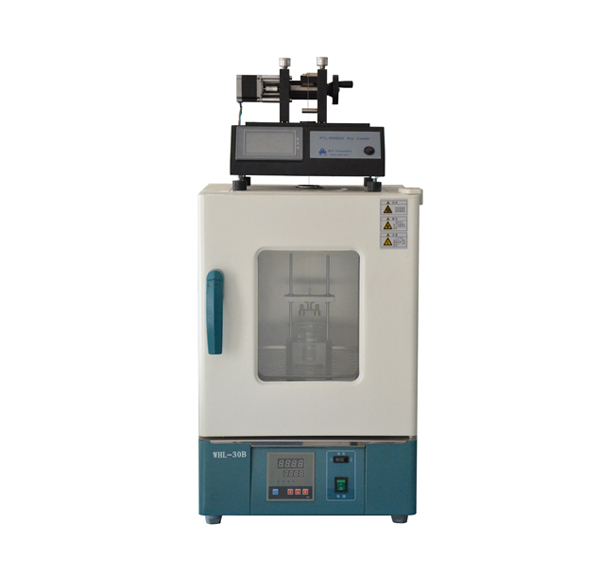

Lab Millimeter Grade Thermostatic Programmable Lift and Pull Film Coater with PLC Program Control
Description：
PTL-MMB02 millimeter level thermostatic programmable lift and pull film coater is specially designed for impregnating and lifting film in liquid phase, through lifting wire, vertically impregnating and lifting sample parts, so that the sample parts are impregnated in liquid phase film material for a period of time and then lifted out, so that a certain thickness of film grows on the surface of the sample parts. PTL-MMB02 millimeter level thermostatic programmable lift and pull film coater adopts touch screen for control, which can set The lifting speed, the impregnation time of the sample in the liquid-phase film material, the speed of the sample into the liquid, the number of cycles of the sample in and out of the liquid-phase film material, the drying time, etc. can be set. The machine is equipped with a thermostatic drying chamber, which makes the film growth process under a constant temperature and is conducive to film curing. PTL-MMB02 millimeter level thermostatic programmable lift and pull film coater can save laboratory space cause its compact size; it is suitable for beginners for its easy operation and easy to clean up. Therefore, the machine is widely used in the laboratories of colleges and universities, research institutes and enterprise units.
Main features:
1、Adopt PLC program control, the control interface is simple and clear.
2、The whole process of dipping and lifting coating film is carried out in the temperature field of constant temperature, which is conducive to film formation and curing.
3、Adopt the technology of overhanging motor for vibration damping.
4、Adopt high precision stepping motor.
5、Simple operation, safe and reliable.
6、It has passed CE certification.
Technical Parameters:
Product Name
PTL-MMB02 millimeter level thermostatic programmable lift and pull film coater
Model Number
PTL-OV5P
Mounting Conditions
This equipment is required to be used under 1000m above sea level, 25℃±15℃ and 55%Rh±10%Rh humidity.
1. Water: without
1. Electricity: AC220V 50Hz, must be well grounded
2. Gas: without
3. Working station: size 800mm × 600mm × 700mm, load capacity of 200kg or more
4. Ventilation device: without
Main Parameters
1. Lifting speed: 1mm/min-200mm/min
2. Temperature：RT-100℃
3. Effective impregnation length：60㎜
4. Dipping and drying time setting：1-999s
5. Pulling times：1-20 times
6. Sample size: 75mm×25mm×2.5mm
7. Constant temperature box technical parameters.
8. Temperature range: room temperature +5~100℃
9. Temperature fluctuation: ±1.5℃
10. Outline size: 460×510×695
Product Specification

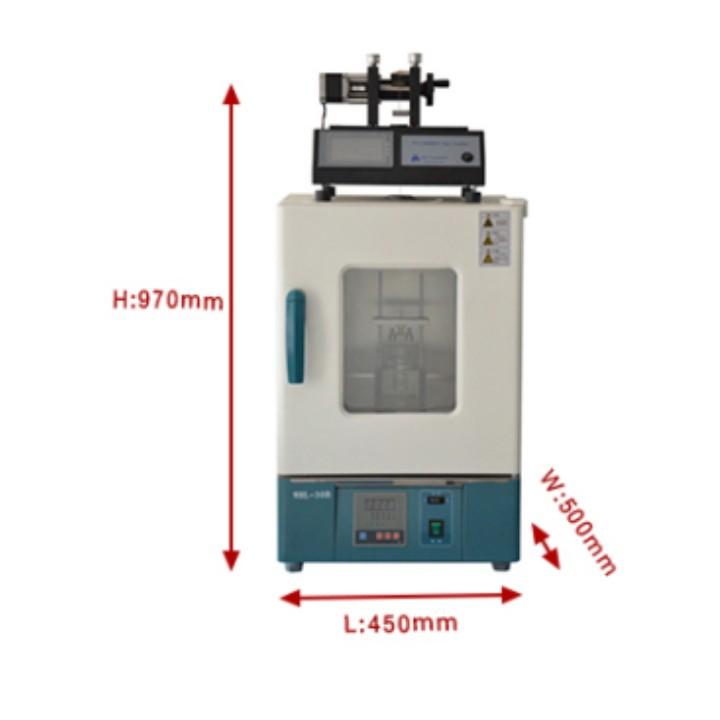

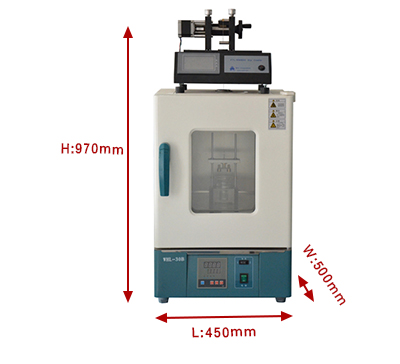

Size: 450mm×500mm×970mm
Standard Accessories
1. 1 set of coating fixture
2. 1 material cup
3. 3 strips of lifting wire
