Lab Servo Micron Lift and Pull Film Coating Machine with PLC Program control System

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Brand:

    LITH
  • Item no.:

    LITH-PTL-UMB01
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

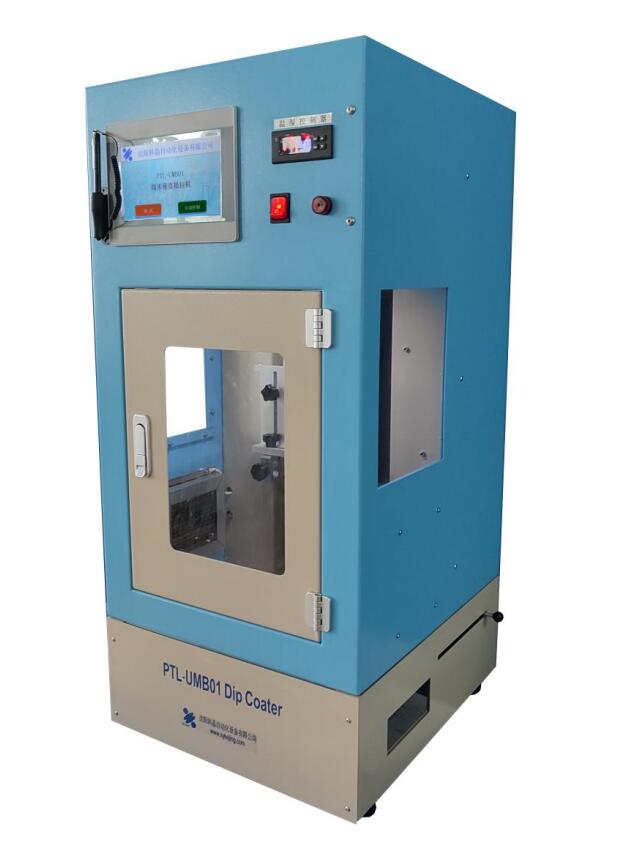

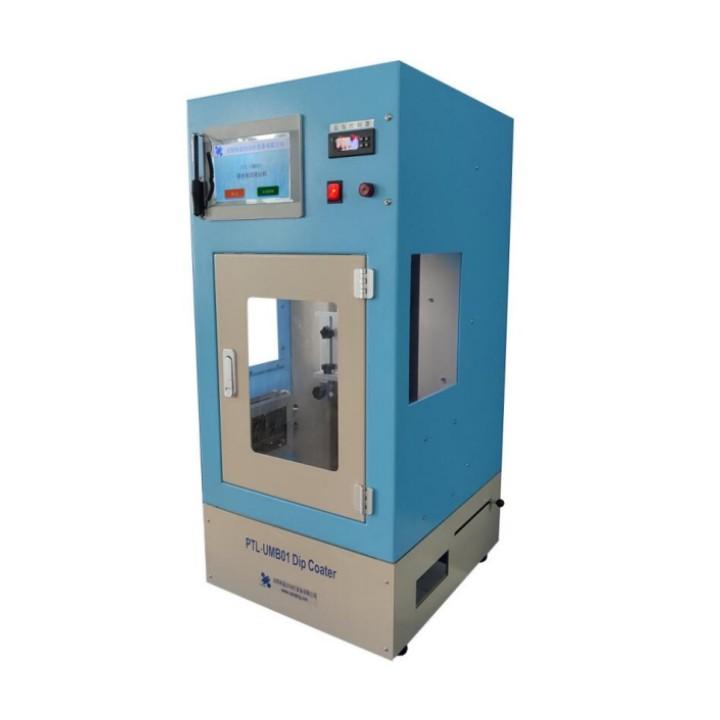

Lab Servo Micron Lift and Pull Film Coating Machine with PLC Program control System




Description

PTL-UMB01 servo micron lift and pull film coater is designed for dipping and pulling film in liquid phase with micron as the measurement. By dipping the substrate in the loading cup for a certain time and then pulling it out vertically, the film grows on the surface of the sample impregnated in the liquid phase. The machine adopts PLC program control system with color touch screen as data input and output to display parameters such as lifting speed, lifting height, number of lifting round trips, impregnation time and drying time. The machine is equipped with a constant temperature drying chamber, so that the film growth process can be carried out at a constant temperature, and it is conducive to the curing of the film. PTL-UMB01 servo micron lift and pull film coater can save laboratory space cause its compact size; it is suitable for beginners for its easy operation and easy to clean up. Therefore, this machine is mainly used for materials research, surface treatment and other materials lifting and coating, moreover, it is the ideal equipment for the majority of higher education institutions and research institutes to coat films.





Main features

1. Adopt color touch screen, clear interface, convenient parameter setting.

2. The whole process of impregnation and pulling coating is carried out in the box, which reduces the influence of external air flow on the film.

3. Operation is safe and reliable, simple and easy to understand.

4. Adopt imported servo motor with high precision ball screw, high speed precision and smooth running.

5. Adopt stainless steel liquid tank to prevent liquid from splashing into the box, and small liquid box can be placed in the liquid tank.

6. Adjustable clamping device, according to the sample size to adjust the position of the clamping device up and down.

7. The use of stainless steel material and liquid box, more corrosion-resistant.





Technical Parameters:

Product Name

PTL-UMB01 servo micron lift and pull film coater

Model Number

PTL-UMB01

Mounting Conditions

This equipment is required to be used under 1000m above sea level, 25℃±15℃ and 55%Rh±10%Rh humidity.

1. Water: without

1. Electricity: AC220V 50Hz, must be well grounded

2. Gas: without

3. Working station: size 800mm × 600mm × 700mm, load capacity of 200kg or more

4. Ventilation device: without

Main Parameters

1. Power supply: 220V

2. Lifting speed: 1um/S-8000um/S, speed resolution 1μm

3. With heating and dehumidification function: heating temperature RT-50℃

4. Effective stroke: 220mm

5. Maximum sample size can be lifted: 200×150×5

6. Dipping and drying time setting1-999s

7. Pulling times: 1-20 times

8. Pulling load: ≤1000g

9. Sample size: 150mm×5mm×150mm

Product Specification

10Product specifications.

Size: 400mm×451mm×877mm

Weight: 50kg

Lab Lift and Pull Film Coating Machine
