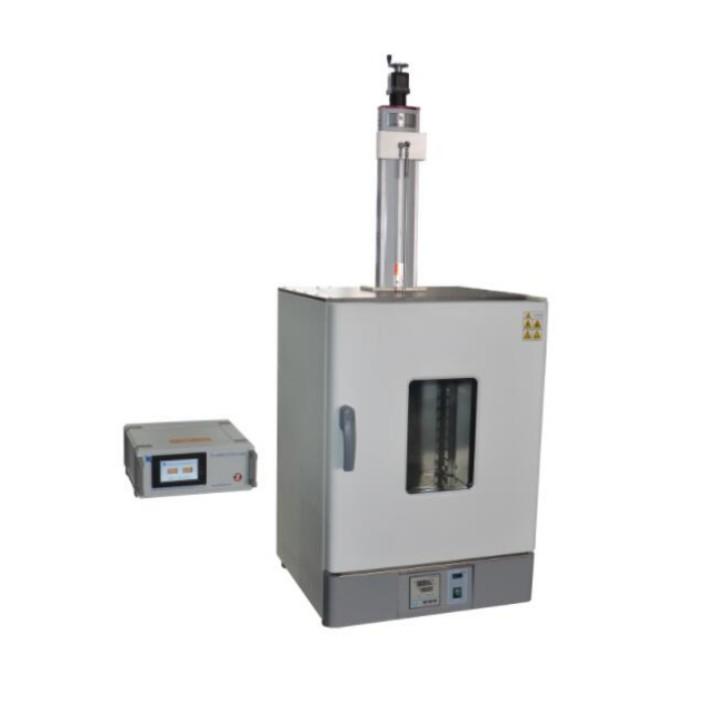

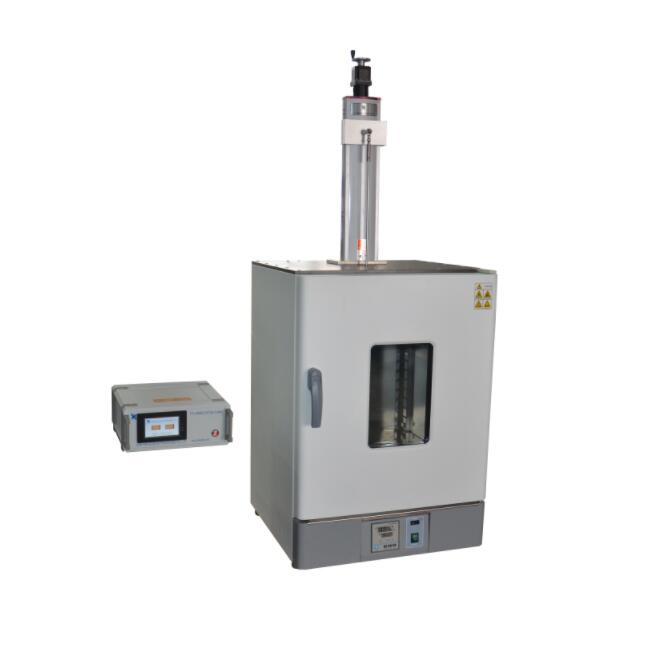

Lab Constant Temperature Vertical Lift and Pull Film Coater Device with Control Box
Description：
PTL-MMB02-200 thermostatic vertical lift and pull film coater is a precision equipment designed for the study of thin film growth in liquid phase by vertically lifting the sample in liquid phase in a thermostatic field. The machine adopts high precision speed control system and touch screen parameter input terminal to realize automatic control of the whole process of film lifting and coating.
The stepping angle of the two-phase hybrid stepper motor is subdivided by the driver.
Technical Parameters:
Product Name
PTL-MMB02-200 thermostatic vertical lift and pull film coater
Model Number
PTL-MMB02-200
Main Parameters
1. Power supply: 220V 50Hz
2. Heating power：2.3KW
3. Lifting speed: 1mm/min-200mm/min
4. Stroke：250mm
5. Temperature: 80℃-200℃
6. Temperature accuracy: ±1.5℃
7. Fuse: 15A
8. Sample size: 407mm×229mm, thickness 1mm-10mm
9. Lifting load: ≤5kg
Product Specification

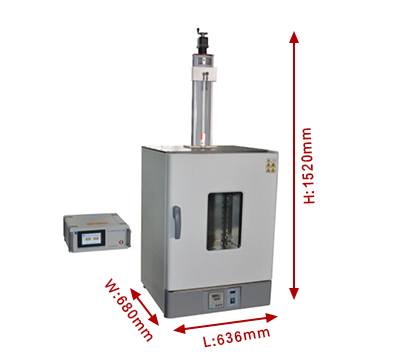

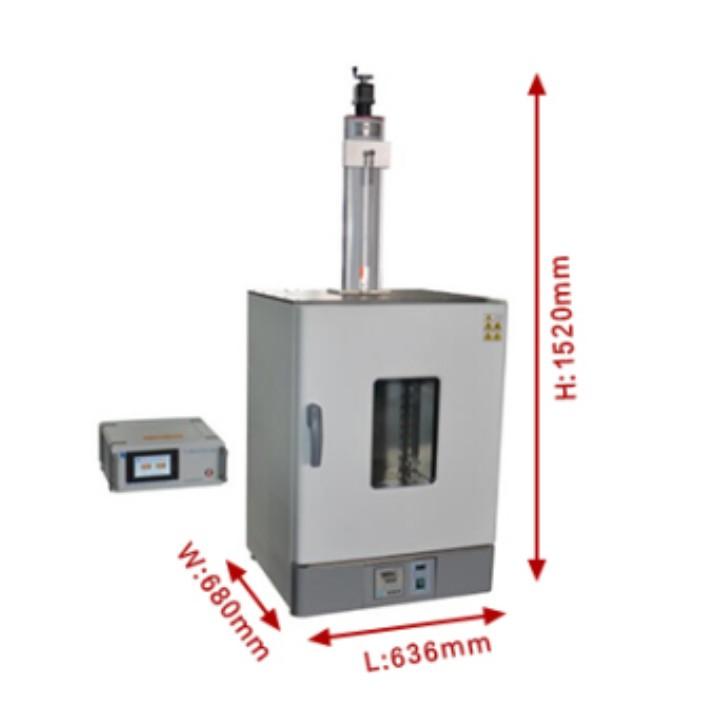

Size: 636mm×680mm×1520mm
Standard Accessories
1. 1 Control box
2. 1 dip tank
