4 Position Angle Dependent Speed Adjustable Dip Coating Unit with LED Display

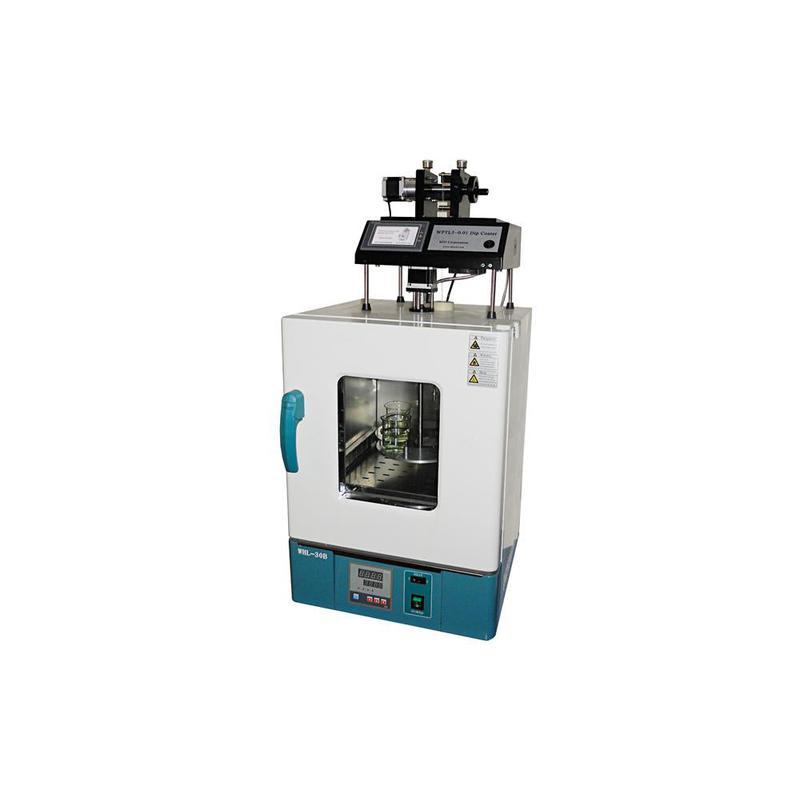

PTL-OV5P (Update from WPTL5-0.01) is a Programmable Dip Coater (1-200 mm/min) designed to prepare multilayer coating up to 5 solutions inside a temperature-controlled oven with touch-screen digital control. The dipping rate, pulling rate, dwell time, and amount of cycles can be set up by the touchscreen controller. It is designed for R&D Lab to prepare various optical or epitaxial films from a liquid solution.

SPECIFICATIONS:

Control Panel	6" LCD color touch screen controller can program: Position of Dipping container: 1 to 5 Dipping/ pulling speed: 1-200 mm/min with accuracy within +/- 0.05% Dipping/ pulling distance Dwell time: ( 999 seconds max) Dipping times: 20 times at each position Power: UL-certified power adapter: 110-240VAC to 24V DC , 90W
Liquid Holder Disk	5 liquid-holder positions. Carry up to 5 kinds of liquid solutions Rotate automatically as programmed for Max. 5 positions and each position can dip max. 20 times. Coating up to 5 layers by automatically rotating liquid-holder disk to dip sample from one solution to another A customized program is available upon request at extra cost
Beakers	Five 150 mL beakers are included for immediate use Dimensions: 60mm(Dia) x 60mm(H)
Programming	Traveling Distance: 0-75 mm Adjustable Dipping/Pulling Speed: 1-200 mm/min Programmable with accuracy within +/- 0.02% Temperature Range: 50-100°C (+/-1°C accuracy) Dwell Time: 0-999 seconds (in liquid time) Dry Time: 0-999 seconds Dipping Position (turning): 1 - 5 positions (Max. 5 positions) Dipping times: Max. 20 times (dipping in each position) Note: Each beaker position shares the same programming parameters.
Sample Holder	Up to 2 samples can be carried sliding up and down through two sample clamp
Oven	Working Voltage: 208-240V AC (110V version is available via transformer) Max. Power Consumption: 600W Chamber Dimensions: 254mm(L) x 254mm(W) x 280mm(H) Inner Material: Stainless Steel Outside Dimensions: 406mm(L) x 406mm(W) x 610mm(H)
Compliance	CE Certified NRTL or CSA certification is available upon request
Application Notes	In order to get better film coating, the substrate shall be treated with a plasma cleaner (Please click on the first picture below for more information) Use an ultrasonic processor to disperse nano powder or homogenize the solution to get better coating (Please click on the second picture below for more information)
