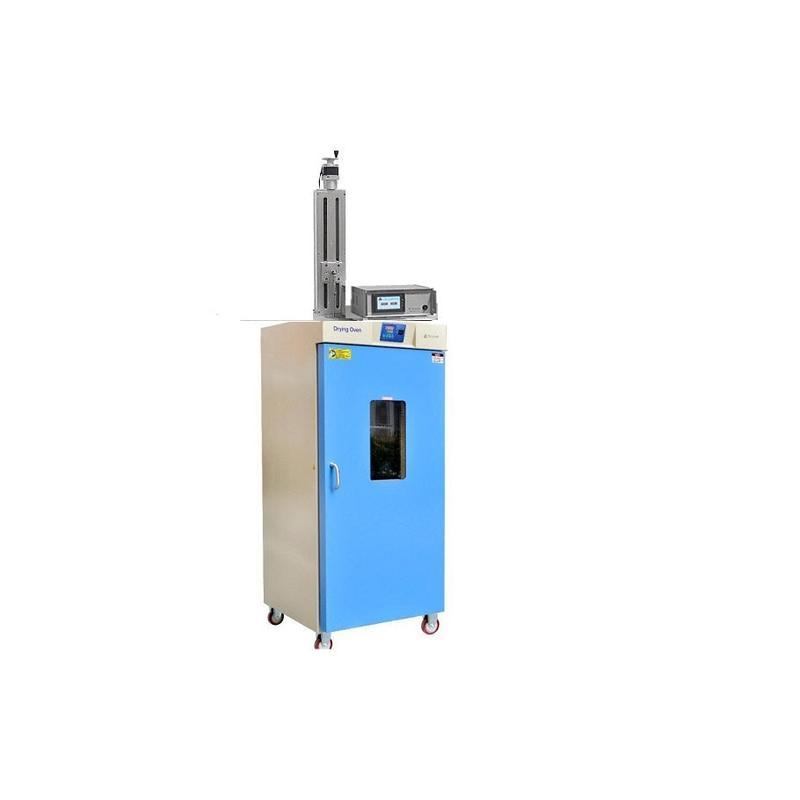

3500W Stainless Steel Adjustable Dip Coater with Temperature Chamber

PTL-MMB02-500 is a Programmable Dip Coater (1 - 200mm/min) with a 420L drying oven. It is designed to accommodate the substrates up to 20"x 20" with fully programmable dipping/pulling speed, dwell time, and amount of cycles. The ball screw pulling system offers smooth vibration-free traveling in both directions. A standard polypropylene dip tank is included within the temperature-controlled drying oven to hold the liquid solution up to 210°C.

SPECIFICATIONS:

Control Panel	Working Voltage: 110-240V AC Max. Power Consumption: 50W Detachable Digital Controller offers flexibility A programmable temperature controller, Forced air fan power adjustor, Temperature limit & alarm indicator, and Incubate, and dry function switch are included. (Please see the second picture below for details)
Traveling Distance	0-550 mm Adjustable
Dipping/Pulling Speed	1-200 mm/min Adjustable
Temperature	100°C (+/- 2°C accuracy)
Solution Container	One Polypropylene dip tank is included with inside dimensions of 600L x 600 H x 25 W ( mm )
Max. Sample Size	20" x 20"
Max. Sample Weight	10 kg
Dipping/Pulling Motor	Stepping Motor
Oven	Working Voltage: 208-240V AC Max. Working Temperature: 100°C (+/- 2°C accuracy) Max. Power Consumption: 3500W Temperature control: Digital PID controller with +/-1 oC Chamber Dimensions: L 640 mm x W 585 mm x H 1355mm - 420Liters Inner Material: Stainless Steel
Compliance	CE Certified NRTL or CSA certification is available upon request at the extra cost
