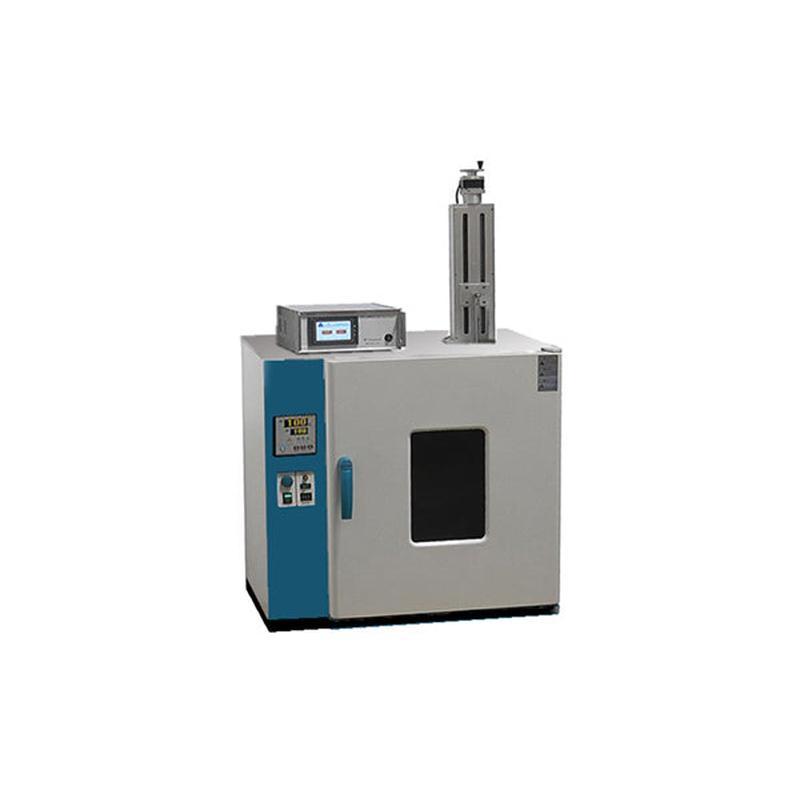

Large Size 5-position Programmable Rotary Dip Coater 225L Dry Oven
PTL-OV5P-L 5-position die coater is suitable for large sample up to 10" x 3". The coating process involves one sample each time to be selected to coat out of 5 containers which usually contain 5 different types of the coating solution. The user can write a coating program in touch screen control and monitor the status from it. The try oven is controlled by a digital PID temperature controller. It can be set to dry the sample after coating without the hand-in process and significantly save the time consuming ensure the operational consistency.
SPECIFICATIONS:
Structure
|
|
Rotary dipping stage
|
The rotary dipping stage has five slots to place coating solution containers. It is controlled by the program to send each container sequentially in a position for sample coating. According to the program which user can coat their sample with one or multiple layers of coating at one go. |
| Touch screen controller |
6" color touch screen controller
|
| Travelling Distance | 300 mm max. |
| Dipping/Pulling Speed | 1-200 mm/min Adjustable |
| Max. Sample Size | 10" x 3" |
| Max. Sample Weight | 4 kg |
| Oven |
|
| Compliance |
CE Certified NRTL or CSA certification is available upon request at the extra cost |
