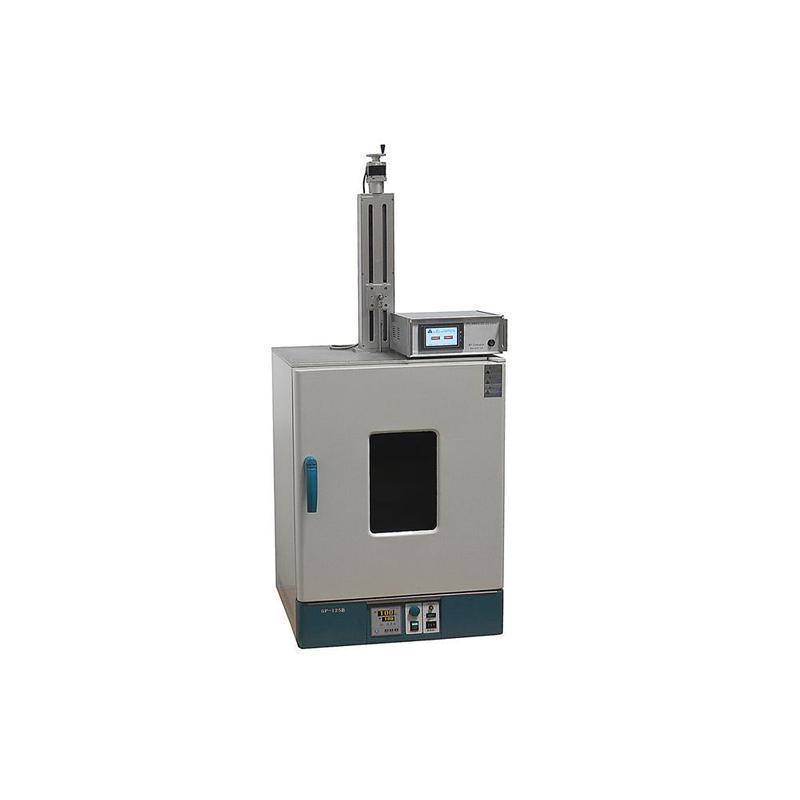

PTL-MMB02-200 is a CE Certified Millimeter Grade Desktop Programmable Dip Coater (1 - 200mm/min) with a 124L drying oven. It is designed to accommodate the substrates up to 16"x 9" with fully programmable dipping/pulling speed, dwell time, and amount of cycles. The ball screw pulling system offers smooth vibration-free traveling in both directions. A standard polypropylene dip tank is included within the temperature-controlled drying oven to hold the liquid solution up to 100°C.
SPECIFICATIONS:
Control Panel
|
-
Working Voltage: 110-240V AC
-
Max. Power Consumption: 50W
-
Detachable Digital Controller offers flexibility
-
Programmable temperature controller, Forced air fan power adjustor, Temperature limit & alarm indicator, Incubate and dry function switch are included. (Please see the second picture below for details)

|
|
Traveling Distance
|
0-250 mm Adjustable
|
|
Dipping/Pulling Speed
|
1-200 mm/min Adjustable
|
|
Max. Working Temperature
|
100°C (+/- 1.5°C accuracy)
|
Solution Container
|
-
One stainless steel trough is included with inner dimensions of 17.5''(W) x 2''(D) x 9.75"(H)
-
Optional: temperature-controlled recirculating pump for the coating slurry can be fed through the chamber at an extra cost.
|
|
Max. Sample Size
|
16" x 9"
|
|
Max. Sample Weight
|
5 kg
|
|
Dipping/Pulling Motor
|
Stepping Motor
|
|
Oven
|
-
Working Voltage: 120 VAC or 208-240 VAC
-
Max. Power Consumption: 2300W
-
Chamber Dimensions: 500mm(L) x 450mm(W) x 550mm(H)-- 124 Liter
-
Inner Material: Stainless Steel
|
|
Compliance
|
CE Certified
NRTL or CSA certification is available upon request at the extra cost
|
|
Application Notes
|
-
In order to get better film coating, the substrate shall be treated by plasma cleaner (Please click on the first picture below for more information)
-
Use an ultrasonic processor to disperse nano powder or homogenize solution to get better coating (Please click on the second picture below for more information)
|
