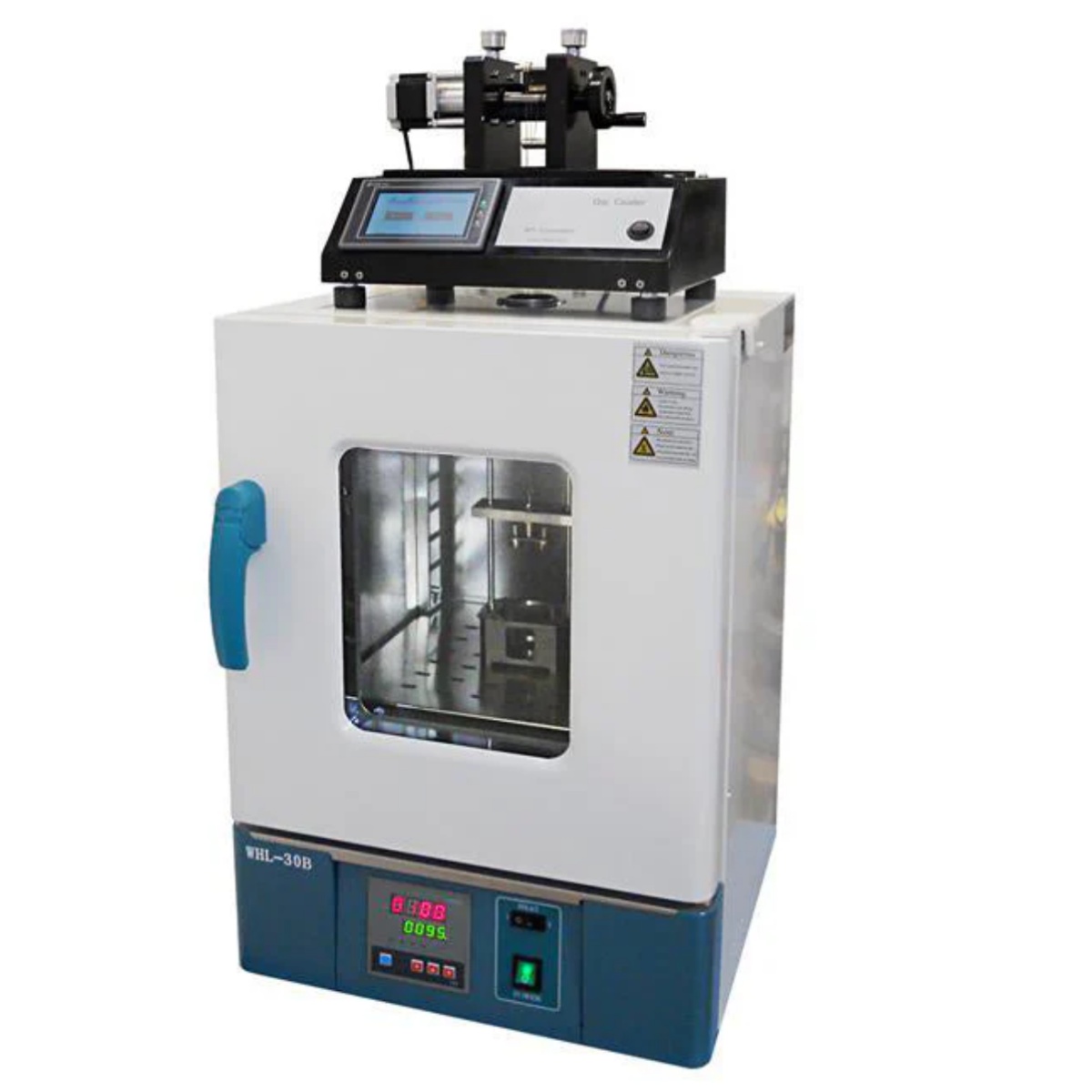

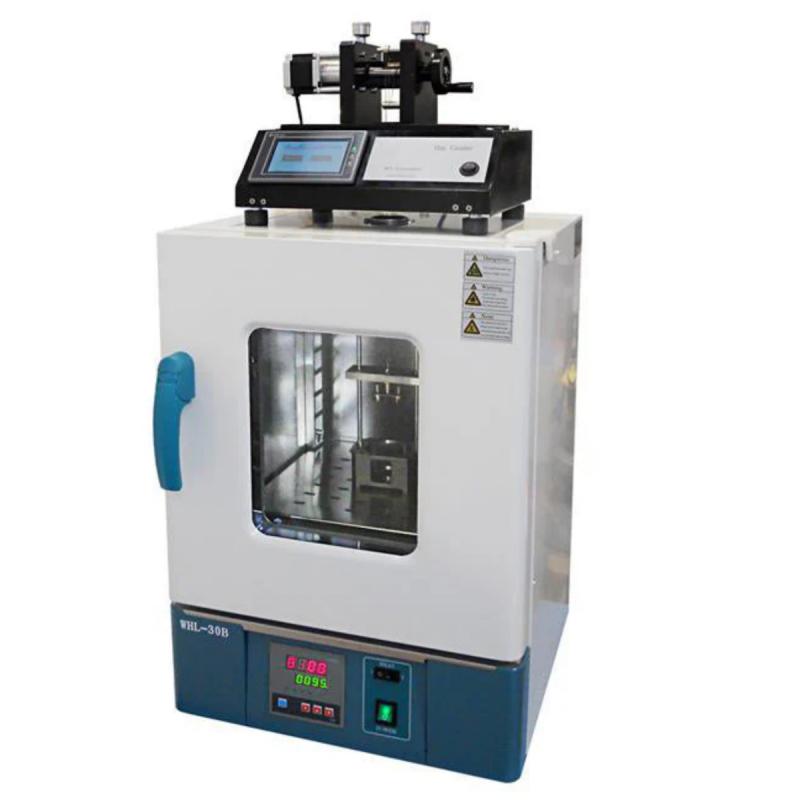

Nano-Level Constant Temperature Dip Coater With Oven

Product Introduction

The LITH-KJ-01NO Nano-Level Constant Temperature Dip Coater is a CE-certified precision instrument designed for liquid-phase dip-coating experiments at the nanometer scale. It is an indispensable tool for thin-film growth research in academic and industrial laboratories.

This system features a PLC-programmable control unit paired with a high-precision stepper motor, ensuring smooth and accurate vertical motion via a suspended wire transmission mechanism. Samples are immersed in liquid-phase thin-film materials and withdrawn at controlled speeds to deposit uniform coatings with adjustable thickness.

Key operational modes:

· Single Cycle: One immersion/withdrawal sequence.

· Full Cycle: Programmable repeated cycles (1–20×).

User-defined parameters include:

· Lifting/immersion speeds (1–500 nm/s)

· Dwell time (1–999 s)

· Drying time (1–999 s)

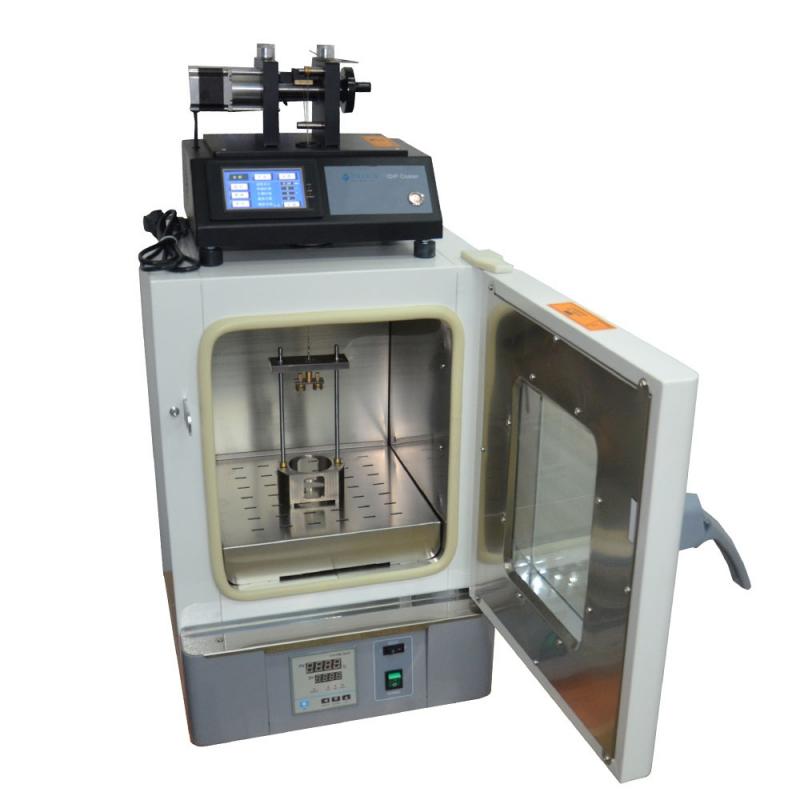

The integrated constant-temperature heating chamber (RT to +100°C) ensures process stability. Compact and user-friendly

Key Features

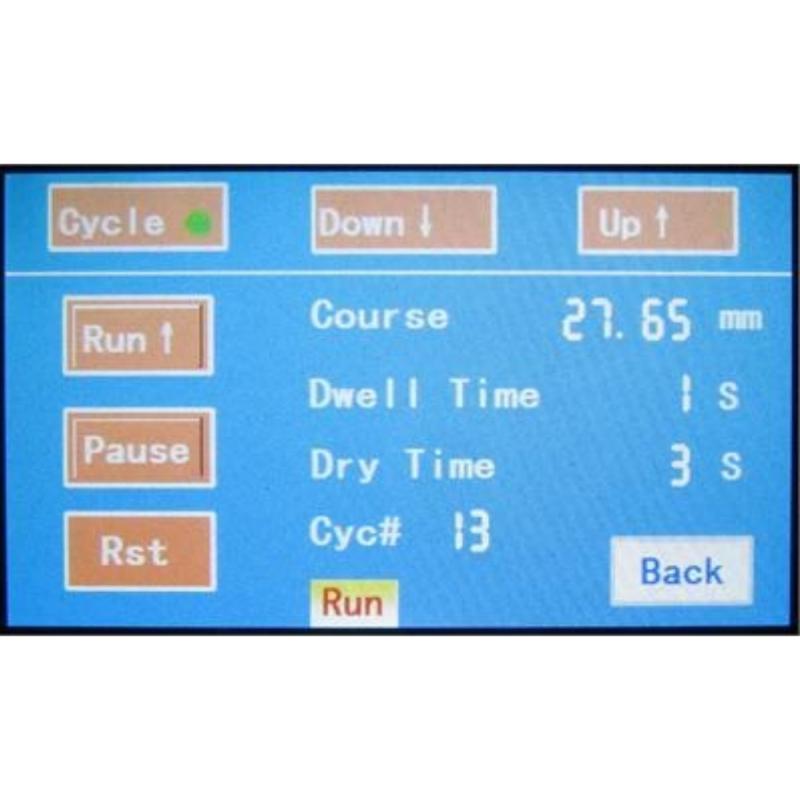

· 4.3-inch color touchscreen with an intuitive interface, suitable for beginners.

· Compact design, high cost-performance ratio, and space-saving for laboratory use.

· PLC-controlled high-precision stepper motor drive with suspended wire transmission for vibration reduction.

Technical Parameters

Category	Specifications
Model	Lith-KJ-01NO
Installation Requirements	1. Power Supply: AC220V 50/60Hz, 10A standard socket with proper grounding.
	2. Ambient Conditions: Temperature 25°C ±15°C, Humidity 55%Rh ±10%Rh.
Main Parameters	1. Operating Voltage: DC24V 3.75A (Included: AC100~240V power adapter)
	2. Power Consumption: 50W
	3. Type: Programmable—Constant Temperature (with heating chamber)
	4. Drive Motor: High-precision stepper motor
	5. Speed Range: 1–500nm/s
	6. Dwell Time: 1–999s
	7. Drying Time: 1–999s
	8. Lifting Stroke: 1–75mm
	9. Coating Cycles: 1–20 times
	10. Max Immersion Depth: ≤60mm
	11. Load Capacity: <100g
	12. Sample Substrate Size: 75mm × 25mm × 2.5mm (2 pieces simultaneously)
	13. Control Interface: 4.3-inch color touchscreen
	14. Heating Chamber Specifications:
	- Operating Voltage: AC220V 50/60Hz
	- Rated Current: 3.6A
	- Heating Power: 0.8KW
	- Temperature Range: RT to +100°C
	- Temp. Control/Setting: Dual-digit PID display, 4-button setting
	- Timer: 0–9999 minutes/hours
	- Internal Dimensions (Capacity): 310mm × 310mm × 310mm (30L)
	- External Dimensions: 428mm × 500mm × 723mm
	15. Product Specifications:
	- Dimensions: 428mm × 500mm × 995mm
	- Weight: ≈50kg (including heating chamber)
Notes	1. Default power adapter specifications: Input: AC100-240V 50/60Hz, Output: DC24V 3.75A. Actual power supply must match the label on the device.
	2. Customizable AC110V 50/60Hz heating chamber available.
