Light Laboratory Film Desktop Dip Coater with Variable Speed (1-200 mm/min)

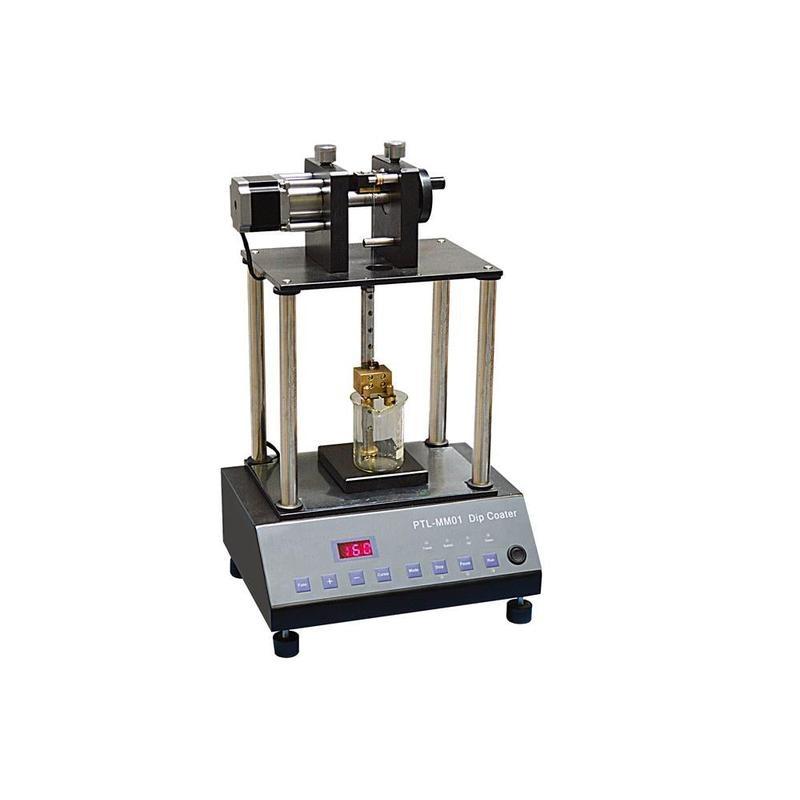

PTL-MM01 is a CE certified Desktop Dip Coater designed for R&D Lab to prepare various optical or epitaxial films from a liquid solution.

SPECIFICATIONS:

Dipping/Pulling	Dipping/Pulling Speed: 1-200 mm/minute Adjustable via a digital panel Travel Distance: 0-200mm Adjustable via a digital panel
Voltage	DC 24V A 110 - 220V AC (50/60 Hz) to 24VDC NRTL certified power adapter is included.
Sample holder	Two screw sample clips are installed in the sample holder to carry the samples sliding up and down through one precision ball bear guide rod (ball bear guide rod updated from Sep. 6, 2014)
Beaker Holder	The beaker which contains the coating material (coating solution) will be placed into the slot of the beaker holder
Solution container	One 150ml beaker is included
Max. Sample size	50mm(L) x 25mm(W) x 2.5mm(T)
Sample weight	Less than 250g
Dipping/Pulling Motor	DC Stepping motor
Certificate	CE Certified
Application Notes	In order to get better film coating, the substrate shall be treated by plasma cleaner (Please click on picture 1 below for more information) Use an ultrasonic processor to disperse nanopowder or homogenize solution to get better coating (Please click on the second picture below for more information) Pic. 2 Extension frame will support coating for a larger sample (Please click on the third picture 3) Click to learn about the Fabrication of colloidal self-assembled monolayer (SAM) using monodisperse silica and its use as a lithographic mask. You put the coater into a vacuum glove box for coating under vacuum ( Click Pic. 4 to order ) Pic.1 Pic. 2Pic. 3
