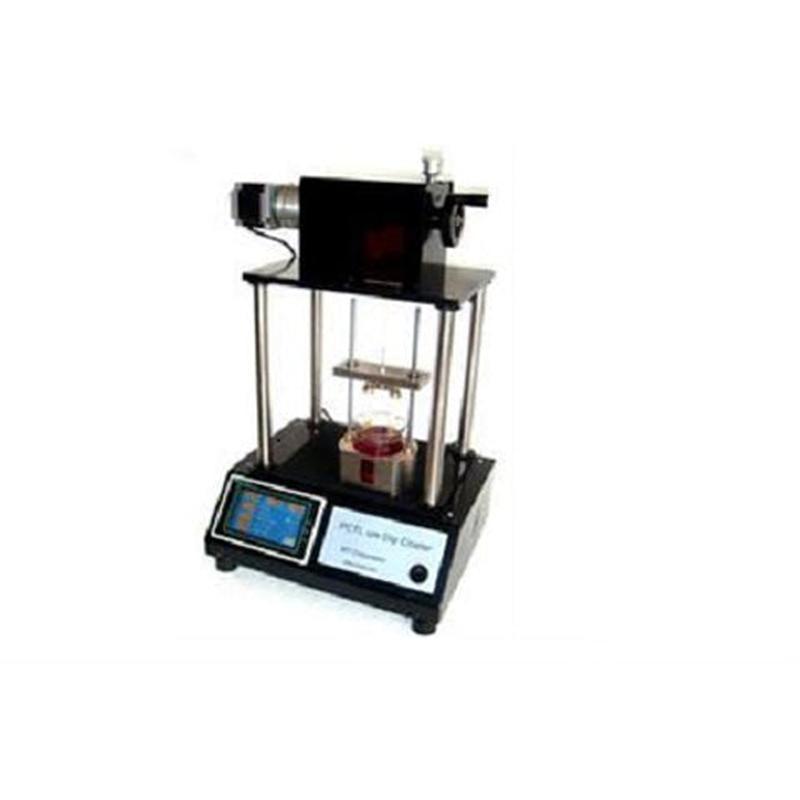

PTL-MM02 (upgraded from PCTL0.01) is a Desktop Programmable Dip Coater with a color touch screen controller. It is designed for R&D Lab to prepare various optical or epitaxial films from a liquid solution. Dipping rate, pulling rate, dwell time, and life cycle can be set up by touch screen. The equipment can be used under Ar gas glovebox.

Dipping/Pulling speed	1-200 mm/minute Adjustable  Accuracy: +/- 0.05% Note Higher Dipping/pulling rate up to 1000mm/min is available upon request, additional cost ($1800) will apply.
Control Panel	6" LCD color touch screen controller can program:  Dipping/ pulling speed:  1-200 mm/min with accuracy within +/- 0.05% Dipping/ pulling distance: 75mm Dwell time:  ( 999 seconds max) Cycle time:   20 times max.
Voltage	DC24V, 90W max A universal power adapter for 100-240 VAC input voltage is included. The equipment can be used under Ar gas glovebox.
Sample holder	Two screw sample clips are installed in the sample holder in order to carry the samples sliding up and down through two guide rods
Beaker Holder	The beaker which contains the coating material (coating solution) will be placed into the slot of the beaker holder
Solution container	One 150ml beaker is included
Max. Sample size	50mm(L) x 25mm(W) x 2.5mm(T)
Sample weight	less than 250g
Dipping/Pulling Motor	Stepping motor
Product dimension	340mm(L) x 360mm(W) x 540mm(H)
Certificate	CE Certified NRTL or CSA certification is available upon request at the extra cost
Warranty	One year limited with lifetime support
Operation Demo Video
Application note	In order to get better film coating, the substrate shall be treated by plasma cleaner (Please click on picture  1 below for more information) Use an ultrasonic processor to disperse nanopowder or homogenize solution to get better coating (Please click on the second picture below for more information)  Pic. 2 Extension frame will support coating for a larger sample (Please click on the third picture 3)  Click to learn about the Fabrication of colloidal self-assembled monolayer (SAM) using monodisperse silica and its use as a lithographic mask. You put the coater into a vacuum glove box for coating under vacuum ( Click Pic. 4 to order )           Pic.1            Pic. 2     Pic. 3  Pic. 4
Net Weight	45 lbs
Shipping Weight	100 lbs

STANDARD PACKAGE:
