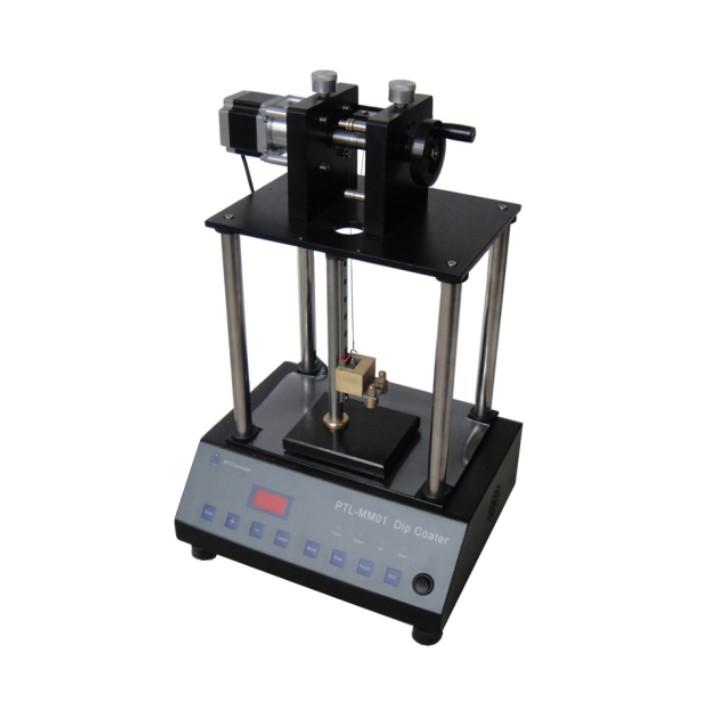

Laboratory Lift and Pull Film Coater Device with Single Board Machine




Product Description

PTL-MM01 lift and pull film coater can make the sample impregnated in liquid film material for a period of time and then lifted out through lifting wire, so as to grow a certain thickness of film on the surface of the sample. PTL-MM01 film lifting and coating machine adopts single board machine to control the lifting speed of lifting wire, so that the lift can run smoothly and accurately. The sample can be impregnated in the liquid film material by manual control and then automatically lifted back; or the sample can be impregnated in the liquid film material by automatic control and manually lifted back; the impregnation and drying time can be controlled according to individual needs. The machine can also be equipped with a thermostatic drying oven with temperature up to 200℃ as needed to make the film growth process under a constant temperature. PTL-MM01 lift and pull film coater can save laboratory space cause its compact size; it is suitable for beginners for its easy operation and easy to clean up. Therefore, the machine is widely used in the laboratories of colleges and universities, research institutes and enterprise units.



Main features:

1. Can be equipped with up to 200℃ thermostat, providing a stable thermostat environment for dipping and lifting film coating.

2. It has passed CE certification.

3. Adopt the technology of overhanging motor for vibration damping.

4. Adopts high precision stepper motor.



Technical Parameters:

Product Name

PTL-MM01 lift & pull film coater

Model Number

PTL-MM01

Mounting Conditions

This equipment is required to be used under 1000m above sea level, 25℃±15℃ and 55%Rh±10%Rh humidity.

1. Water: without

1. Electricity: AC220V 50Hz, must be well grounded

2. Gas: without

3. Working station: size 800mm × 600mm × 700mm, load capacity of 200kg or more

5. Ventilation device: without

Main Parameters

1. Power supply: 220V

2. Power50W

3. Lifting speed: 1 mm/min-200mm/min

4. Effective impregnation length: 60

5. Dip and dry time setting: 1-999s

6. Times of lifting1-20 times

7. Sample size: 75mm×25mm×2.5mm

Product Specification

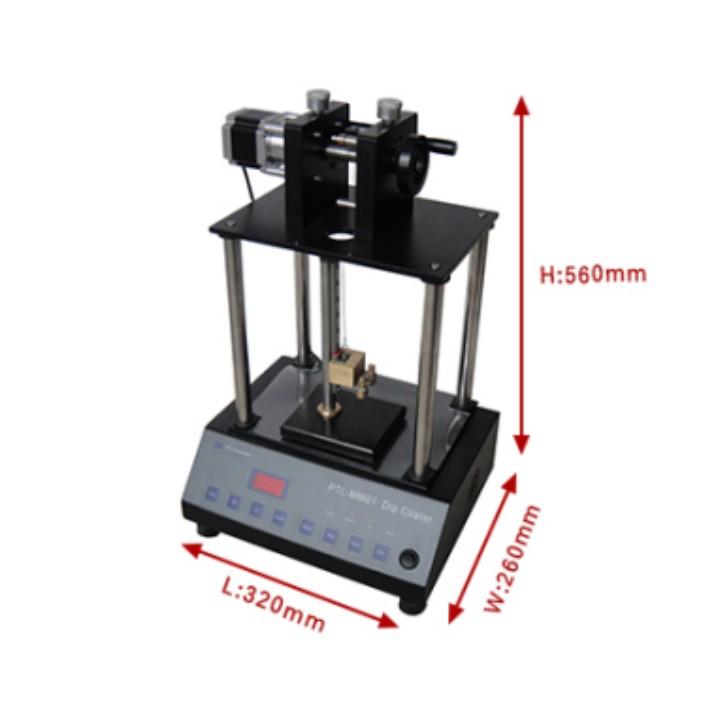

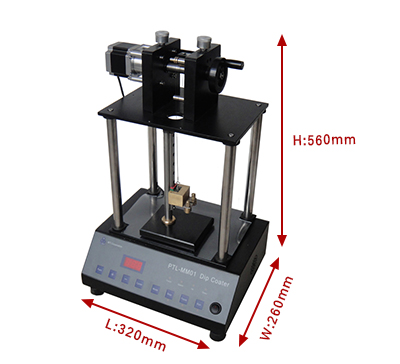

Size: 320mm x 260mm x 560mm.

Weight: 18kg

Standard Accessories

1. 1 set of anti-swing control seat

2. 1 set of sample fixture

3. Loading cup 1

4. 3 pieces of lifting wire

Optional Accessories

1. Quick sample fixture

2. Lift wire


Lab Lift and Pull Film Coater
