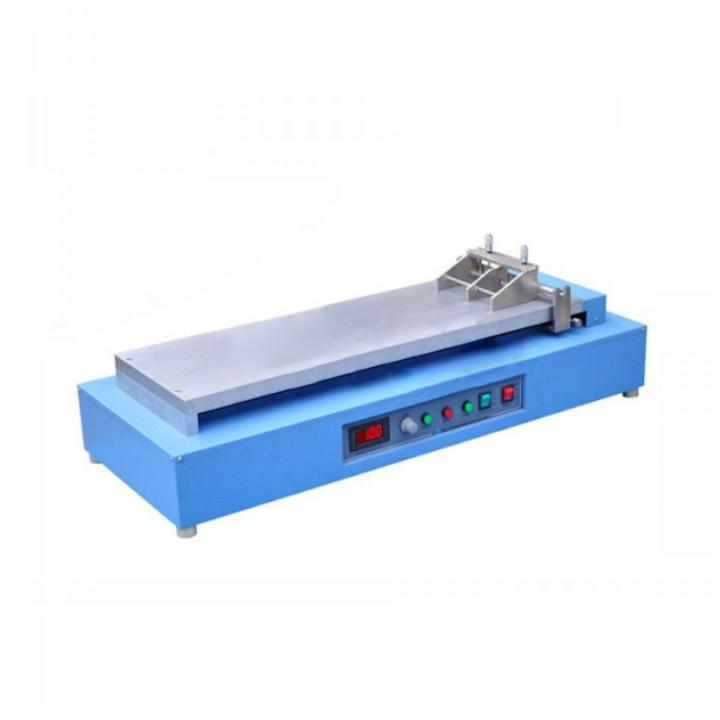

MSK-AFA-L800 800mm Streamer Coating Machine for Making 18650 Columnar Battery
Product overview:
MSK-AFA-L800 is an 800mm long cast coating machine, including vacuum sucker and oil-free vacuum pump, with micron adjustable scraper can make long thick film.With a unique automatic propulsion device, it can produce smooth coatings on any material in the range of 180mm wide and 600-length, making it an ideal tool for low cost development and fabrication of 18650 battery electrode materials.
Product features:
Coating speed: adjustable 0-100 mm/s;
Vacuum sucker: 600mm long x 260mm wide, can firmly adsorb the substrate;
Transverse push rod with micron scraper used;
Adjustable limit switch can set the coating stroke 10-800mm;
Including a 180mm wide micron scraper, can make film 250x500mm;
Technical parameters:
|
Coating power supply |
110 -- 220 V AC ( 50/60Hz) 150W |
|
Stroke speed |
0-80mm/SEC adjustable |
|
Stroke length |
10 - 800mm |
|
Vacuum sucker size |
600mm L x 260mm W |
|
Vacuum pump |
120L/m without oil pump |
|
Film maker |
Adjustable scraper with 180mm wide micron scale (click to select another size scraper) |
|
Maximum film-making area |
180mm wide x 600mm long |
|
Film thickness accuracy |
+/- 0.01mm |
|
Exterior size |
960L x 370W x 240 H, mm |
|
Net weight |
40 Kg |
|
Optional configuration |
An optional vacuum mixer can be used to vacuum stir the slurry to be coated to achieve uniformity during coating;A viscometer can be optional to lock the viscosity of the slurry used in the best coating, so as to maintain the smoothness of each test coating |
