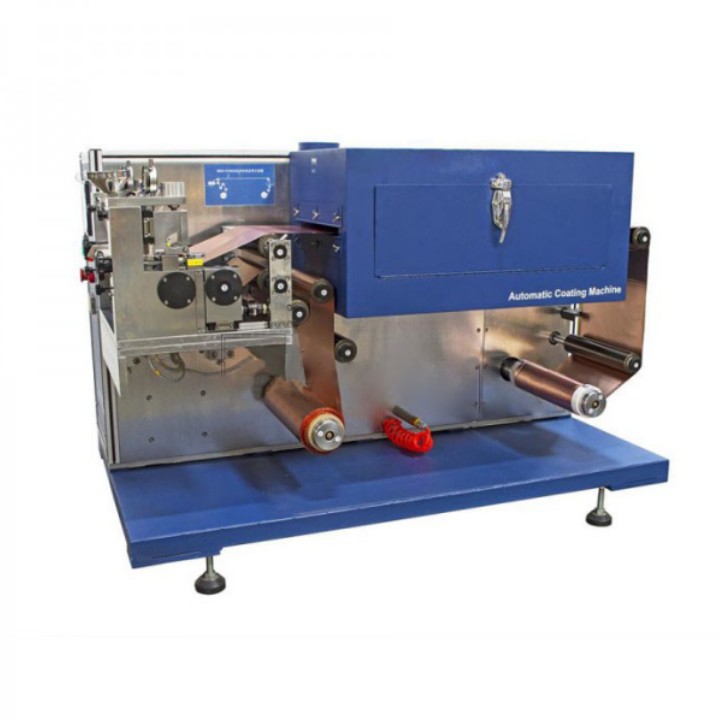

MSK-AFA-EI300 Batch Type Experimental Coater
Product overview:
MSK-AFA-EI300 intermittent experimental coater is a three-roll transfer coater, which can be used for continuous and intermittent coater, and is convenient for the surface coater of various substrates. Especially used in the lithium ion battery industry, the equipment in line with the convenience of researchers to use, at the same time to meet the coating accuracy and consistency is equivalent to the production requirements of the design, excellent drying effect, is lithium ion batteries, super capacitors, nickel batteries and other secondary battery research and development and small test of the ideal choice.
Product features:
Three roll transfer coating, with a wide coating window;
Comma scraper metering, with precision adjustment mechanism, high coating accuracy;
With mixing tank, can be freely switched to achieve continuous and intermittent coating;
The base material closed-loop tension control, stable walking, winding configuration deviation correction device;
Hot air oven, upper and lower double-sided blowing, drying effect is high quality;
PLC control, HMI operation, easy to use;
Optional solvent recovery treatment device;
Technical parameters:
|
Power supply |
Voltage single-phase AC220V±10%(110VAC can be customized), frequency 50Hz/60Hz, power 5KW |
|
Gas source |
0.5-0.8MPa compressed air |
|
Operating environment |
Recommended ambient temperature 25±3℃, humidity 30~90RH, no vibration and electromagnetic interference |
|
Type of coating |
800VA |
|
Guide roll width |
0 to 800W adjustable |
|
Coating width |
40 KHZ plus or minus 10% |
|
Mechanical speed |
Standard welding mold area: 4*4MM standard with two sets of welding head welding base, (used for positive and negative electrode lug welding of lithium battery cell) |
|
Coating accuracy |
For welding pure aluminum tape 0.10mm+ pure aluminum foil 0.012-0.018mm within 20 layers |
|
Coating thickness |
For welding pure nickel tape 0.10mm+ copper foil 0.012-0.018mm welding within 20 layers |
|
Thickness adjustment |
Working part 510*220*290mm; Control box: 500*190*380mm |
|
Coating length |
Single sheet Max.5000mm, white space 10~100mm, accuracy ±0.5mm |
|
Drying unit |
About standard with hot air drying (custom infrared drying and UV curing), single section 800mm long |
|
Drying temperature |
Max. 150±5℃, can be set |
|
Tension control |
Max. 60N |
|
Retract and unwind the winding diameter |
250mm |
|
Accuracy of winding |
+ / - 0.5 mm |
|
Mounting size |
L1600mm*W900mm*H1000mm |
|
Heavy weight |
About 1t |
