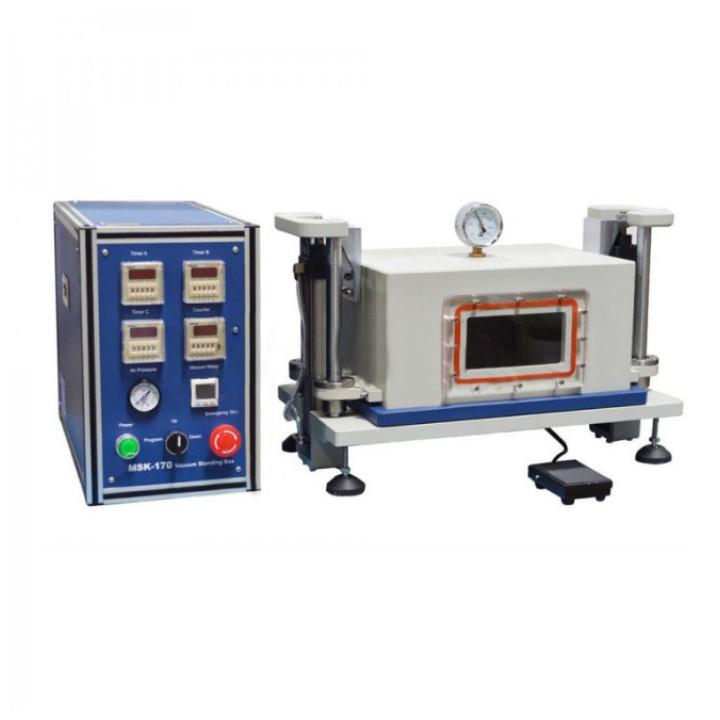

Lab Cylinder Drive Vacuum Standing Box with Front Glass Window

Vacuum Standing Box



Product overview:

MSK-170 vacuum standing box is a kind of equipment which can be used in the manufacture of flexible packaging lithium ion battery and cylindrical lithium ion battery. Its function is to complete the vacuum standing of battery after liquid injection, and promote the electrode plate to absorb the electrolyte.Or it can be used for vacuum static defoaming and vacuum storage of various materials.The device has a split design and the vacuum chamber can be placed in the glove box for use.



Product features:

Bell jar structure, cylinder drive, full welding without leakage;

The vacuum degree can be maintained stably, which can realize the good absorption of the electrode plate to the electrolyte;

Multi-stage cycle vacuum storage, each period of time and the number of periods can be set;

Front glass window design, for researchers to observe the changes of internal products;

Control box and static box separate design, the static box can be placed in the glove box operation;



Technical parameters:

Power supply

Voltage single-phase 220VAC±10%(110VAC can be customized), frequency 50Hz/60Hz, power 50W

Air source

0.5-0.8MPa compressed air

True empty source

Max. -99Kpa

Work space

L326 *H148mm* W206

Standing time

You can set 0-99.99s (0S-99.99H)

Aeration time

You can set 0-99.99s (0S-99.99H)

Number of cycles

You can set (0-9999)x100

Pressure range

100 to -100 kpa

Mounting dimensions

Control case L460×W220×H340mm, standing case L470×W330×H420mm

Weight

About 40Kg
