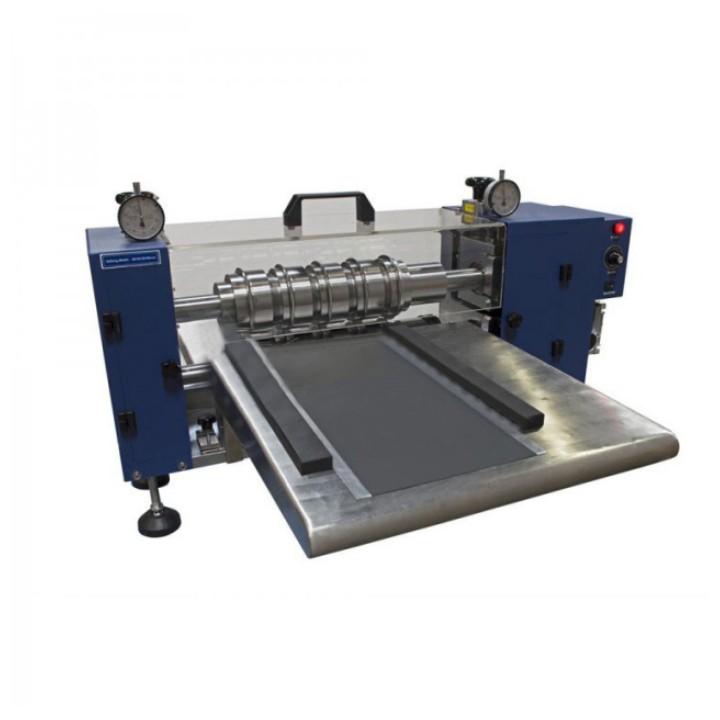

MSK-CSE-300 Electric Slabbing Machine
Product overview:
MSK-CSE-300 electric slitting machine can be applied to the precision slitting process of positive and negative electrode pieces of lithium ion batteries.Chip feeding, upper and lower round knife slitting, electric drive, slitting width can be adjusted according to the adjustment sleeve.
Product features:
Sheet feeding, upper and lower round knife cutting mode;
Ultra-fine alloy tungsten steel blade, good slitting effect, long service life;
The thickness range of slitting material is wide, and the precision adjustment of cutting quantity is obvious.
Motor drive, feed oriented configuration, slitter burr small;
Slitter width can be changed interval sleeve adjustment, can also be configured with spare tool shaft way to achieve;
Open type cutter shaft is fixed, the integrity of the equipment is good, convenient operation;
Technical parameters:
|
Power supply |
Single-phase voltage 100~240VAC±10%, frequency 50Hz/60Hz, power 100W, less than 4Ω grounded |
|
Operating environment |
Recommended ambient temperature 25±3℃, humidity 30~90RH, no vibration and electromagnetic interference |
|
Stripe method |
Single piece roll cutting |
|
Cutter type |
Upper and lower round knife to cut |
|
Slicing blade |
Superfine grained alloy tungsten steel, diameter φ100 mm |
|
Strip width |
Adjustment range 20 to 230mm, can be customized to 20 to 280mm |
|
Width adjustment |
Replacement sleeve adjustment, standard 56/56/58/58 four pieces |
|
Cut thickness |
From 100 to 300 microns |
|
Burr condition |
25 microns or less |
|
Knife amount eaten |
0.2~0.4mm adjustable, dial indicator display |
|
Stripe speed |
Max. 4m/min |
|
Mounting dimensions |
L870mm*W970mm*H450mm |
|
Heavy weight |
About 100Kg |
