Cylindrical Battery Slot Roller Roll Grooving Machine
Product overview:

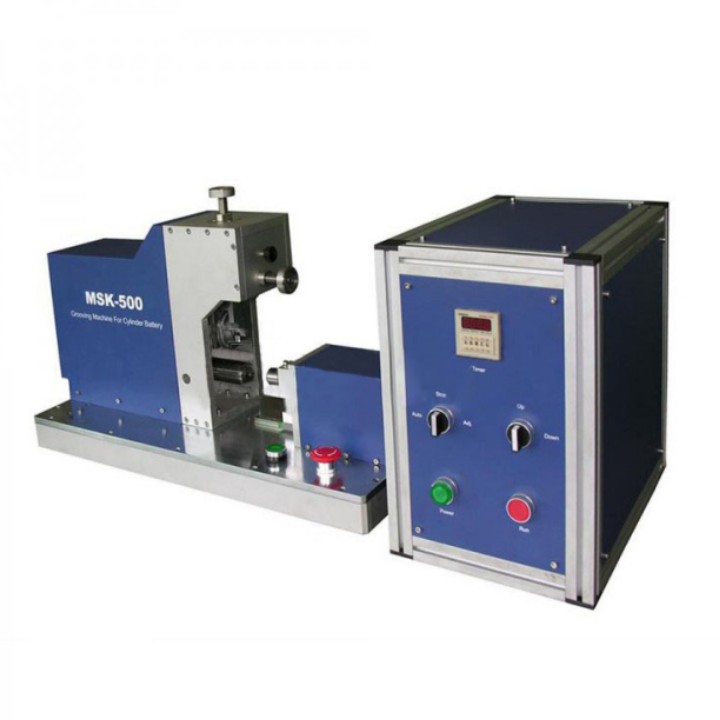

MSK-500 cylindrical battery groove rolling machine is a kind of equipment which can be used in cylindrical lithium-ion battery groove rolling process. The replacement of the groove mold can be used in various specifications of cylindrical battery production.
Product features:
Replaceable hob, high precision rolling groove, good dimensional stability;
Standard with 18650, 26650 mold, mold replacement to achieve different types of cylindrical battery rolling groove;
The depth of the rolling groove is adjustable, with the function of battery axial deformation compensation;
Main engine and control box separate design, easy to operate and use;
Technical parameters:
|
Power supply |
Voltage single-phase 220VAC±10%(110VAC can be customized), frequency 50Hz/60Hz, power 200W |
|
Air source |
0.5-0.8MPa compressed air |
|
Operating environment |
Recommended ambient temperature 25±3℃, humidity 30~90RH, no vibration and electromagnetic interference |
|
Depth of rolling groove |
1.2 to 2.0mm adjustable |
|
Rolling groove width |
1.1~1.5mm, can be designed according to request |
|
Machining accuracy |
+ / - 0.1 mm |
|
Hob life |
≥1 million cycles |
|
Working beat |
About 8pcs/min |
|
Mounting size |
L600mm*W230mm*H350mm |
|
Weight |
About 55Kg |
