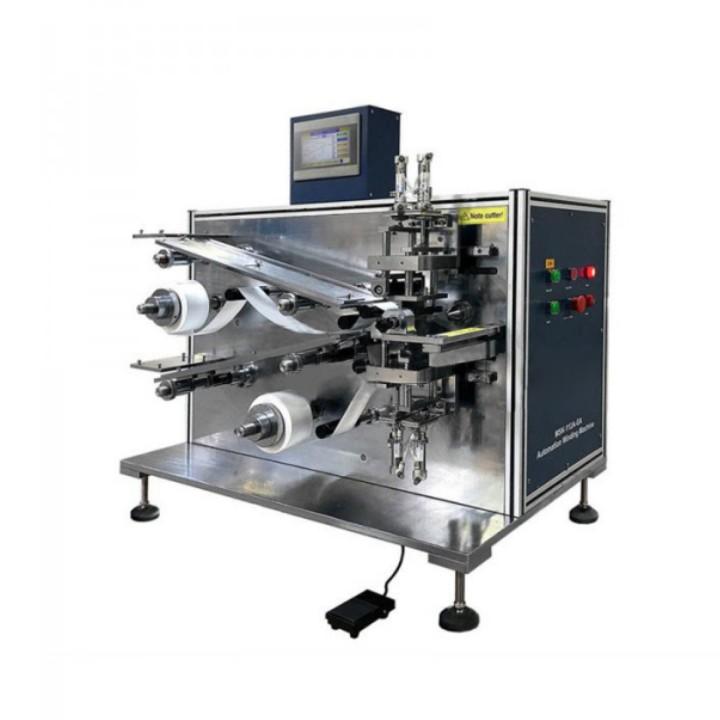

Lab Semi-Automatic Cylindrical Winder Winding Machine

Semi-Automatic Cylindrical Winding Machine



Product overview:

The MSK-112A-EA semi-automatic cylindrical machine is a machine that can be applied to the winding process of cylindrical lithium-ion battery poles. Compared to manual winding machines, this machine has high winding efficiency, good winding neatness and a wide range of applicable cell sizes, making it more suitable for various cylindrical cell winding needs in lithium battery laboratories.



Product features:

Single riser structure, diaphragm paper winding and loading, passive tension control, adjustable tension size.

Manual placement of poles, jig assisted positioning, vacuum assisted suction to ensure neatness of winding.

winding speed and diameter can be freely set, can wind cells in the diameter range of 14-32mm.

Automatic pulling of the isolation film, automatic cutting, manual application of adhesive tape (automatic tape dispenser provided).

Compatibility design with a wide range of cell size adjustment.

PLC control, touch screen setting, foot switch operation, all parameters can be set.



Technical parameters:

Power supply

Voltage single phase AC220V±10% (110VAC can be customized), frequency 50Hz/60Hz, power 1KW

Air supply

0.5~0.8MPa compressed air

Usage environment

Recommended ambient temperature 25±3°C, humidity 30~90RH, free from vibration and electromagnetic interference

Winding method

Roll diaphragms, sheet poles

Winding needle form

Counter-inserted rolled needle, standard with 3.5 mm diameter.

Winding size

Diameter 14-32mm, length 25-70mm

Winding accuracy

Better than 0.5mm neatness

Guide slot length

1200mm, pole piece can be slightly longer

Film cutting method

Automatic cut-off

Winding speed

Settable within 150g

Diaphragm coil diameter

Max. 300r/min can be set on the touch screen

Adhesive tape mount

Max. 250mm

Film cutting method

Supply of automatic tape dispensers, manual tape application
