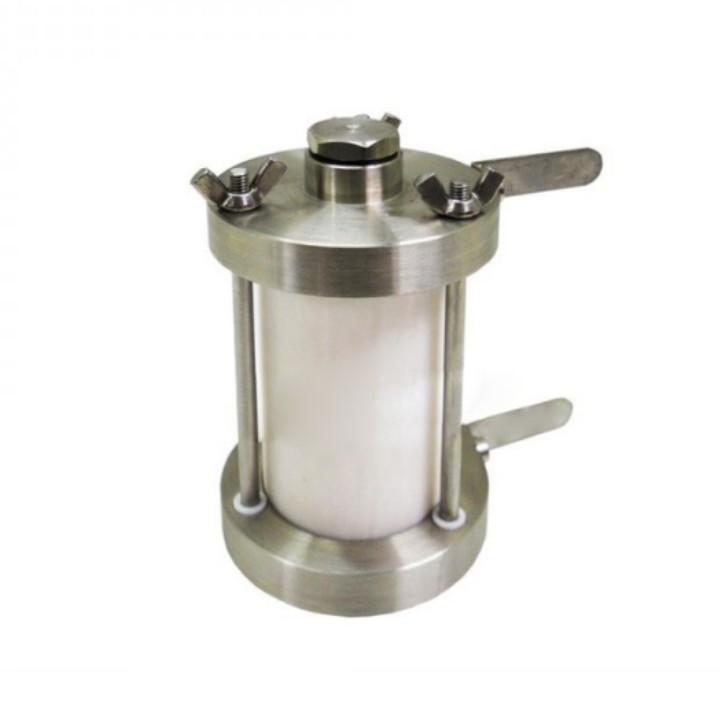

Small Automatic Cutting Detachable Column Battery Measuring Kit
Product overview:
This product is used for handmade 18650 rechargeable battery and electrode material research, flexible and convenient, adjustable thickness.
Product features:
Structure made of stainless steel and teflon want to combine;
Easy to disassemble;
Small size, can be operated in the glove box;
Optional accessories:
Separate battery research kits of various sizes can be made according to customer requirements
Technical parameters:
|
Power supply |
Voltage single-phase AC220V±10%(110VAC can be customized), frequency 50Hz/60Hz, power 1KW |
|
Air source |
0.5 to 0.8MPa compressed air |
|
Operating environment |
Recommended ambient temperature 25±3℃, humidity 30~90RH, no vibration and electromagnetic interference |
|
Winding method |
Coil diaphragm, chip type pole piece |
|
Reel stitch form |
Coupler coil, standard diameter 3.5mm; |
|
Winding size |
14-32mm diameter and 25-70mm length |
|
Accuracy of winding |
Uniformity is better than 0.5mm |
|
Length of guide |
1200mm, pole piece can be slightly longer |
|
Film cutting method |
Automatic cutting |
|
Winding speed |
Up to 150g can be set |
|
Diaphragm winding diameter |
Max. 300r/min can be set on touch screen |
|
Tape mount |
Max. 250mm |
|
Film cutting method |
Provide an automatic taping machine for manual taping |
