Light Hydraulic Cylindrical Battery Sealer Sealing Machine
Product overview:

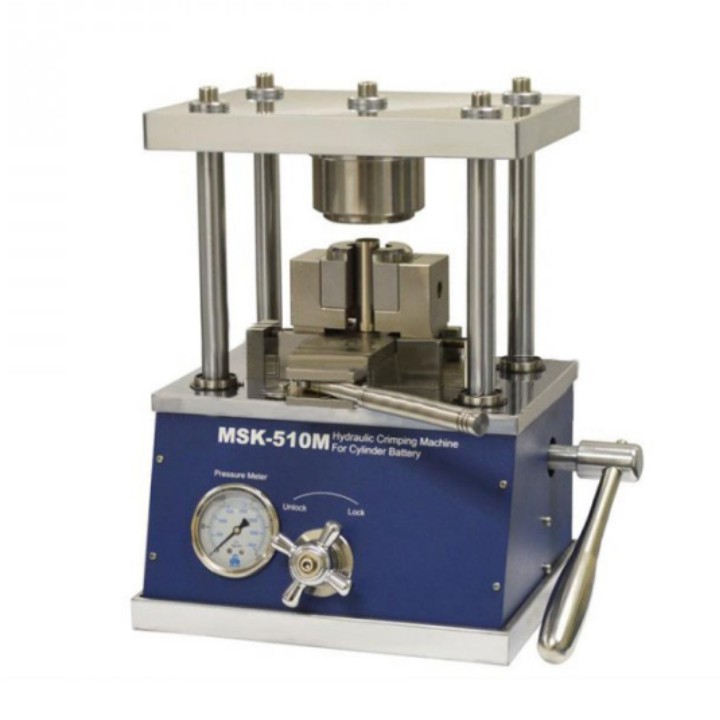

MSK-510M cylindrical battery sealing machine is driven by hydraulic jack to realize the packaging process of cylindrical battery.Standard configuration mold can be used for 18650 battery sealing, after changing the mold can be used for other size cylinder battery (such as 26650, etc.) sealing.
Product features:
The hydraulic cylinder drives the mold to seal the cylinder battery, and the operation of the strengthening handle saves labor;
Compact and light, can be conveniently placed in the glove box for use;
Precision mold design to ensure the sealing molding accurate and reliable, sealing quality is excellent;
Pure manual operation, no need for electricity and gas, easy to use;
Technical parameters:
|
Sealing pressure |
50kg/cm2~80kg/cm2, factory setting cylinder battery packaging recommended pressure |
|
Operating handle |
Button battery seal operating handle pressure less than 6Kg |
|
Sealing mold |
Standard 18650 package mold, optional or additional specifications |
|
Safety oil valve |
It has been set before leaving the factory. In order to prevent damage to the equipment, please appropriately adjust and increase the unloading pressure |
|
Installation dimensions |
L230mm*W180mm*H360mm |
|
Weight |
About 48Kg |
