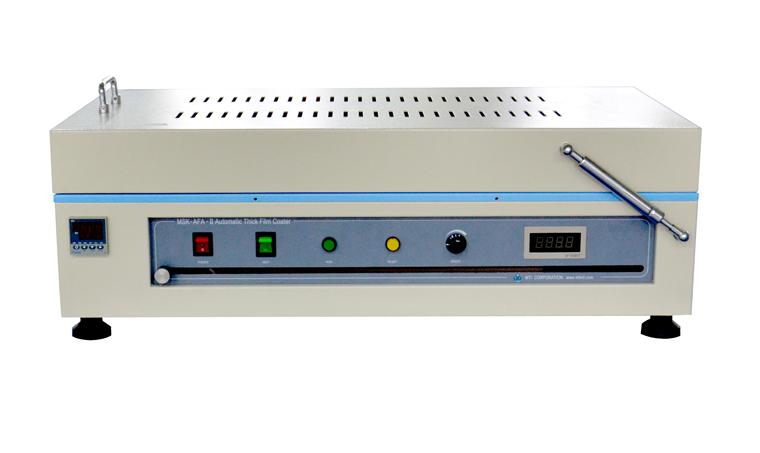

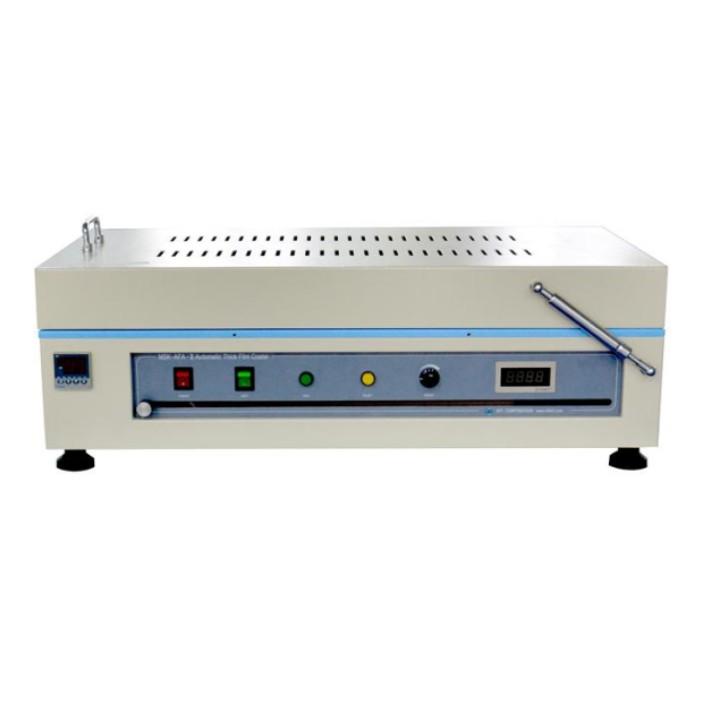

Lab Small Cast Automatic Drying Film Coater
Product Name: Lab Small Cast Automatic Drying Film Coater
MSK-AFA-IID small cast automatic drying film coater is mainly used for laboratory coating liquid-like or colloidal film use. The equipment adopts stepless variable speed motor to precisely control the film coating speed to achieve the purpose of advancing the squeegee for film coating at an even speed, and the squeegee is made of full stainless steel with constant weight, which can improve the consistency and uniformity of the film coating. The equipment adopts bottom vacuum adsorption sample and has bottom heating function, the heating temperature can reach up to 120℃, which can realize the function of baking film at the same time during the film coating process and make the film dry quickly. The equipment is equipped with a squeegee limiter, which can adjust the length of the coated film arbitrarily and automatically reset the squeegee after it reaches the limit. The upper cover has the function of dustproof and heat preservation, also makes the device look better.
Features:
1. The equipment adopts stepless variable speed motor to precisely control the coating speed.
2. Adopt the horizontal bar to push the debuggable scraper, and there is no special requirement for the shape size of the debuggable scraper.
3. The waste material collection box placed on the left edge of the vacuum suction plate can collect the excess paint to ensure the cleanliness of the equipment itself and the surrounding area.
4. The bottom intelligent vacuum heating suction plate and the drying system with digital display temperature control can adapt to the development of science and technology of film formation under high temperature conditions.
5、It has passed CE certification.
Technical parameters：
|
Product Name |
MSK-AFA-IID Small cast automatic drying film coater |
|
Model Number |
MSK-AFA-IID |
|
Main Parameters |
1. Power supply: AC 220V, 50HZ 2. Total power: 2050W 3. Coating base size：600mm×300mm（L×W) 4. Vacuumable size: 600mm×250mm(L×W) 5. Coating speed：10-100mm/s(stepless variable speed) 6. Coating stroke: 10㎜-530mm(length adjustable) 7. Maximum heating temperature of bottom heater: 120℃ 8. Controlling temperature accuracy: ±1℃ 9. Debuggable scraper: 250mm micron level adjustable, film thickness adjustment range 0.01-5mm 10. The accuracy of film thickness: 0.01㎜ |
|
Product Specification |

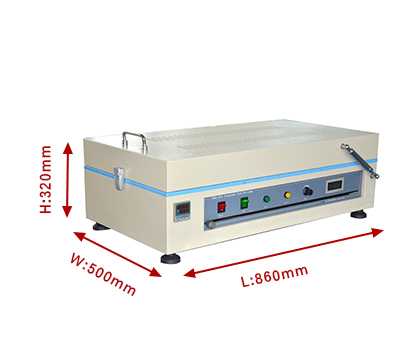

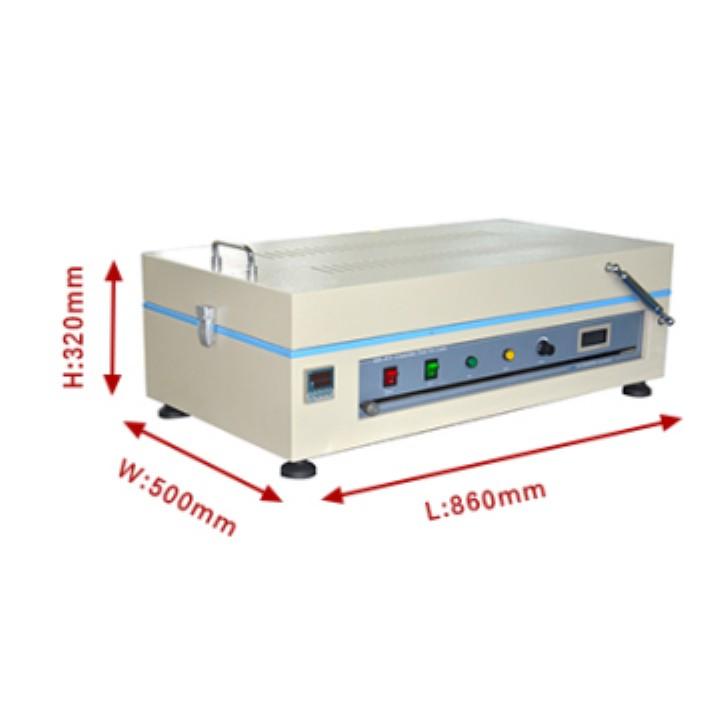

1、Complete machine size. 860mm×500mm×320mm（length×width×height）close 1150mm×500mm×1000mm（length×width×height）open
2、Weight：60Kg |
Standard Accessories：
|
No. |
Name |
Amount |
Picture |
|
1 |

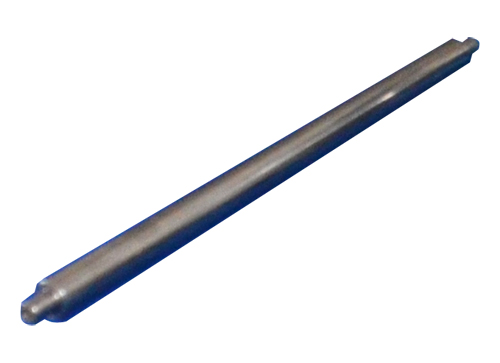

Pusher bar |
1 |
|
|
2 |

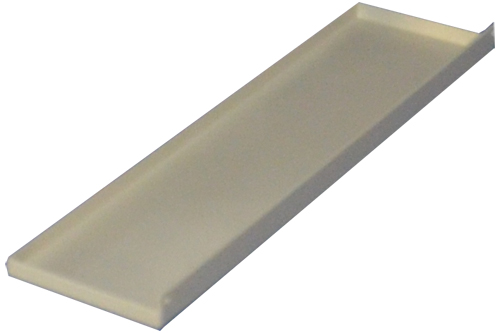

Aggregate box |
1 |
|
|
3 |

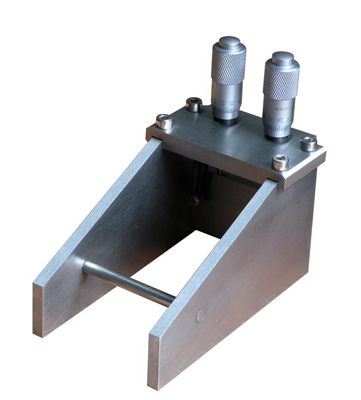

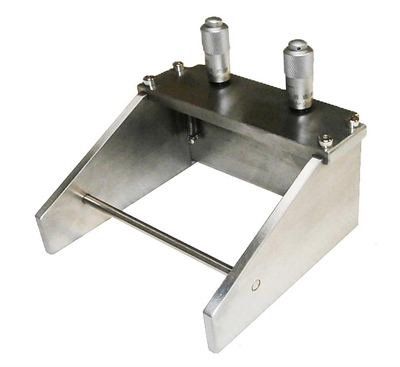

250mm micrometer modifiable membranes |
1 |
|
|
4 |

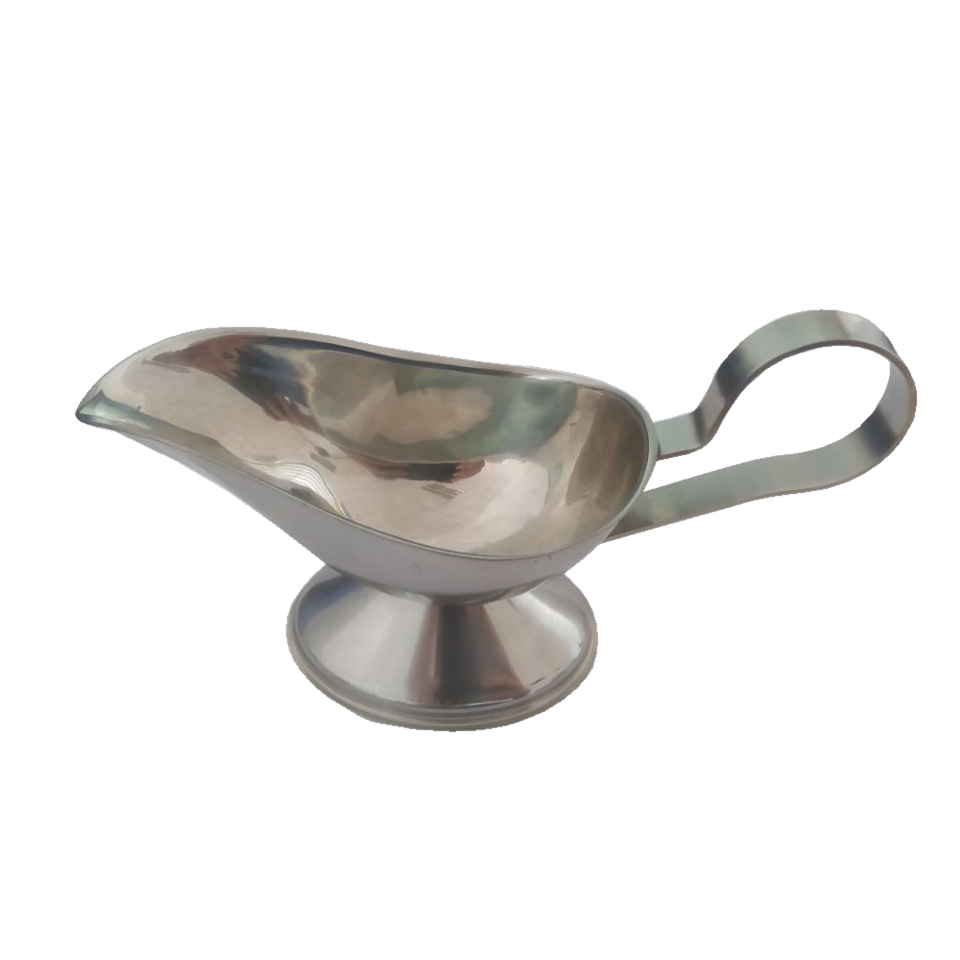

Ingredient cup |
1 |
|
Optional Accessories：
|
No. |
Name |
Function Category |
Picture |
|
1 |

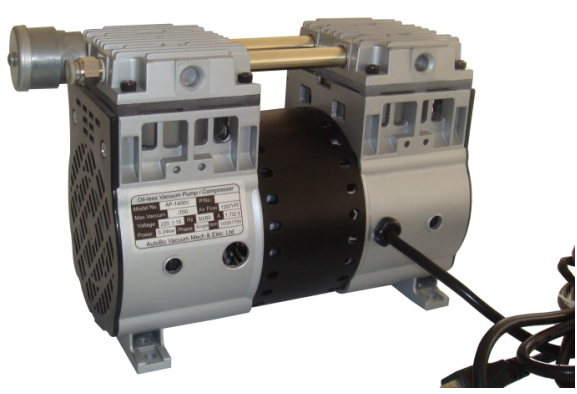

Vacuum pump (AP-1400V oil-free vacuum pump) |
（avaliable） |
|
|
2 |

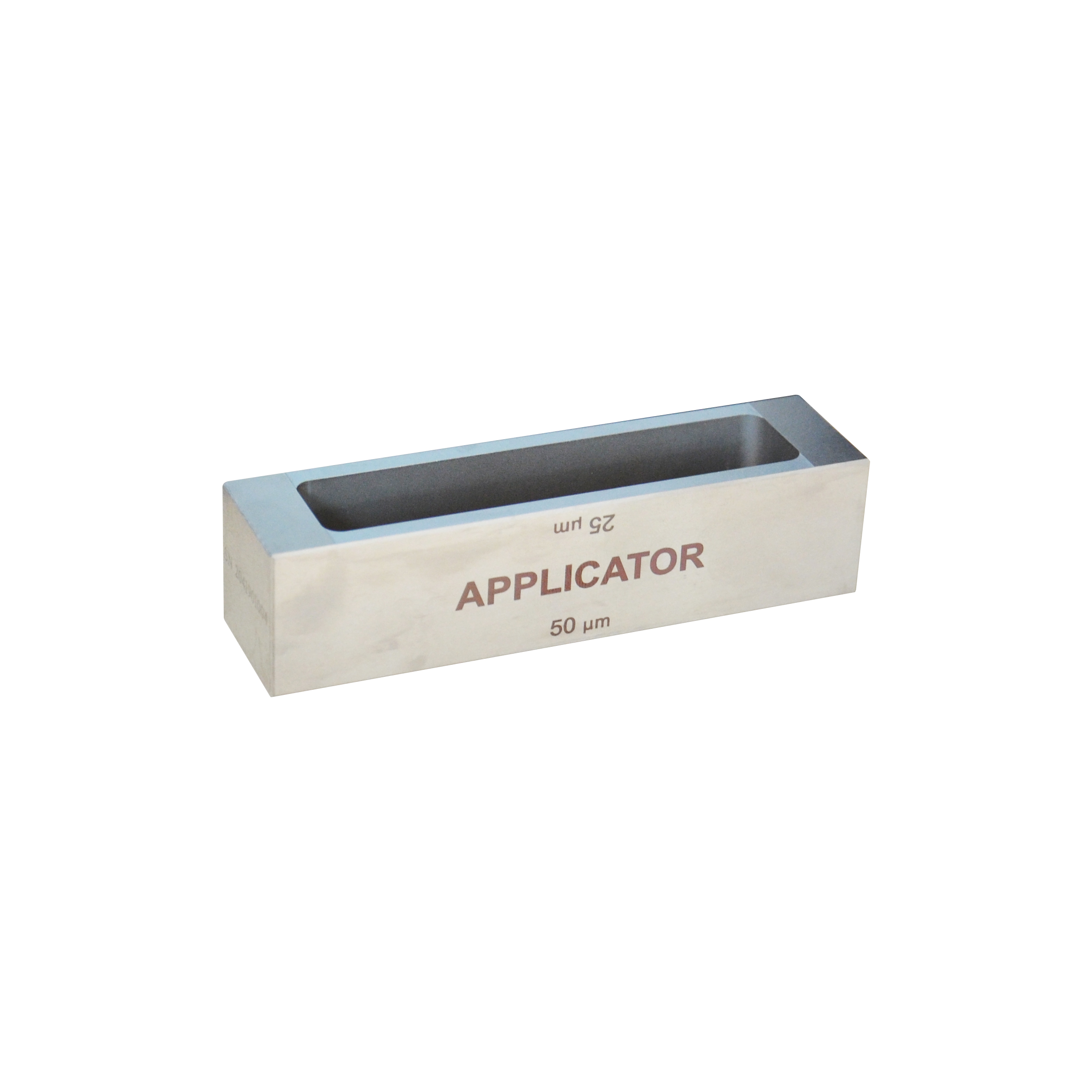

Micrometer modifiable membrane-50mm |
（avaliable） |
|
|
3 |
Micrometer modifiable membrane-100mm |
（avaliable） |
|
|
4 |
Left and right modifiable membrane device - 150mm |
（avaliable） |
|
|
5 |

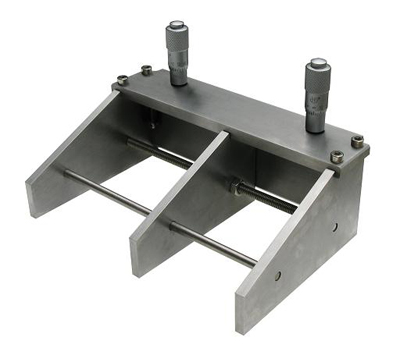

Double squeegee micrometer modifiable film holder - 150mm |
（avaliable） |
|
|
6 |
Top and bottom modifiable filmers-180mm |
（avaliable） |
|
|
7 |

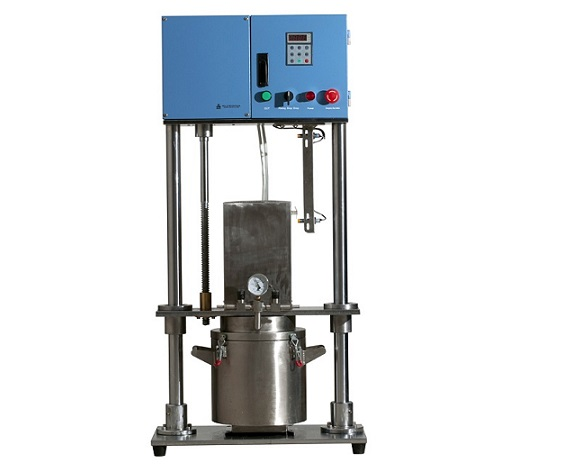

Vacuum Mixer |
（avaliable） |
|
|
8 |

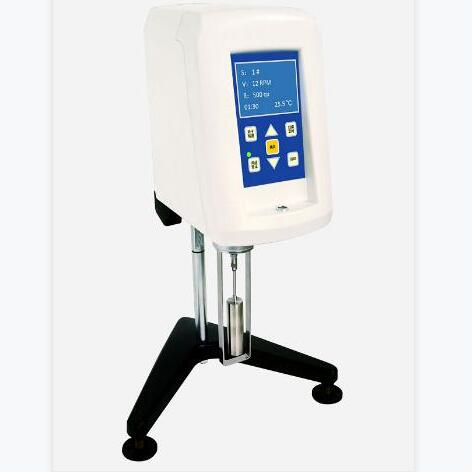

Viscometer |
（avaliable） |
|
|
9 |
Frame Preparer |
（avaliable） |
|
|
10 |

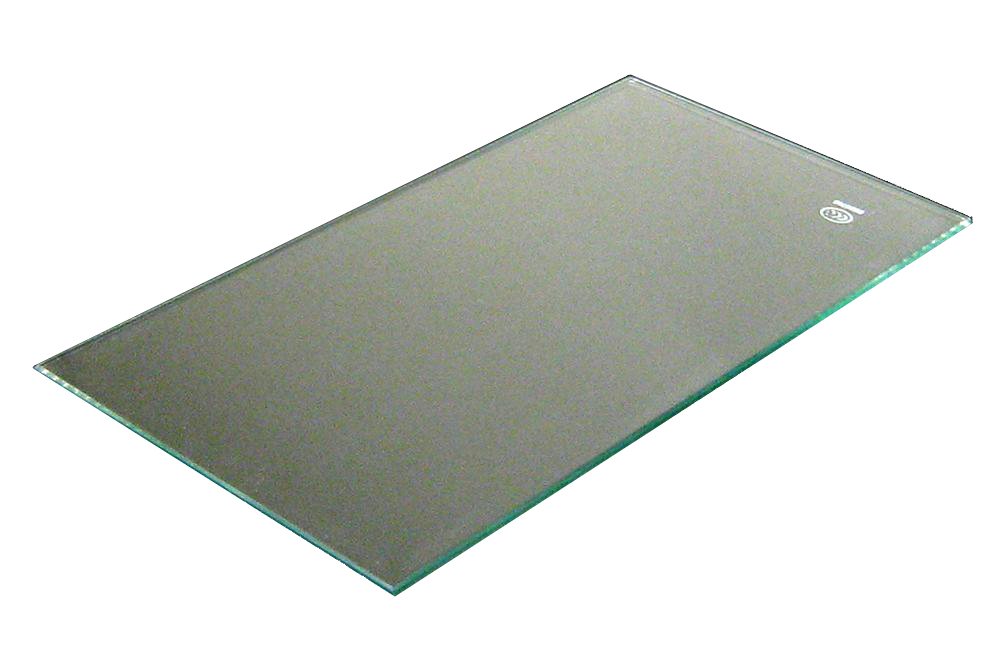

Glass plate |
（avaliable） |
|
