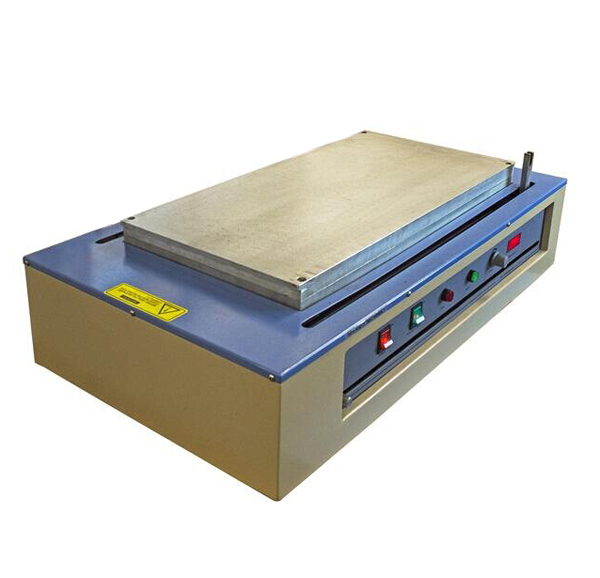

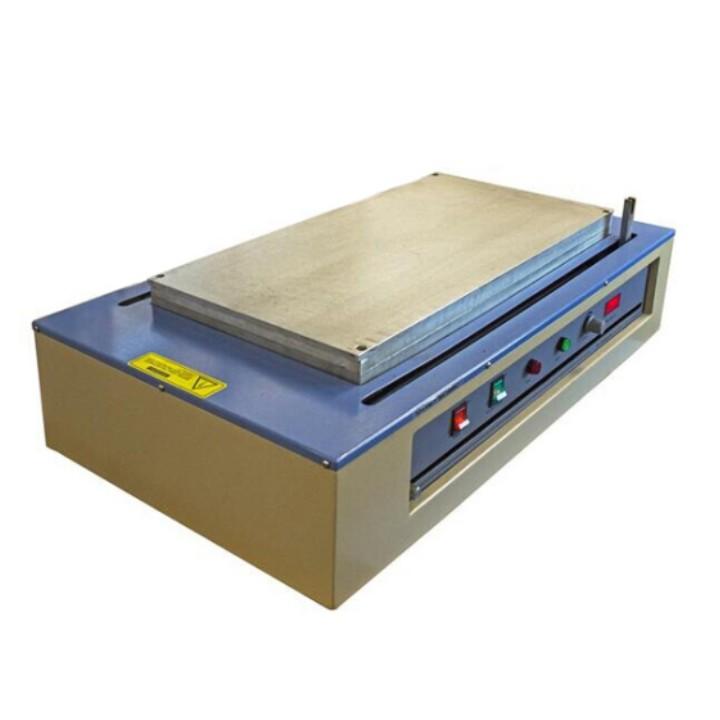

Lab Automatic Coater Used in Ceramic Film and Other Coating Researches
Product Name: Automatic Coater
MSK-AFA-II-VC automatic coater is widely used in various high temperature coating research, such as ceramic film, crystal film, battery material film, special nano film, etc. MSK-AFA-II-VC automatic coater adopts vacuum adsorption method to fix the substrate, which makes the substrate wrinkle-free in the coating process, thus making the coating more uniform and smooth. The width of the film remains the same, and the thickness of the film can be adjusted according to the micrometer above the squeegee, with a small gap between the squeegee and the substrate, the film thickness is thin; with a large gap between the squeegee and the substrate, the film thickness is thick. The length of the film can be controlled according to the stroke of the squeegee, the limit stroke of the squeegee is 550mm, and the MSK-AFA-II-VC automatic coater can also add the corresponding drying equipment according to the customer's needs to meet more requirements of film production. The machine is compact in size and suitable for use in various laboratories.
Features:
1. Uniform coating.
2. CE approved.
Technical parameter:
|
Product Name |
MSK-AFA-II-VC Automatic coater |
|
Model Number |
MSK-AFA-II-VC |
|
Mounting Conditions |
This equipment is required to be used under 1000m above sea level, 25℃±15℃ and 55%Rh±10%Rh humidity. 1. Water: without 2. Electricity: AC220V 50Hz, must be well grounded 3. Gas: without 4. Working station: size 800mm × 600mm × 700mm, load capacity of 200kg or more 5. Ventilation device: without |
|
Main Parameters |
1. Power supply: AC 220V, 50HZ 2. Total power: 50W 3. Coating speed: 10mm/s-100mm/s 4. Coating stroke：10㎜-530mm 5. Vacuum board size：600mm×300mm（length×width) 6. Vacuumable size：600mm×250mm（length×width) 7. Adjustable range of film maker: 250mm micron level adjustable (other sizes can be selected) adjustment range 0.01mm-5mm 8. Film thickness accuracy: ± 0.01mm |
|
Product Specification |

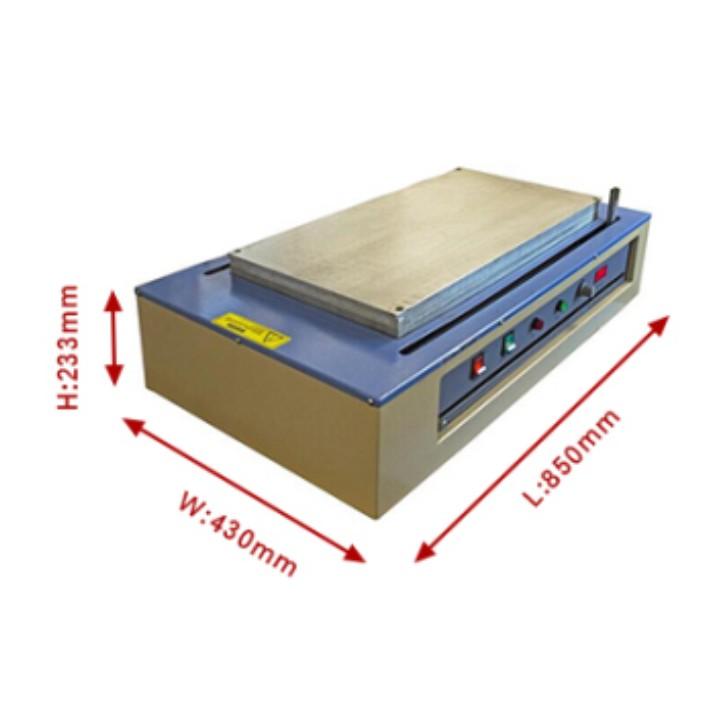

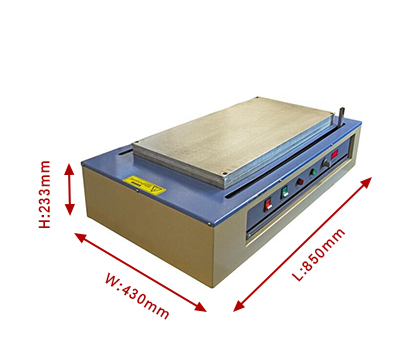

Size: 850mm×430mm×223mm
Weight: 45kg |
Standard Accessories：
|
No. |
Name |
Amount |
Picture |
|
1 |
Pusher bar |
1 |
|
|
2 |
Aggregate box |
1 |
|
|
3 |

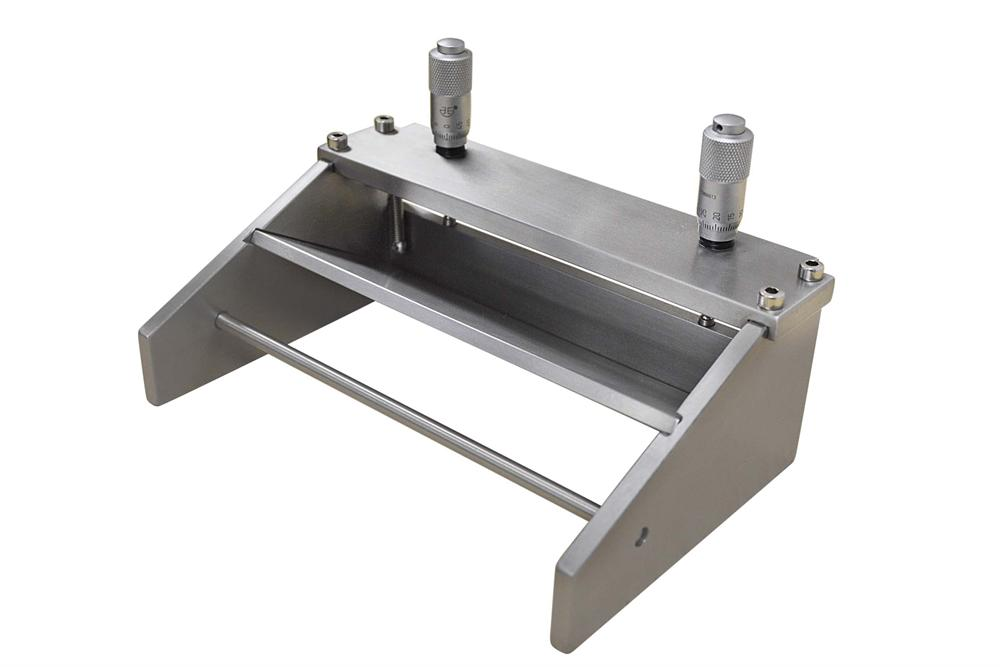

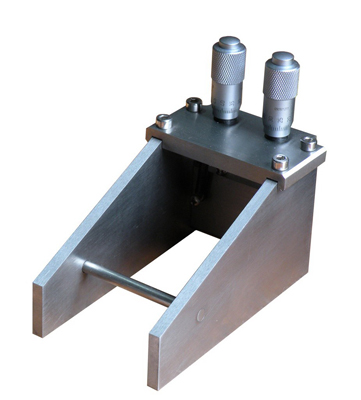

150mm micrometer modifiable membranes |
1 |
|
|
4 |

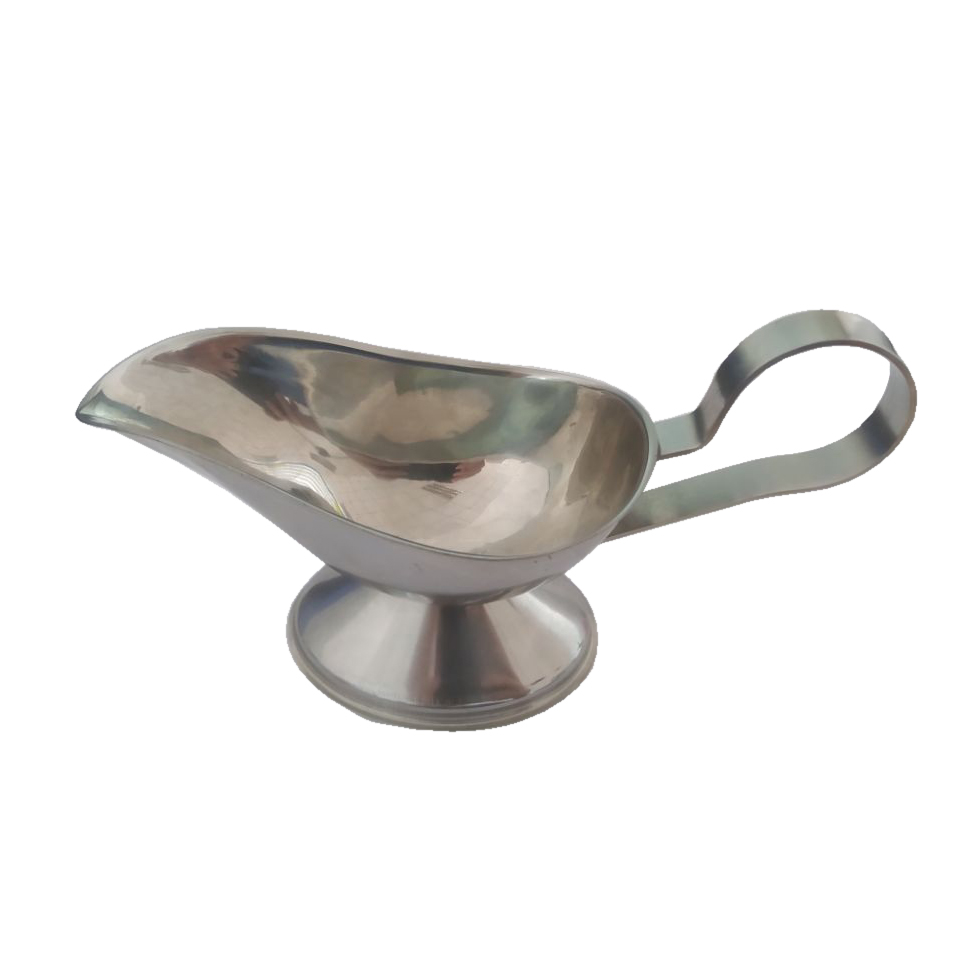

Ingredient cup |
1 |
|
Optional Accessories：
|
No. |
Name |
Function Category |
Picture |
|
1 |

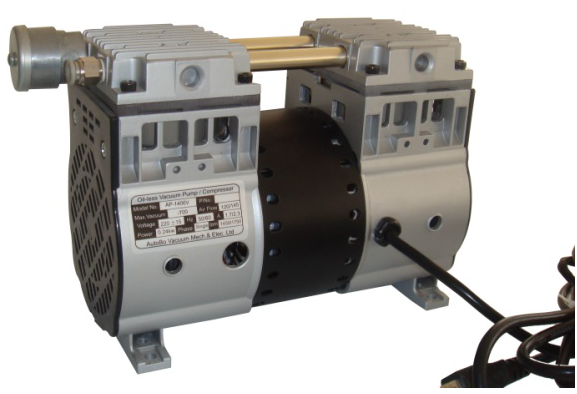

Vacuum pump (AP-1400V oil-free vacuum pump) |
（avaliable） |
|
|
2 |

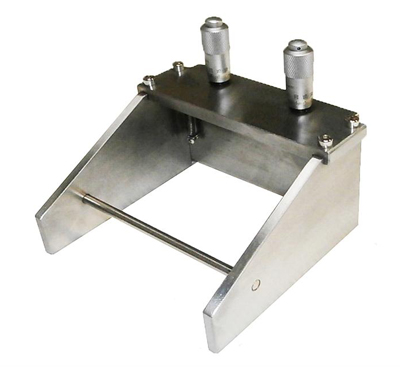

Micrometer modifiable membrane-50mm |
（avaliable） |
|
|
3 |
Micrometer modifiable membrane-100mm |
（avaliable） |
|
|
4 |
Vacuum Mixer |
（avaliable） |
|
|
5 |

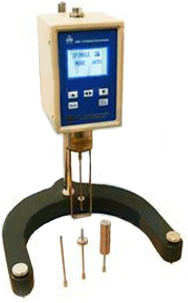

Viscometer |
（avaliable） |
|
|
6 |

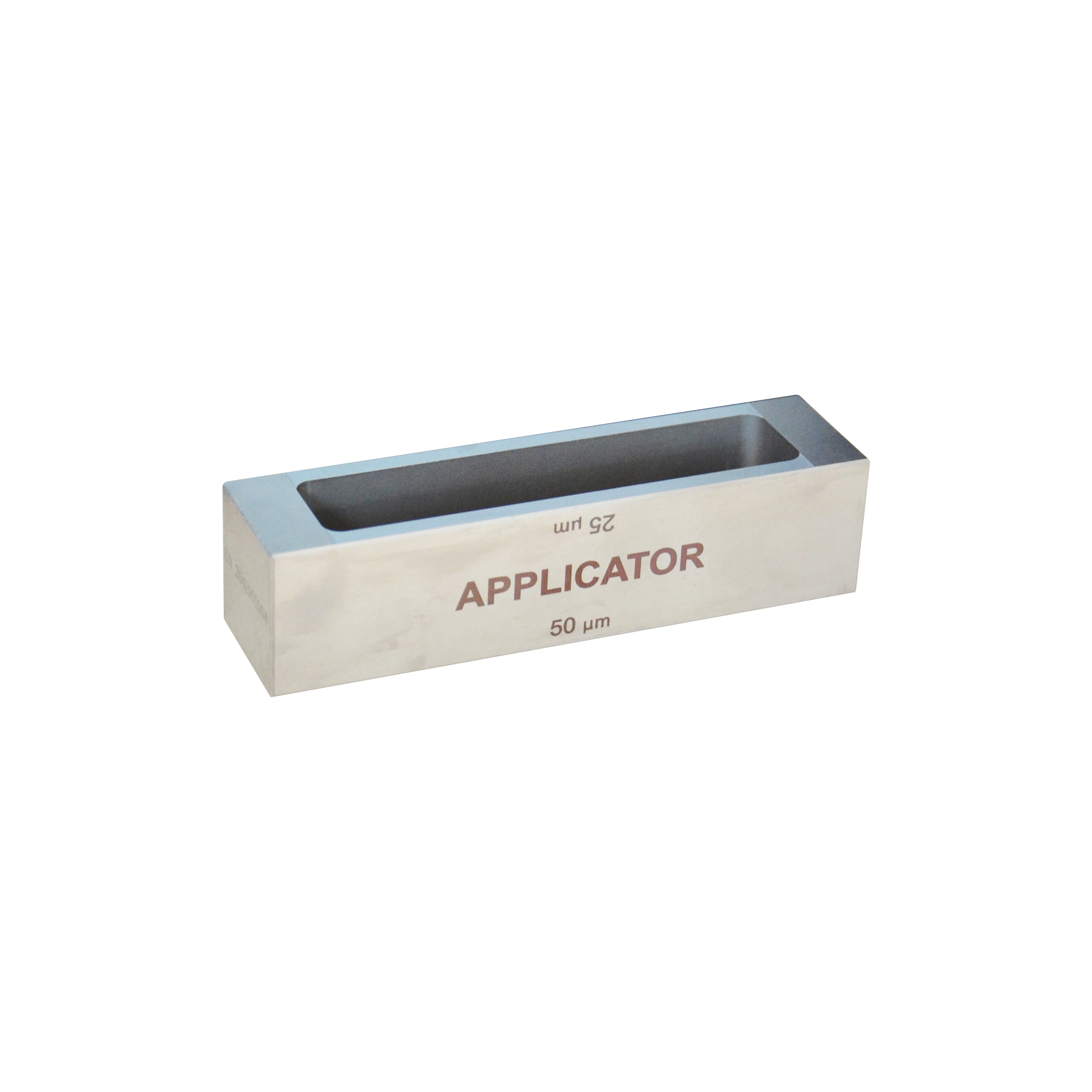

Four-sided precision film maker (4 types of film thickness can be prepared) |
（avaliable） |
|
|
7 |
Frame Preparer |
（avaliable） |
|
