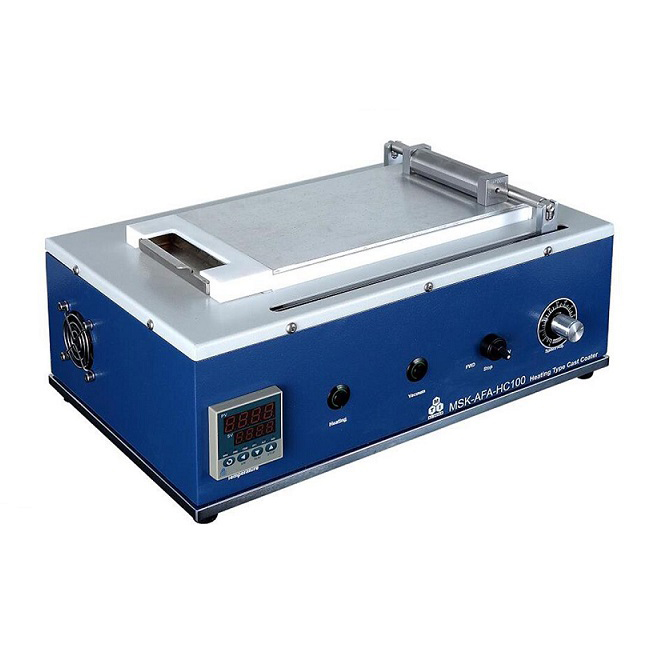

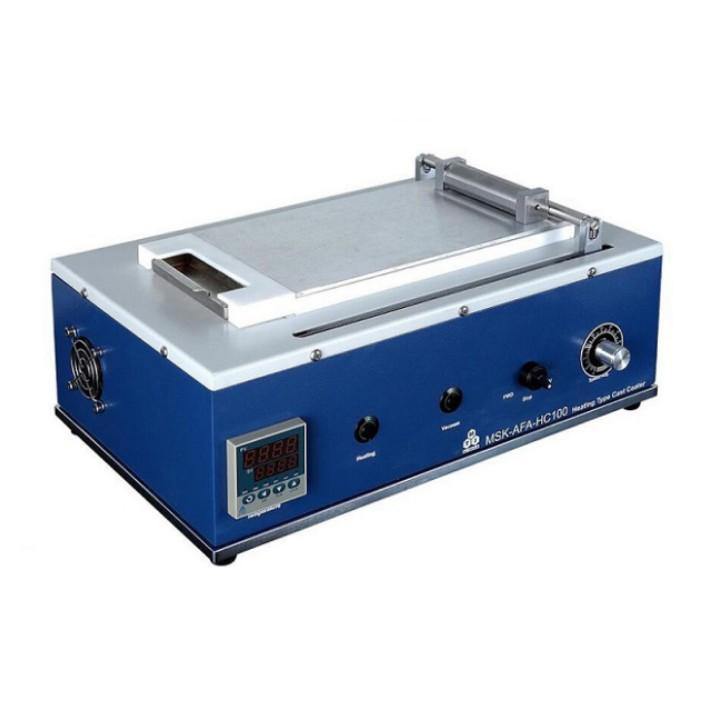

Lab Micro-type Heated Flatbed Coater Cast Coating Device

Product Name: Lab Heated Flatbed Coater

MSK-AFA-HC100 Heated flatbed coater is a micro-type flatbed cast coating device, which can be matched with squeegee and four-sided film maker to realize the flatbed coating process of various micro coating materials. The device is designed to be electrically driven for coating and heated at the bottom for drying, and can be used in a glove box with 24V power supply, especially suitable for research and development of trace materials in universities and research institutes.

Features:

1. Mini-type flat plate coating, electric drive, four-sided film maker to achieve the coating function.

2. The default standard domestic KTQ-80F squeegee, the default standard foreign four-sided film maker, customers can also be the corresponding choice according to the actual

3. The international situation, to achieve a fixed thickness of high-precision coating.

4. With a vacuum pump, coating plate design very small vacuum hole, the substrate adsorption without wrinkles and deformation.

5. Heating type magnesium and aluminum alloy coating plate, with its own heating and drying function.

6. Design of residual material collection box, configuration of protective cover to protect the coating plate.

7. The overall design is small and compact, can be used in the glove box, UL standard components.

Technical parameters：
