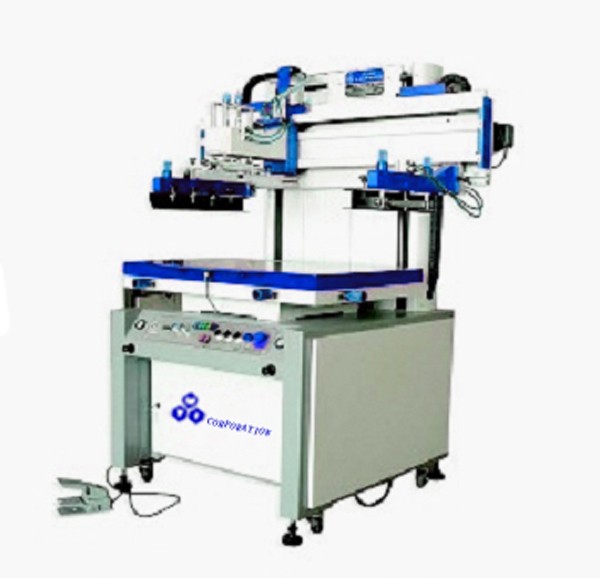

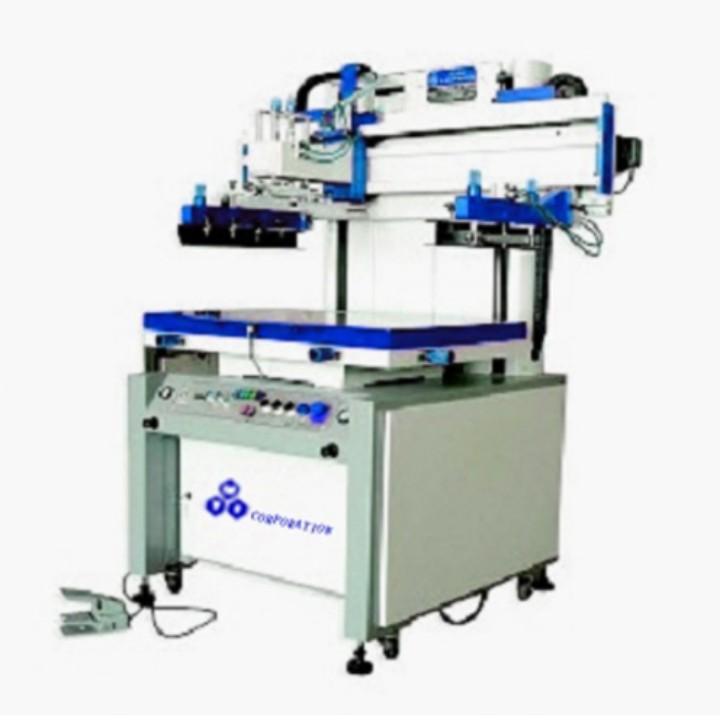

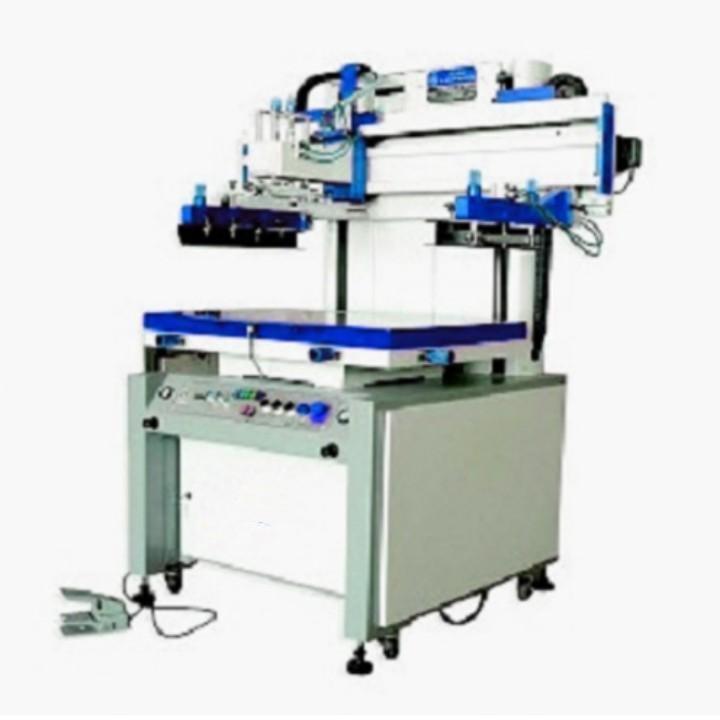

Lab Electric Flat Screen Printer for Fuel Cell and Solar Cell Coating
Product Name: Lab Electric Flat Screen Printer
SPC-32 electric flat screen printer is special equipment for fuel cell and solar cell coating. It adopts linear guide rail with frequency conversion to adjust the rotation to ensure the stability and precision when printing; the squeegee pressure and printing speed are adjustable to ensure the quality of printing.
Features:
1. With alignment fine adjustment device between PCB board and screen.
2. Whether single or double-sided can be adjusted left or right respectively, suitable for different size range of screen printing.
3. Automatic realization of printing process, more stable quality and higher efficiency.
4. The suspended squeegee system makes the printing more even.
Technical parameters：
Product Name
SPC-32 electric flat screen printer
Model Number
SPC-32
Mounting Conditions
This equipment is required to be used at an altitude of less than 1000m, at a temperature of 25℃±15℃ and a humidity of 55%Rh±10%Rh.
1. Water: the equipment is equipped with self-circulating cooling water machine (filled with pure water or deionized water)
2. Electricity: AC380V 50Hz (63A air switch), must be well grounded
3. Gas: the equipment chamber needs to be filled with argon gas (purity of 99.99% or more), need to provide their own argon gas cylinder (with Ø6mm double ferrule connector)
4. Working station: size 1500mm × 600mm × 700mm, load capacity of 200kg or more
5. Ventilation device: required
Main Parameters
1. Power supply: single-phase AC208V-240V 50Hz/60Hz
2. Power：2500W
3. The table plate: 330mm × 400mm
4. The maximum printing area: 200mm × 300mm
5. Printing height: 30mm
6. Printing speed: 300pcs/h-500pcs/h
7. Repeat printing accuracy: ±0.03mm
