Continuous and Intermittent Experimental Automatic Coating Machine

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Brand:

    LITH
  • Item no.:

    LITH-MSK-AFA-EI300
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

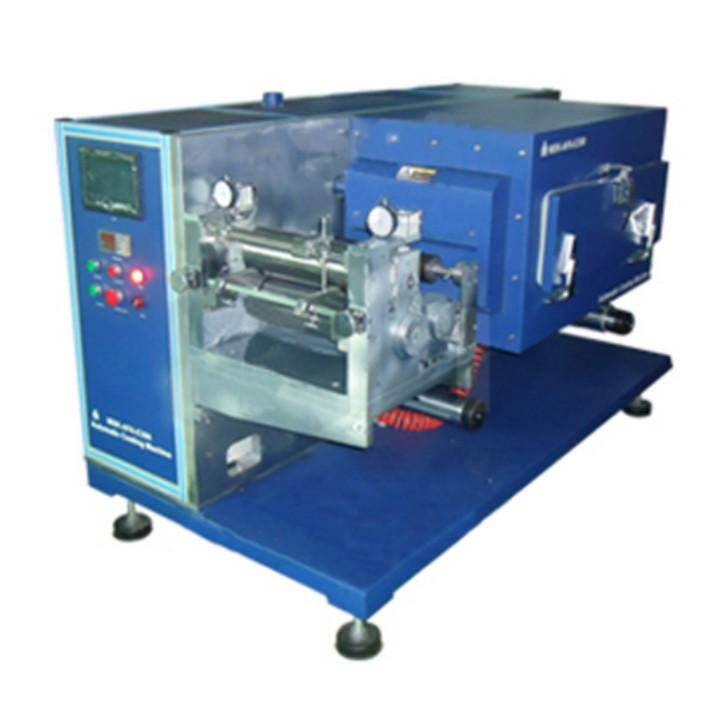

Continuous and Intermittent Experimental Automatic Coating Machine

Experimental Automatic Coating Machine


Product Name: Continuous and Intermittent Experimental Automatic Coating Machine


MSK-AFA-EI300 continuous and intermittent experimental automatic coating machine is an automatic equipment specially used for foil surface coating, with PLC control system and humanized Chinese and English switchable operation interface; it adopts three-roller transfer type coating, which can achieve very uniform thin coating on the substrate surface and dry automatically by drying system. This machine can be continuously and uninterruptedly coated, which is suitable for battery's R&D experiment and sample production, etc. And it has certain versatility, and it is also widely used in film, paper and composite material industries, and has high production efficiency.



Features:

1. With automatic stirring bar to make the slurry more uniform when coating.

2. Automatic tape walking, automatic winding, and equipped with automatic winding deflection correction system, making the winding more neat and beautiful.

3. With drying system, automatic drying of coating.

4. Adjustable coating tension, continuous and intermittent coating, high precision coating.

5. According to the actual needs can also choose NMP recovery device.

6. It has passed CE certification.



Technical parameters

Product Name

MSK-AFA-EI300 continuous and intermittent experimental automatic coating machine

Model Number

MSK-AFA-EI300

Mounting Conditions

This equipment is required to be used under 1000m above sea level, 25℃±15℃ and 55%Rh±10%Rh humidity.

1. Water: without

2. Electricity: AC220V 50Hz, must be well grounded

3. Gas: need to prepare their own air source or air compressor

4. Working station: Size 800mm×600mm×700mm, load capacity over 200kg

5. Ventilation device: required

Main Parameters

1. Input powerAC220V 50Hz

2. Maximum power: about 5KW

3. Input gas source: 0.5MPa-0.8MPa compressed air

4. Width of substrate: max. 280mm

5. Coating widthMax. 260mm

6. Coating speed: 100mm/min-600mm/min

7. Coating accuracy: ±3µm (edge error ±5µm)

8. Coating roller diameter: Ø100mm

9. Coating roller runout: ≤2µm

10. Unwinding and winding diameter: max. 250mm

11. Unwinding and winding tension: 5N-40N adjustable

12. Scraper positioning accuracy: micrometer display, accuracy ±1µm

13. Deflection accuracy: ±0.5mm

14. Drying temperature: maximum 150℃±5℃

15. Oven length: 800mm

16. Drying method: resistance wire heating, up and down blowing wind

Product Specification

Size: 1530mm x 950mm x 1080mm.

Weight: 1000kg
