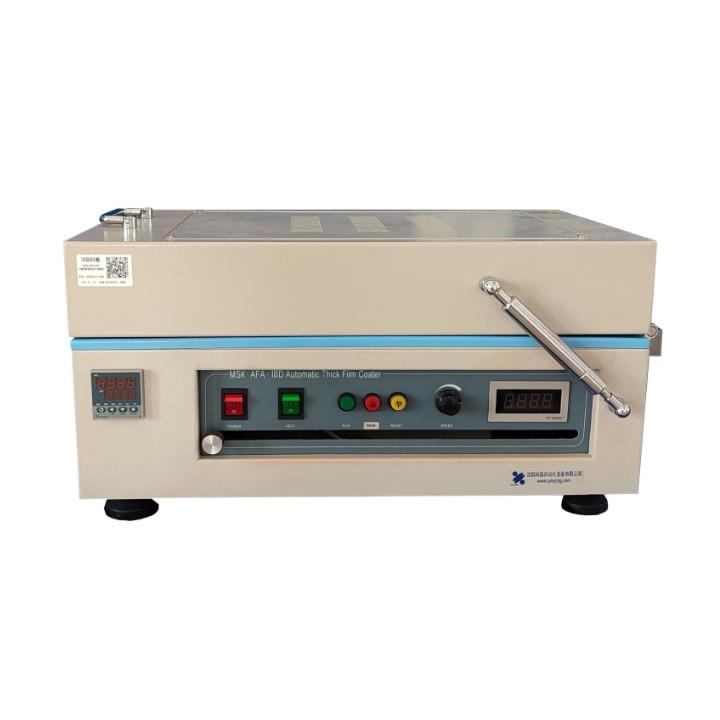

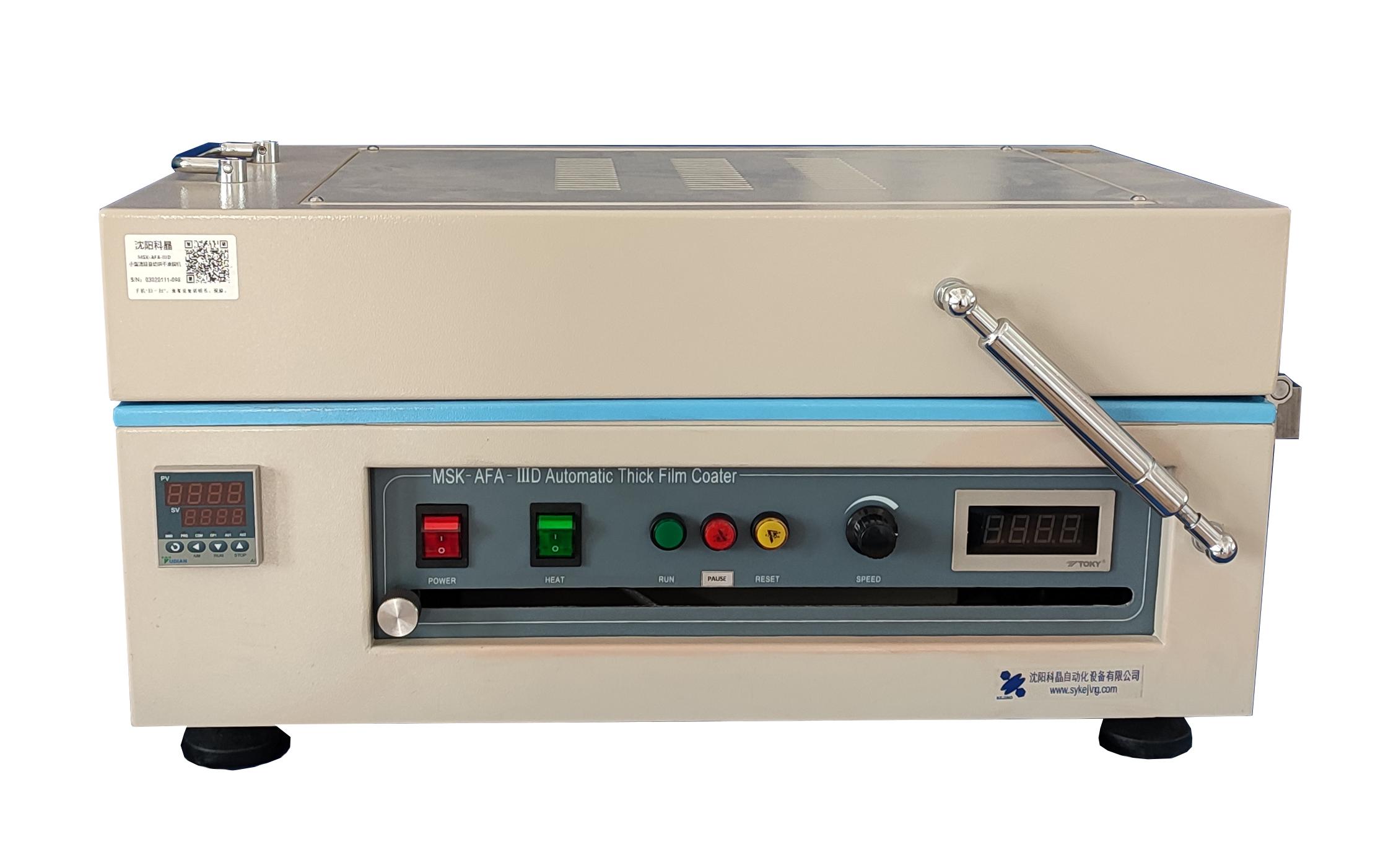

Lab Small Cast Automatic Drying Coating Machine
Product Name: Lab Small Cast Automatic Drying Coating Machine
MSK-AFA-IIID small cast automatic drying film coating machine is a bottom heating type small automatic cast film coating scraper designed and developed by our company, mainly used for laboratory coating liquid-like or colloidal film use, the equipment adopts stepless variable speed motor for precise control of the film coating speed to achieve the purpose of advancing the scraper for film coating at an even speed, the scraper is made of full stainless steel, with constant weight, which can improve the consistency and uniformity of the coating film. The equipment adopts bottom vacuum adsorption sample and has bottom heating function, the heating temperature can reach up to 120℃, which can realize the function of baking film at the same time during the film coating process and make the film dry quickly. MSK-AFA-IIID small cast automatic film coating and drying machine has a squeegee limiter, which can adjust the length of the coated film arbitrarily and automatically reset after the squeegee reaches the limit. The upper cover has the function of dustproof and heat preservation, also makes the device look better. Our small cast automatic film coating and drying machine is carefully designed to facilitate the operator to coat high quality wet film on different substrates, which greatly improves the repeatability of the coated film.
Features:
1. This equipment adopts stepless variable speed motor to precisely control the coating speed
2. Adopt the cross bar to push the wet film preparer, and there is no special requirement for the shape size of the wet film preparer.
3. The waste collection box placed on the left edge of the vacuum suction plate can collect the excess coating to ensure the cleanliness of the equipment itself and the surrounding area.
4. The intelligent vacuum heating suction plate and the drying system with digital display temperature control can adapt to the development of science and technology of film formation under high temperature conditions.
5. The machine adopts bottom heating method to bake glue in the process of glue application.
6. It has passed CE certification.
Technical parameters：
|
Product Name |
MSK-AFA-IIID small cast automatic drying film coating machine |
|
Model Number |
MSK-AFA-IIID |
|
Main Parameters |
1. Power supply: AC 220V, 50HZ 2. Total power：1100W 3. Heating plate area：360mm×200mm（L×W) 4. Vacuumable size: 300mm×150mm (L×W) 5. Coating speed: 10mm/s-100mm/s (stepless variable speed) 6. Coating stroke: 10-250mm (length adjustable) 7. Maximum heating temperature of heater: 120℃ 8. Temperature control accuracy: ±1℃ 9. Film maker: 150mm micron adjustable (other sizes are available), adjustment range 0.01mm-5mm 10. Membrane making precision: ±10μm |
|
Product Specification |

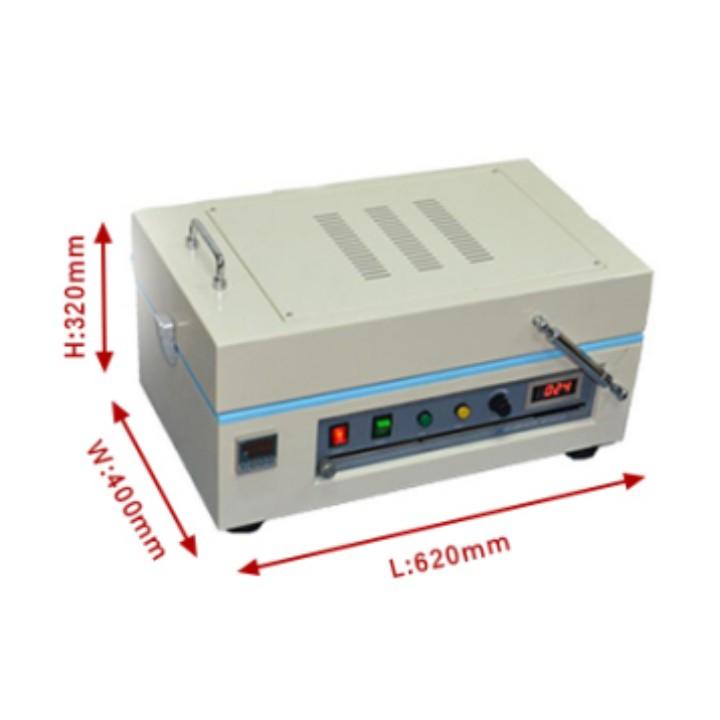

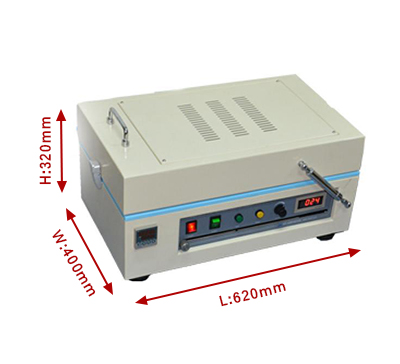

1. Overall dimensions of the machine. Closed state 620mm×400mm×320mm (length×width×height) Open state 860mm×400mm×790mm（L×W×H）
2、Weight: 60Kg |
Standard Accessories：
|
No. |
Name |
Amount |
Picture |
|
1 |
Pusher bar |
1 |
|
|
2 |
Aggregate box |
1 |
|
|
3 |

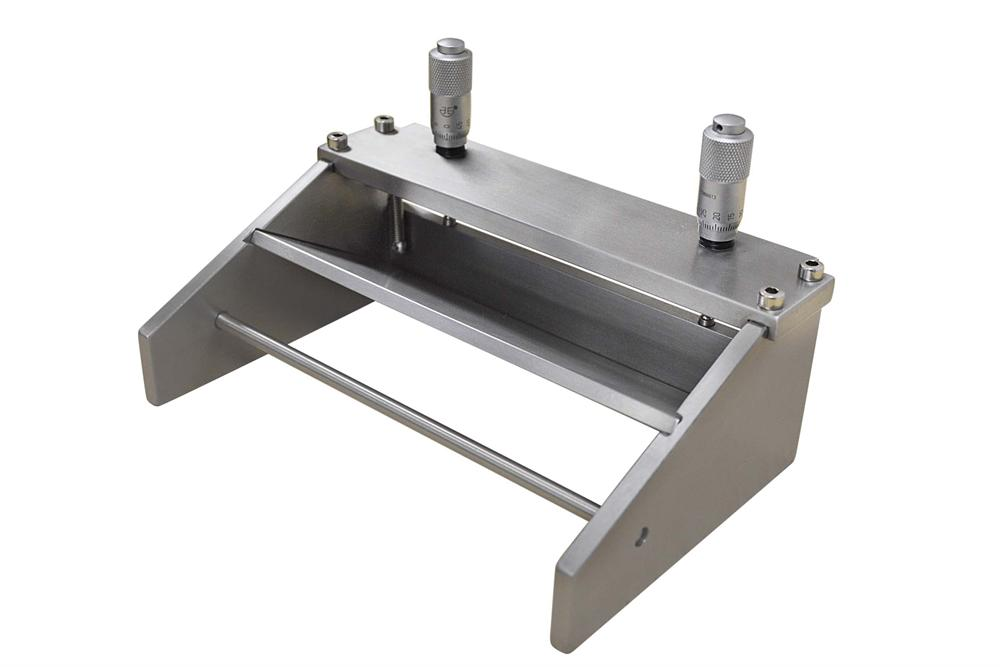

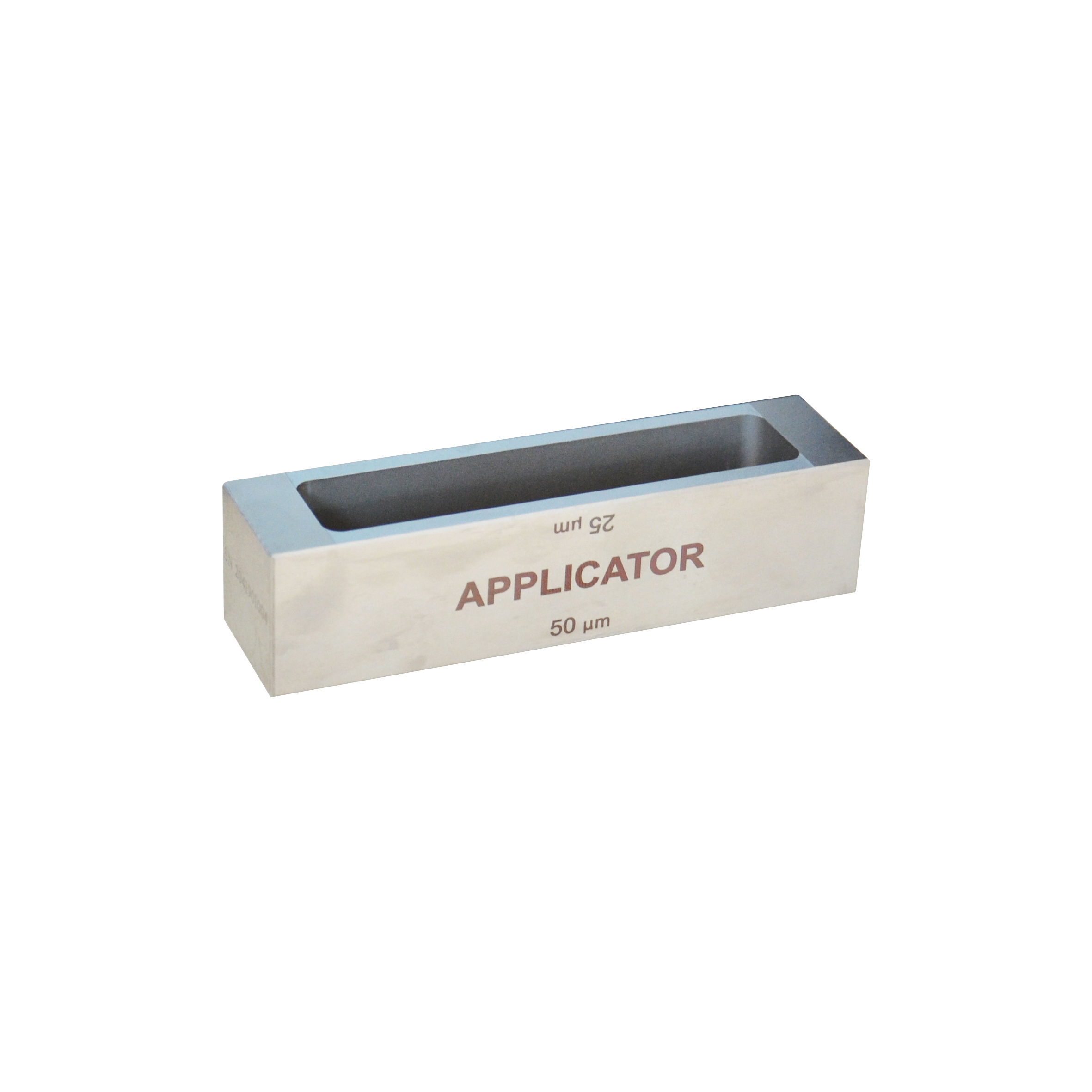

150mm micrometer modifiable membranes |
1 |
|
|
4 |

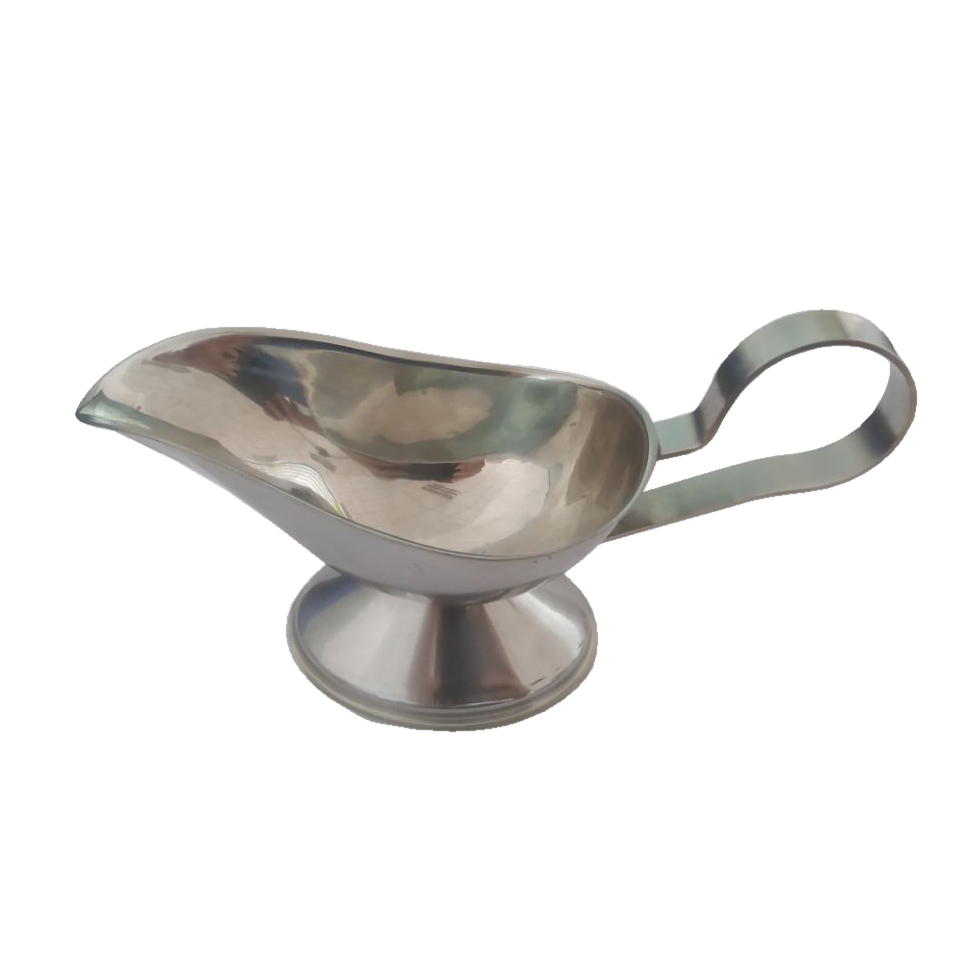

Ingredient cup |
1 |
|
Optional Accessories：
|
No. |
Name |
Function Category |
Picture |
|
1 |

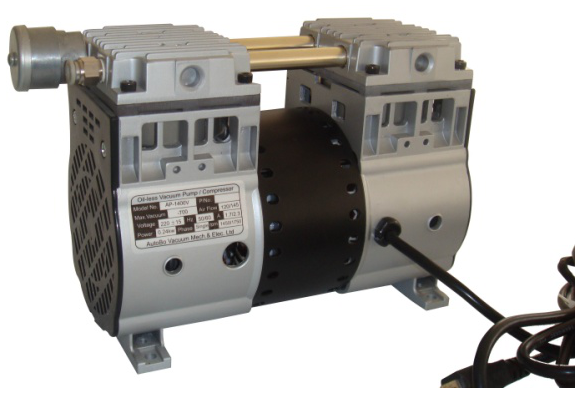

Vacuum pump (AP-1400V oil-free vacuum pump) |
（avaliable） |
|
|
2 |

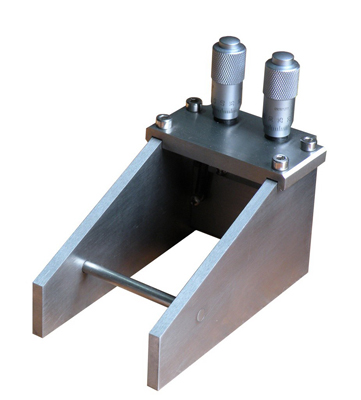

Micrometer modifiable membrane-50mm |
（avaliable） |
|
|
3 |

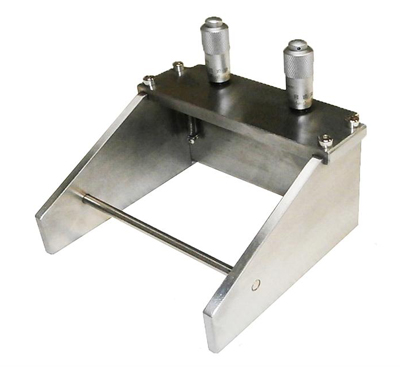

Micrometer modifiable membrane-100mm |
（avaliable） |
|
|
4 |
Vacuum Mixer |
（avaliable） |
|
|
5 |

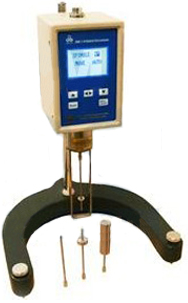

Viscometer |
（avaliable） |
|
|
6 |
Four-sided precision film maker (4 types of film thickness can be prepared) |
（avaliable） |
|
|
7 |
Frame Preparer |
（avaliable） |
|
|
8 |

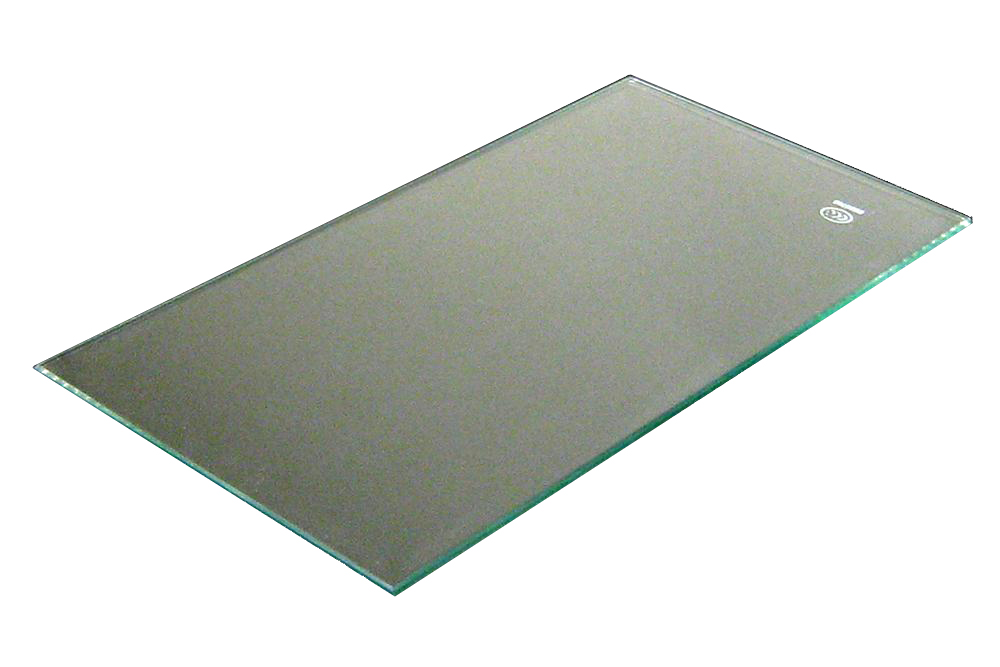

Glass plate |
（avaliable） |
|
