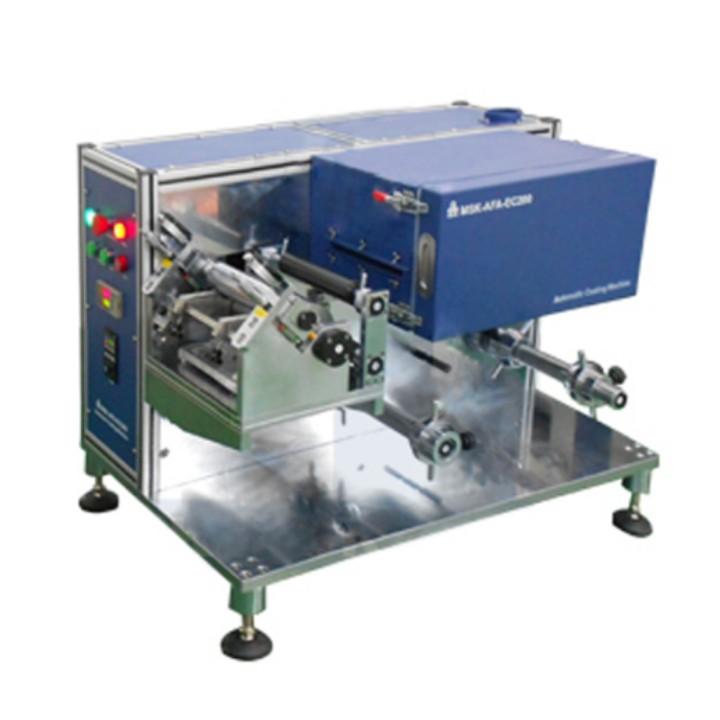

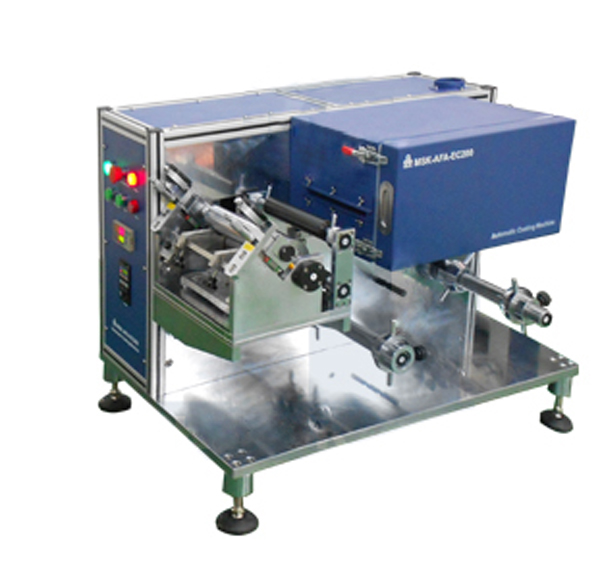

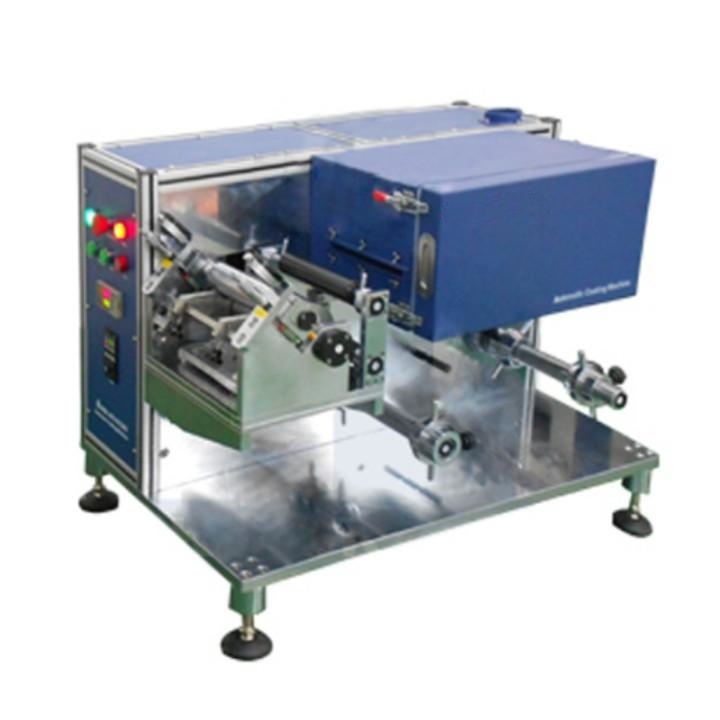

Lab Scraping Type Automatic Drying Coater for Cell R&D Experiments and Sample Production
Product Name: Scraping Type Experimental Coater
MSK-AFA-EC200 scraping type experimental coater is a newly developed automatic equipment specially for foil surface coating by Kejing Group, which can achieve very uniform thin coating on the substrate surface and dry automatically by drying system. This machine can be continuously and uninterruptedly coated, and is suitable for cell R&D experiments and sample production, etc. And it has certain versatility, and is also widely used in film, paper and composite material industries, and has high production efficiency.
Features:
1. Equipped with automatic stirring bar to make the slurry more uniform when coating.
2. Automatic tape walking, automatic winding, and equipped with pole piece positioning block, which ensures the neat consistency of tape walking and winding.
3. With drying system, automatic drying of coating.
4. Adjustable coating tension, continuous non-intermittent coating, high precision coating.
Technical parameters：
Product Name
MSK-AFA-EC200 scraping type experimental coater
Model Number
MSK-AFA-EC200
Mounting Conditions
This equipment is required to be used under 1000m above sea level, 25℃±15℃ and 55%Rh±10%Rh humidity.
1. Water: without
2. Electricity: AC220V 50Hz, must be well grounded
3. Gas: need to prepare their own air source or air compressor
4. Working station: Size 800mm×600mm×700mm, load capacity over 200kg
5. Ventilation device: required
Main Parameters
1. Input power：AC220V 50Hz
2. Maximum power: about 3KW
3. Substrate width：Max. 200mm
4. Coating width：maximum 180mm
5. Coating speed: 200mm/min (adjustable)
6. Coating thickness: 20µm-200µm (based on the drying of the coating material)
7. Coating accuracy: ±6µm (edge error ±8µm)
8. Tension control: automatic adjustment of winding and unwinding
9. Winding and unwinding diameter: maximum Φ200mm
10. Receiving and rewinding mandrel: 3 inch, T-screw/gas up shaft
11. Deflection accuracy: ±0.5mm
12. Drying temperature: max. 150℃±5℃
13. Oven length: 500mm
14. Drying mode: resistance wire heating, up and down blowing wind
Product Specification
Size: 1000mm×650mm×650mm
