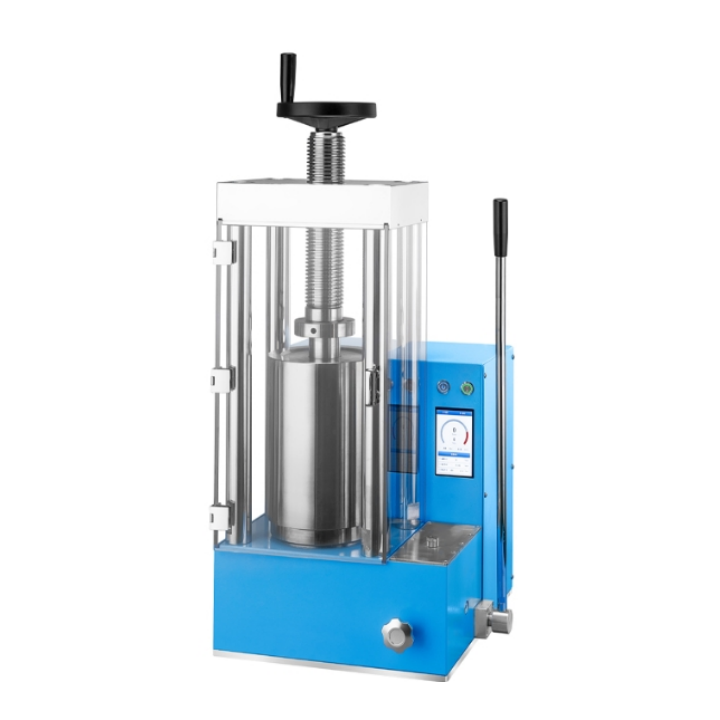

Lab 60T Automatic Electric Manual Cold Isostatic Pressing Machine
Mold diagram
Mold operation diagram
Operating interface
Parameter setting: Click Parameter setting to enter the Setting menu.
Pressure settings: The pressure applied can be set.
Time setting: Set pressure timing, when the holding time is up. The device will alert you that pressure can be relieved.
Sample size: Set the shape and size of the sample, the device will automatically calculate the pressure of the sample according to the size you set, so as not to cause overpressure.
Start button: Click the start button and the device starts to operate according to the set parameters. When the pressure reaches the set value, the pressure will automatically stop, and the automatic pressure will start. The "Start" button becomes "Stop"
Stop button: Click the stop button, the device exits the pressure retaining program. Then open the oil stem to remove the pressure.
Operation procedure
Technical parameter
|
Instrument type |
PCD-60J |
|
Pressure range |
0-60T(0-34Mpa) |
|
Piston diameter |
Chrome plated cylinder Φ150mm(d) |
|
Overall structure of the main body |
The equipment has no sealed connection, reducing oil leakage points |
|
Pressure gauge |
The digital display shows 0.0-40.0MPa |
|
Maximum piston stroke |
50mm(T) |
|
Pressurization method |
Electric pressurization/manual pressurization |
|
Pressure replenishment method |
Automatic pressure replenishment/manual slow pressure increase |
|
Protective cover |
Organic glass |
|
Ambient temperature |
10 ℃-40 ℃ |
|
Isostatic pressure |
Φ50 x150mm(MXN) 0-300MPa
Φ35 x150mm(MXN) 0-500MPa |
|
External dimensions |
405X470X720mm(LXWXH) |
|
Power supply |
550W(220V/110 can be customized) |
|
Equipment weight |
200Kg |
|
Powder tablet press size diagram |
|
