Model

LITH-ZJYP-40T

Pressure range

0-20T

Piston diameter

Chrome-plated cylinder Φ130mm(d)

Pressurization process

Program pressurization - program pressure maintenance - timed pressure relief

Compress time

0-999.59 minutes

Pressure conversion

The program automatically converts the pressure on the sample

LCD

4.3 inch LCD screen

Equipment protection

Steel protection with plexiglass door

Isostatic pressure

500MPa

Isostatic chamber

Φ40*150mm(M*N)

Cylinder stroke

50mm(T)

Sample preparation characteristics

The upper plate rocker structure makes the operation more convenient

Dimensions

280*460*660(L*W*H)

Device power

220V/1500W

Equipment weight

180kg

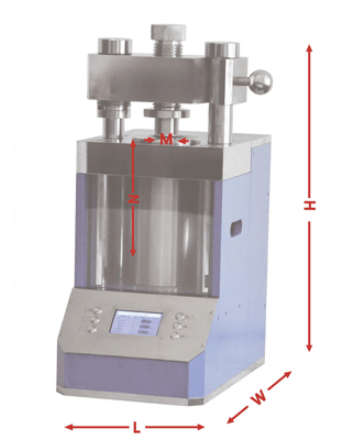

Tablet press size diagram
