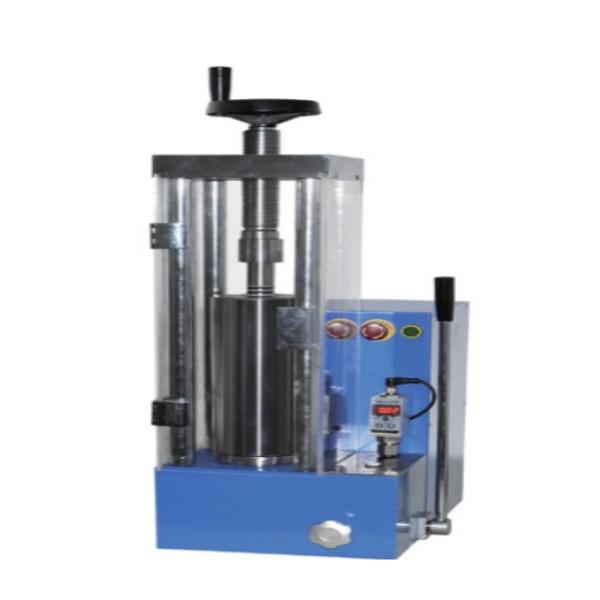

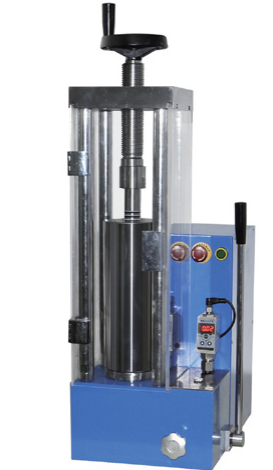

Model

LITH-SJYP-20T

Pressure range

0-20T(0-21MPa)

Piston diameter

Chrome-plated cylinder Φ110mm(d)

Main body structure

Utility model patent 2013 2 0040218.0

Pressure gauge

Digital display 0-40MPa

Maximum piston stroke

40mm(T)

Pressurized method

Electric pressurization/manual pressurization

Compensation method

Automatic supplementary pressure / manual slow pressure

Protecting mask

Plexiglass

Ambient temperature

10℃-40℃

Isostatic pressure

0-300MPa

Isostatic chamber

Φ30*120mm(M*N)

Dimensions

305*430*600mm(L*W*H)

Power supply

220V(50Hz/60Hz)

Equipment weight

120kg

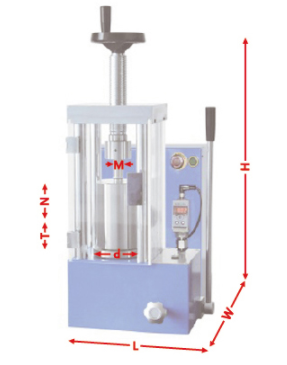

Dialogue of thermal compressor size
