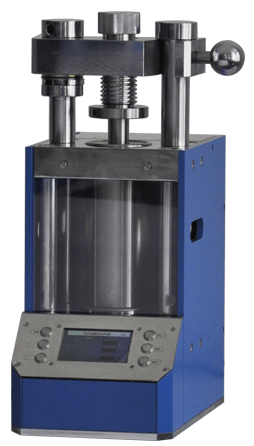

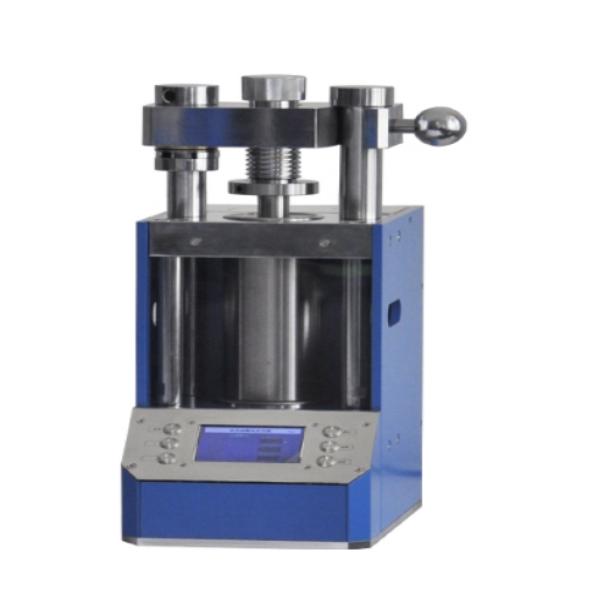

60T Laboratory Automatic Cold Isostatic Pressing Machine
Parameter
Model |
LITH-ZJYP-60T |
|
Pressure range |
0-60T |
|
Piston diameter |
Chrome-plated cylinder Φ150mm(d) |
|
Pressurization process |
Program pressurization - program pressure maintenance - timed pressure relief |
|
Compress time |
0-999.59 minutes |
|
Pressure conversion |
The program automatically converts the pressure on the sample |
|
LCD |
4.3 inch LCD screen |
|
Equipment protection |
Steel protection with plexiglass door |
|
Isostatic pressure |
300MPa |
500MPa |
Isostatic chamber |
Φ50*150mm(M*N) |
Φ30*150mm(M*N) |
Cylinder stroke |
50mm(T) |
|
Sample preparation characteristics |
The upper plate rocker structure makes the operation more convenient |
|
Dimensions |
300*500*680(L*W*H) |
|
Device power |
220V/1500W |
|
Equipment weight |
240kg |
|

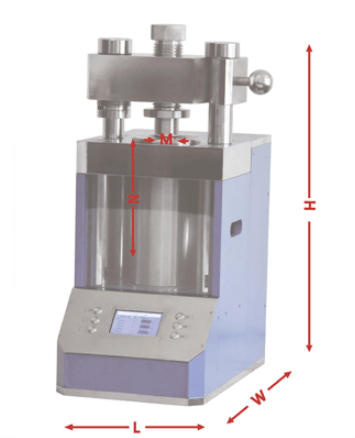

Tablet press size diagram |
|

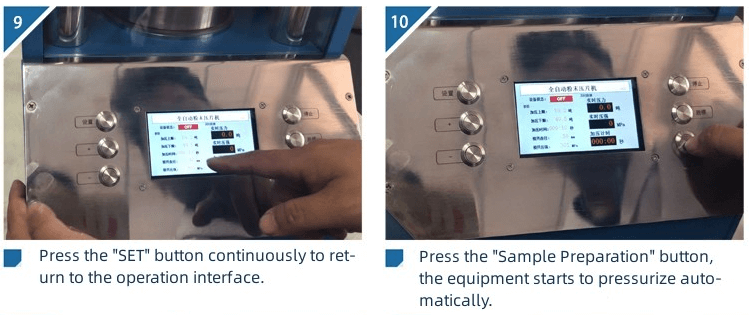

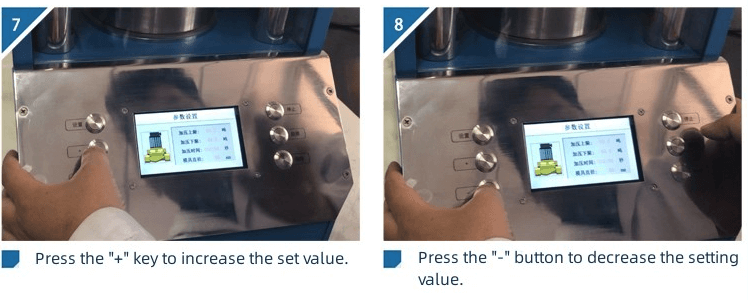

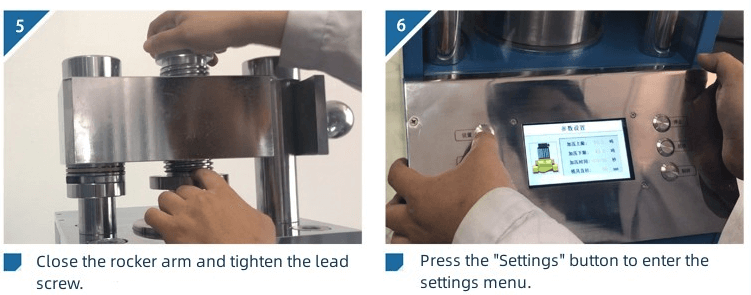

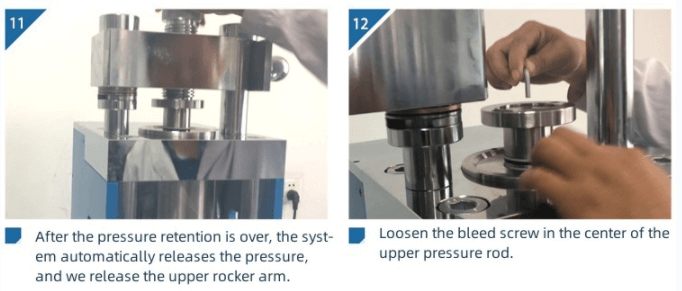

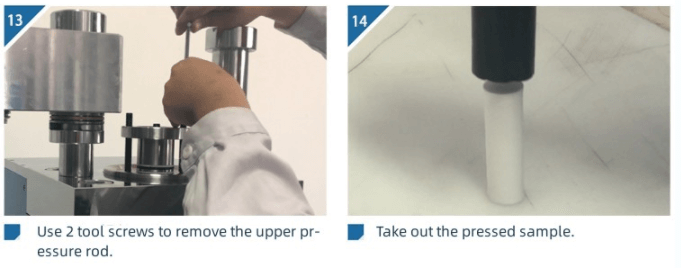

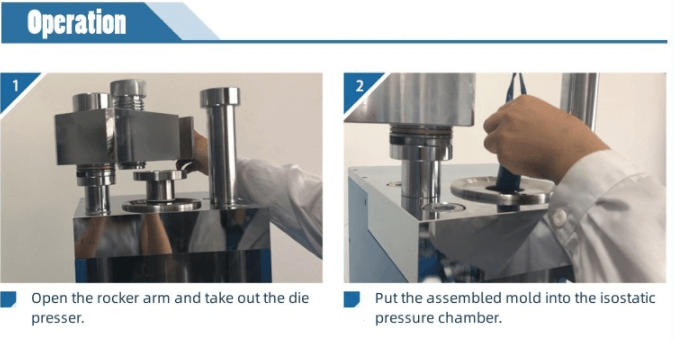

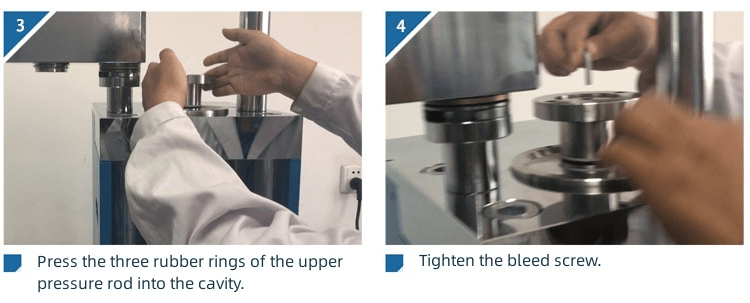

Operation
