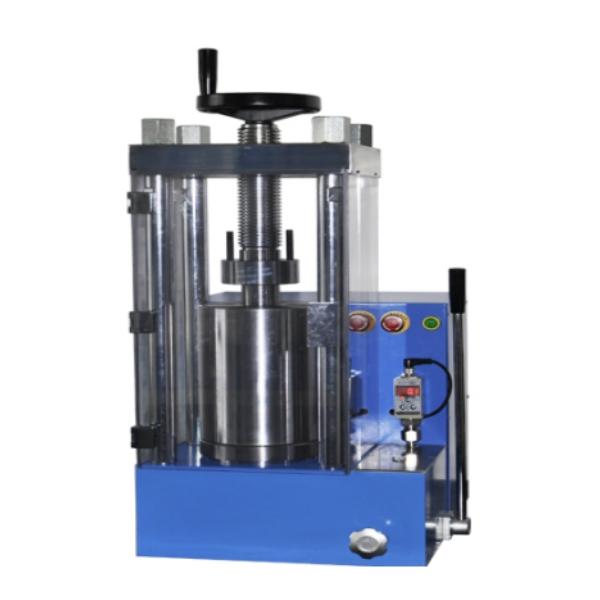

Model

LITH-SJYP-60T

Pressure range

0-60T(0-34MPa)

Piston diameter

Chrome-plated cylinder Φ150mm(d)

Main body structure

Utility model patent 2013 2 0040218.0

Pressure gauge

Digital display 0-40MPa

Maximum piston stroke

50mm(T)

Pressurized method

Electric pressurization/manual pressurization

Compensation method

Automatic supplementary pressure / manual slow pressure

Protecting mask

Plexiglass

Ambient temperature

10℃-40℃

Isostatic pressure

0-300MPa

Isostatic chamber

Φ50*150mm(M*N)

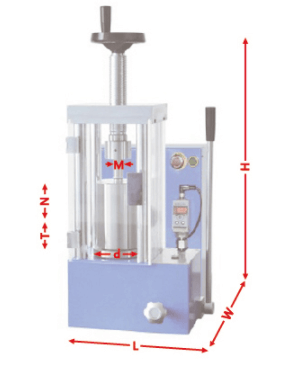

Dimensions

405*470*720mm(L*W*H)

Power supply

220V(50Hz/60Hz)

Equipment weight

200kg

Dialogue of thermal compressor size
