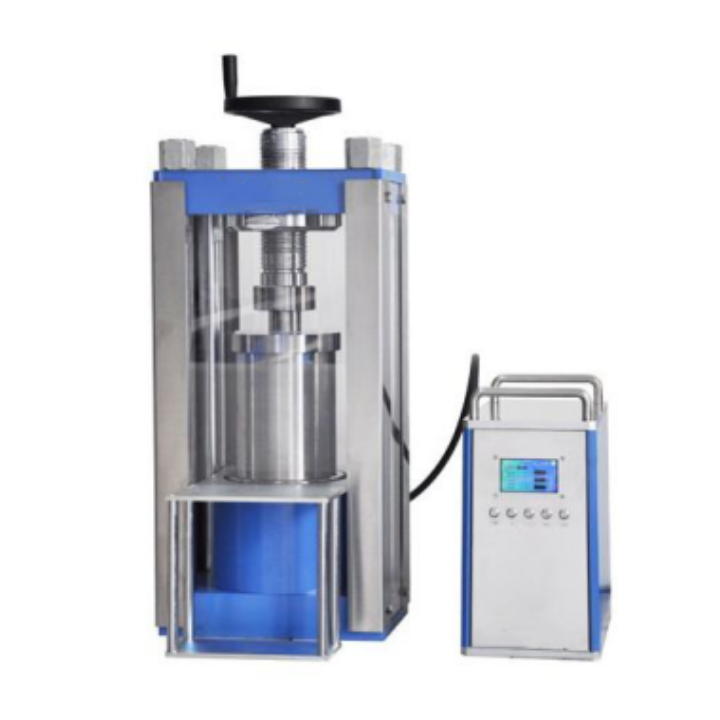

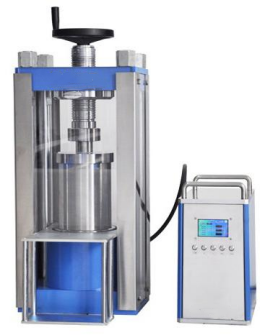

150t Split Type Electric Isostatic Press Machine
Equipment Introduction:
DYJP-TZ series of electric static presses adopt a split structure, with large tonnage, large working space and other characteristics, to meet the need for large sample test users use, fully automatic programmed intelligent operation: programmed pressurisation / slow pressurisation - pressure maintenance - replenishment - timing pressure relief, etc., steel plate protection and with organic glass protection door, the operation of production is safer and more secure, stable pressure, easy to operate, it is another innovative product developed on the basis of the common hydrostatic press.
Main technical parameters:
Equipment type
DJYP-150TZ
Pressure range
1- 150.0T
Piston diameter
Φ250mm
Max. cylinder stroke
50mm
Pressurisation method
Electric pressurisation
Pressurisation process
Intelligent and fully automatic, programmed pressurisation/slow pressurisation - programmed pressure maintenance/recharge - timed pressure relief
Display
XNNETS 4.3" LCD display
Holding time
0-999.59(min. sec)
Pressure conversion
Automatic program conversion and digital display of the pressure applied to the mould sample(Mpa)
Equipment guards
Steel plate protection with plexiglass doors
Overall construction
Split
Power supply
220V(50Hz/60Hz)
Working space
Width 280×400mm
Isostatic chamber dimensions
Φ80×150mm
Max. chamber pressure
300Mpa
Dimension
950×550×1150mm
Equipment weight
680kg
Model description
Higher pressures (≤500Mpa) can be achieved by adjusting the size of the isostatic chamber (customised)
