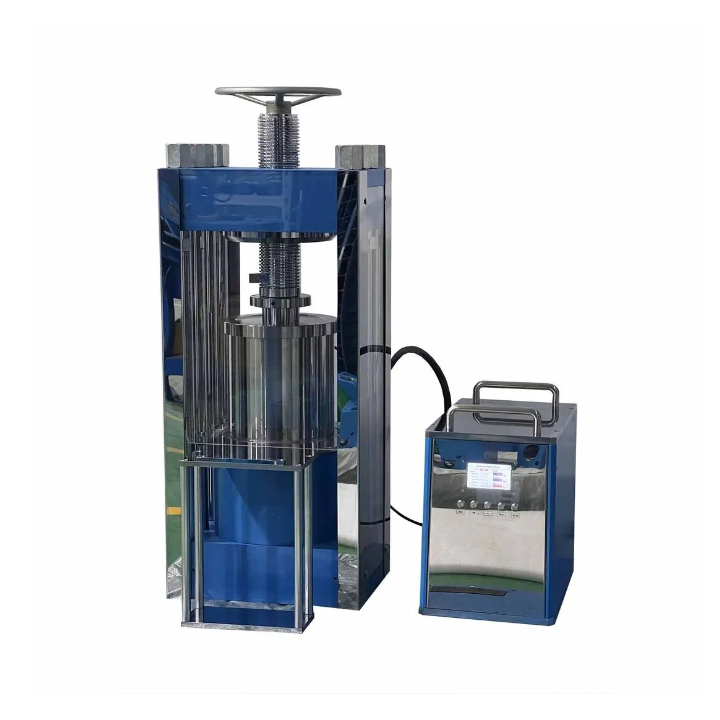

Split Type Electric Isostatic Hydrostatic Press 200t
Equipment Introduction:
DYJP-TZ series electric hydrostatic presses adopt split structure, with large tonnage, large working space and other characteristics, to meet the need for large sample test users, fully automatic programmed intelligent operation: programmed pressurization / slow pressurization - pressure - replenishment - timing pressure relief, etc., steel plate protection and plexiglass protection door, the operation of production is safer and more secure, stable pressure, easy to operate, is another innovative product developed by XINNUO following the ordinary It is another innovative product developed by Xinno on the basis of common static pressure machine.
Main technical parameters:
|
Equipment Model |
DJYP-200TZ |
|
Pressure range |
1.0-200.0T/0. 1t |
|
Piston diameter |
Φ290mm |
|
Maximum cylinder stroke |
50mm |
|
Pressurization method |
Motor-operated welder
|
|
Pressurization process |
Intelligent, fully automatic, programmed pressurization/slow pressurization - Programmed pressure maintenance/recharge - Timed pressure relief |
|
Display screen |
XNNETS 4.3 -inch LCD display |
|
Holding time |
0-999.59 (min. sec) |
|
Pressure conversion |
The program automatically converts and digitally displays the pressure of the mold sample.(Mpa) |
|
Equipment guards |
Steel plate protection with plexiglass protection door |
|
Overall structure |
Split type |
|
Equipment power supply |
220V (50Hz/60Hz) |
|
Working space |
Width 290×300mm |
|
Isostatic pressure chamber size |
Φ90×150mm |
|
Maximum pressure of the chamber |
300Mpa |
|
Dimension |
1000×650×1050mm |
|
Equipment weight |
800kg |
|
Model Description |
Greater pressure can be achieved by adjusting the isostatic chamber size (custom)(≤500Mpa) |
