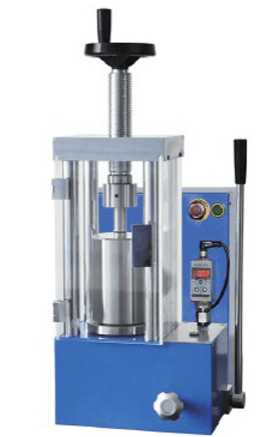

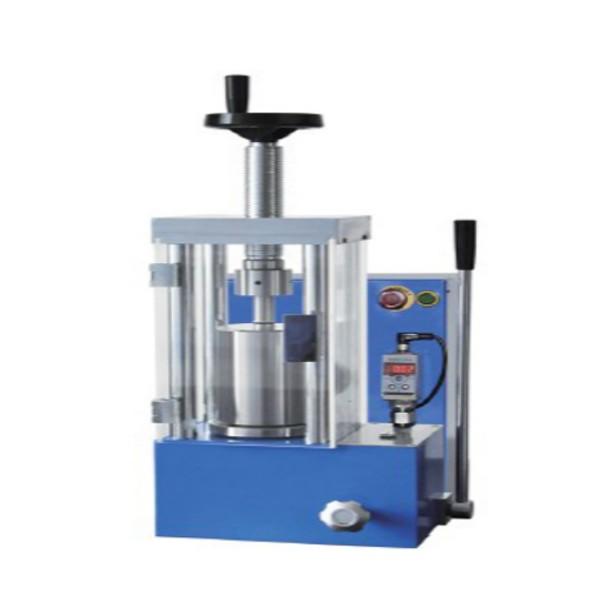

Model

LITH-SJYP-12T

Pressure range

0-12T(0-17MPa)

Piston diameter

Chrome-plated cylinder Φ95mm(d)

Main body structure

Utility model patent 2013 2 0040218.0

Pressure gauge

Digital display 0-40MPa

Maximum piston stroke

40mm(T)

Pressurized method

Electric pressurization/manual pressurization

Compensation method

Automatic supplementary pressure / manual slow pressure

Protecting mask

Plexiglass

Ambient temperature

10℃-40℃

Isostatic pressure

0-300MPa

Isostatic chamber

Φ22*70mm(M*N)

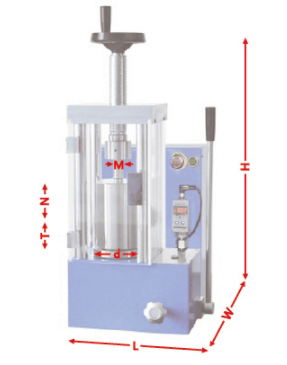

Dimensions

305*430*530mm(L*W*H)

Power supply

220V(50Hz/60Hz)

Equipment weight

110kg

Dialogue of thermal compressor size
