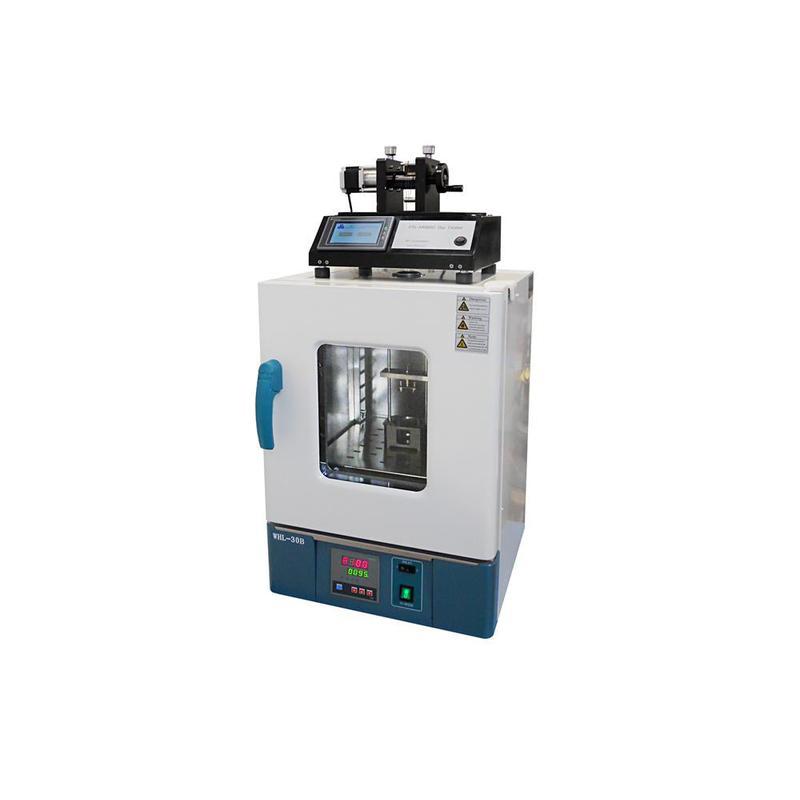

PTL-MMB02is a Millimeter Grade Desktop Programmable Dip Coater (1-200 mm/min) with "touch-screen" digital control. Dipping rate, pulling rate, dwell time, and cycle life can be set up by touch screen controller and run dip-coating automatically in the temperature controllable oven. It is designed for R&D Lab to prepare various optical or epitaxial films from liquid solutions.
SPECIFICATIONS:
Working Voltage
|
110/220V AC selectable
|
Travelling Distance
|
0-60 mm Adjustable
|
Dipping/Pulling Speed
|
1-200 mm/min Programmable with accuracy within +/- 0.05%
|
Control Panel
|
-
6" LCD color touch screen controller can program:
-
Dipping/ pulling speed: 1-200 mm/min with accuracy within +/- 0.05%
-
Dipping/ pulling distance: 0-60 mm adjustable
-
Dwell time: ( 999 seconds max)
-
Cycle time: 20 times max.
|
Sample Holder
|
Two screw sample clips are installed in the sample holder in order to carry the samples sliding up and down through two guide rods
|
Solution Container
|
One 150mL beaker is included
|
Beaker Holder
|
The beaker which contains the coating material (coating solution) will be placed into the slot of the beaker holder.
|
Max. Sample Size
|
3"(L) x 2"(W)
|
Sample Weight
|
Less than 250g
|
Dipping/Pulling Motor
|
Stepping Motor
|
Oven
|
-
Working Voltage: 110/220V AC selectable in Personalization
-
Max. Power Consumption: 600W
-
Temperature: 50-100°C controlled by a digital controller with +/- 1°C accuracy.
-
Chamber Dimensions: 280mm(L) x 280mm(W) x 280mm(H)
-
Inner Material: Stainless Steel
-
Product Dimensions: 406mm(L) x 406mm(W) x 610mm(H)
|
Compliance
|
CE Certified
NRTL or CSA certification is available upon request at the extra cost
|
Application Notes
|
-
In order to get better film coating, the substrate shall be treated by plasma cleaner (Please click on the first picture below for more information)
-
Use an ultrasonic processor to disperse nano powder or homogenize solution to get better coating (Please click on the second picture below for more information)
|
