500mm Wide Tape Casting Coater with Optional Doctor Blade or Slot Die Head

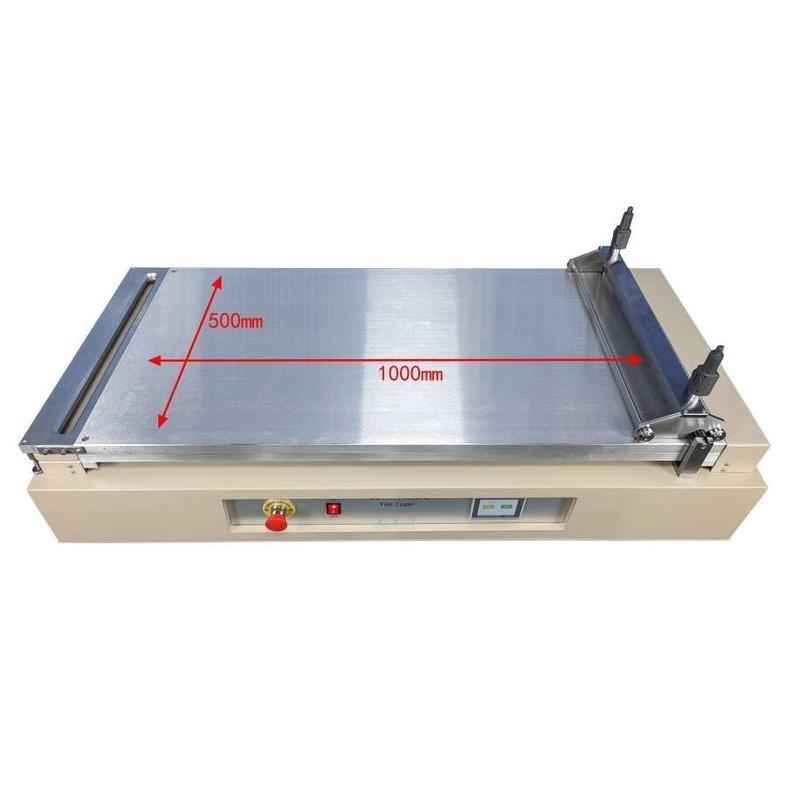

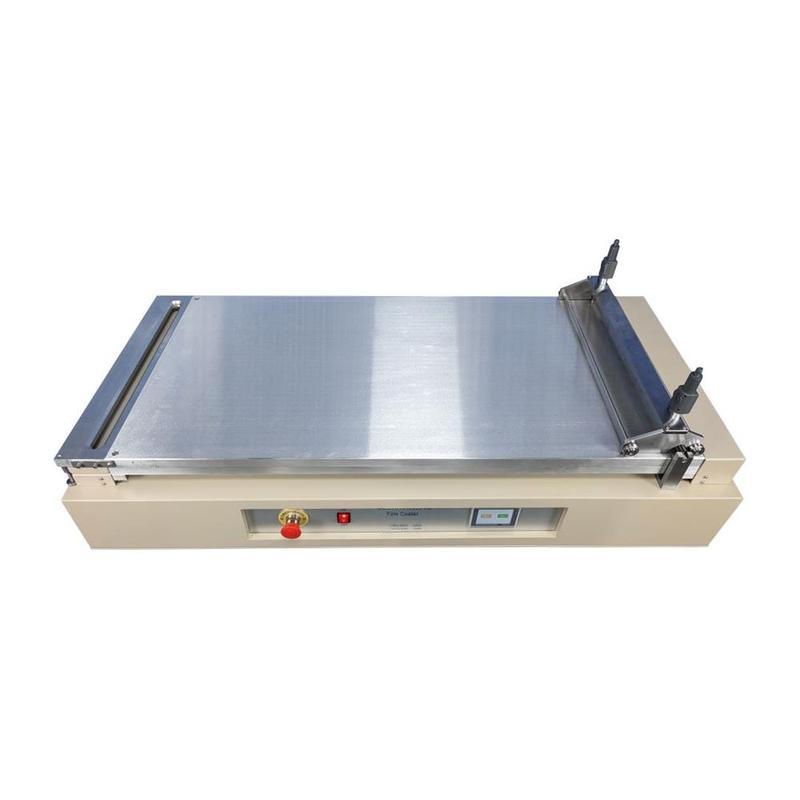

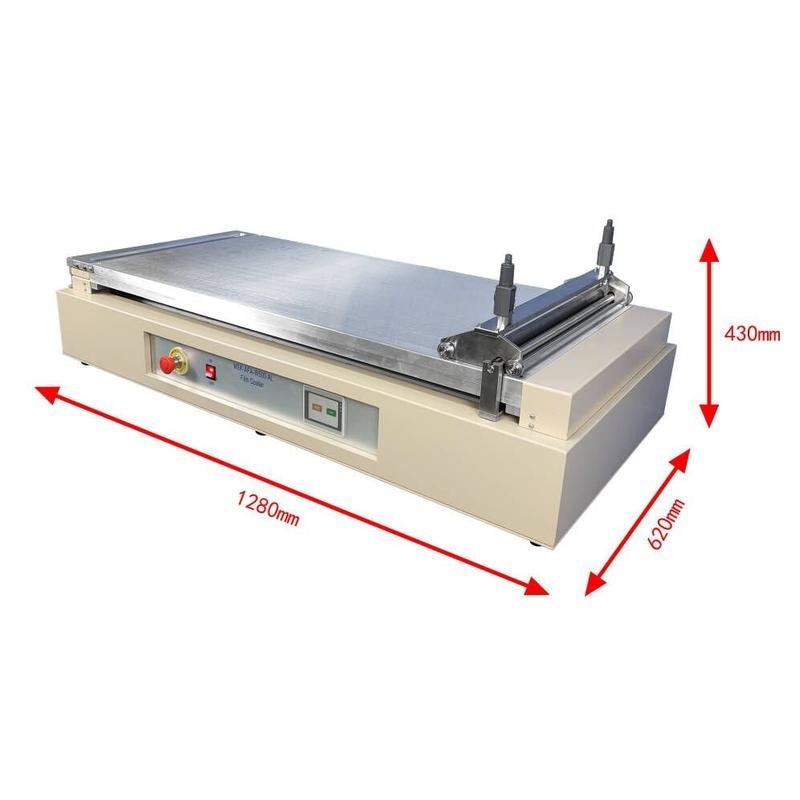

MSK-AFA-W500-AL is a 500mm-wide 1000mm-long tape casting flat-bed film coater with a 120°C heating vacuum chuck. The system includes a 500mm-wide doctor-blade film applicator. It is designed for prototyping medium size thin film coating for different applications, such as membranes, batteries, solar cells, etc.
SPECIFICATIONS:
|
Power
|
-
208-240VAC, single phase, 50/60 Hz
-
2000W (heating bed)
-
120-240VAC, single phase, 50/60Hz
-
80W (24VDC power adapter) (non-heating bed)
|
Control Panel
|
-
Touchscreen control panel for the settings of coating speed, distance, temperature, and vacuum.
-
Travel speed: 500 - 5000 mm/min
-
Travel distance: 1 - 1000 mm
-
Vacuum chuck temperature: 120ºC
-
PID temperature control with an accuracy of ±1°C
|
|

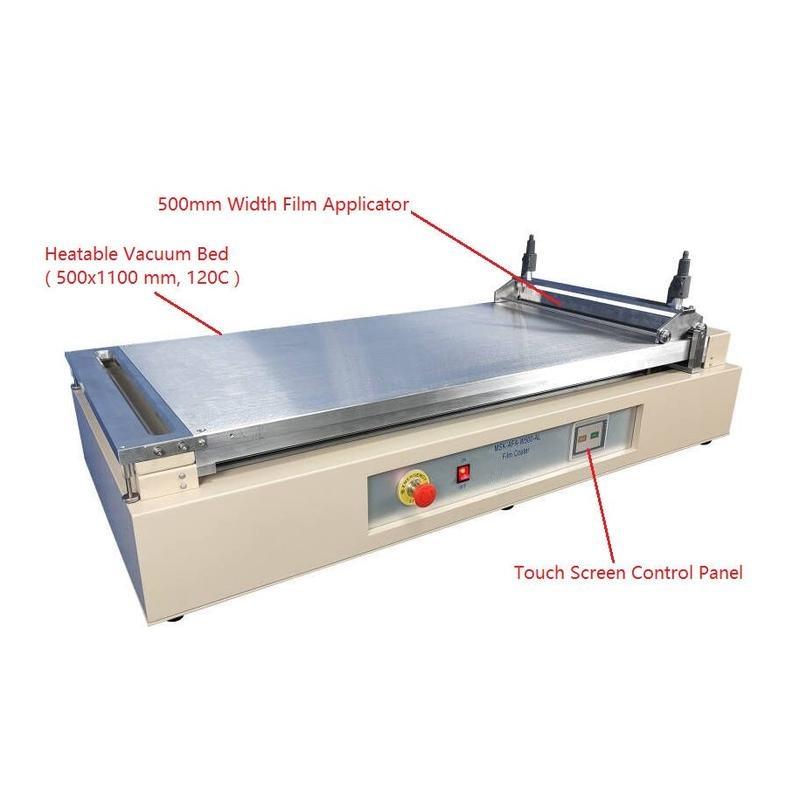

Heating Vacuum Chuck
|
-
Aluminum alloy flat vacuum chuck
-
Flatness: ±5 µm
-
Vacuum chuck: L1100 ×W 550 mm
-
Vacuum area: L1000 × W500 mm
-
Effective coating area: L1000 × W500 mm
-
Max. heating temperature: 120°C
|
|
Coating Thickness
|
-
Max. Area: 1000mm (L) x 350mm (W)
-
Max Thickness: 500 microns with accuracy +/- 10 microns
-
Note: Film thickness accuracy is strongly dependent on Slurry Viscosity. Slurry quality is very important for film quality.
|
Doctor Blade Film Applicator
|
-
Stainless steel structure with 4 guiding wheels
-
Slurry guiding plate for even distribution of slurry.
-
500 mm coating width.
-
Wet film thickness between 0 - 5000 microns.
-
The two digital micrometers, 0-12.7 mm, ±5 µm
|
Slot-die Film Applicator (optional)
|
-
Stainless steel structure with 4 guiding wheels
-
Contactless coating for thin films
-
500mm coating width
-
2 sets of stainless steel shims: 0.2mm, 0.3mm, and 0.4mm
-
The two digital micrometers, 0-12.7 mm, ±5 µm
|
Vacuum Pump (Optional)
|
-
120 L/min oilless vacuum pump
-
Ø8mm OD gas tube
|
Top heating cover option (optional)
|
-
IR light heating cover is available upon request at the extra cost ( click Pic left to see details)
-
Digital temperature controller is built in ( single point control)
-
Max. working temperature: 120oC
-
Power: 220VAC +/- 10%, 50/60Hz, 2500W
|
Application Notes
|
-
Pic.1 and 2 show coated cathode and anode for Li-Ion batteries. Please click here to see how to
-
It is recommended to operate the coater under a fume hood. (Click Pic.3 for detail.)
-
May need a vacuum mixer to remove air bubbles inside slurry to make uniform coatings (Click Pic.4 )
-
You may need a Slurry Viscosity Tester to make coatings consistent (Click Pic.5 for detail.)
-
You may need a Dry oven to dry the films and remove the binder after coating. (Click Pic.6 for detail.)
 Pic. 4  Pic.5
|
Compliance
|
-
CE certified
-
NRTL or CSA certification is available upon request at an extra cost. (based on UL61010/SPE-1000 regulation).
|
