• 110 V or 208 - 240V AC selectable
• 50/60Hz
• 1.5KW

• Vacuum chuck made of SS316 alloy with < 1.0 mm hole

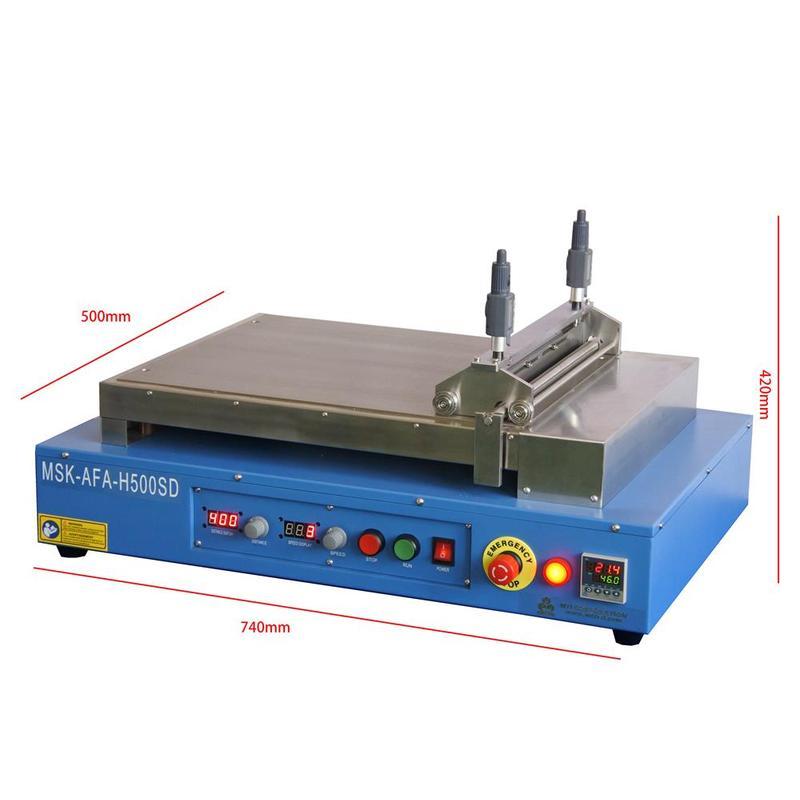

• Vacuum Chuck Dimensions: 500 mm (L) x 400mm (W) (19.7 “L x 15.7" W)
• The chuck is heated up to 150ºC by a digital temperature controller with +/- 1ºC accuracy
• Traverse Speed: 5 - 100 mm/sec variable
• Traverse Length: 10 - 400 mm adjustable by the Adjustable Position Switch
• The vacuum pump is not included, please click the picture to the left for ordering.

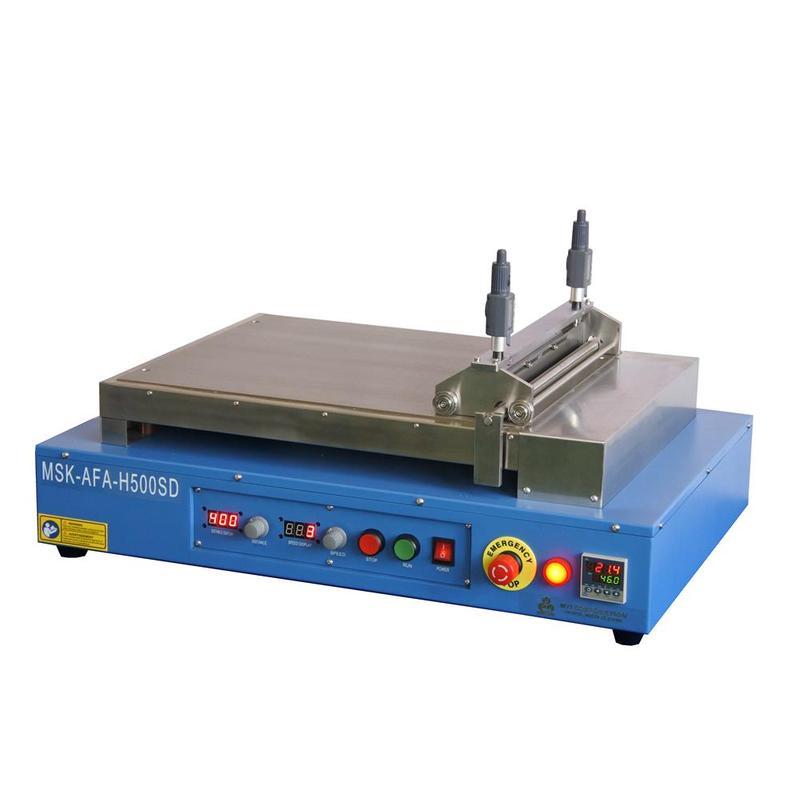

• A slot-die with 300 mm width is installed on a moveable fixture that has three precision rollers on the bottom (Pic. 1)
• The pushing rod will push forward the slot-die head to coat the slurry on the substrate smoothly without touching the substrate

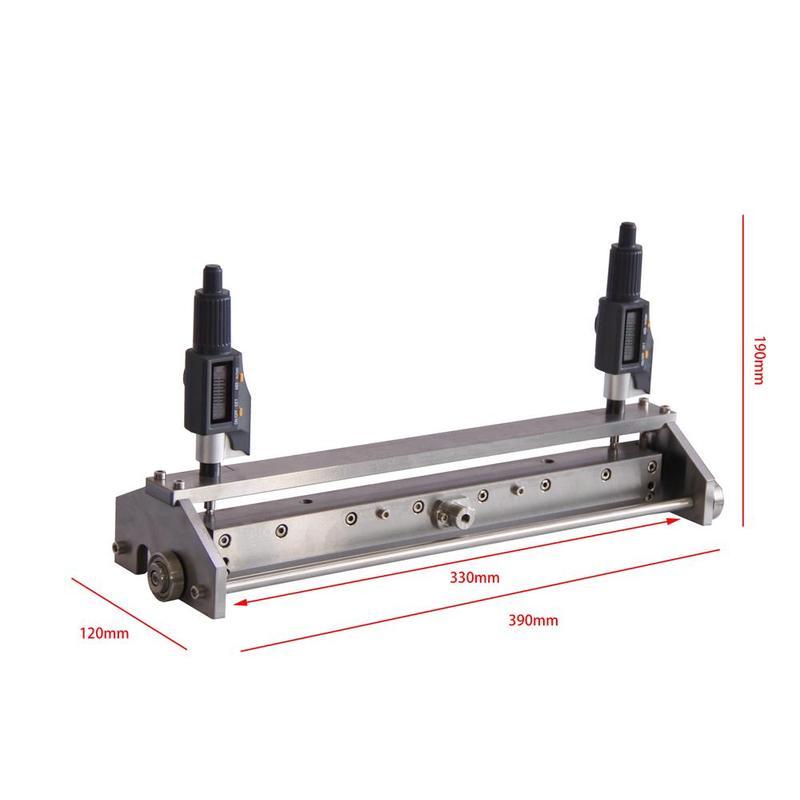

• The gap between the coating blade and the substrate plate is adjustable with +/- 1-micron accuracy via dual digital micrometers (Pic. 2)
• An optional multi-slid-die fixture is available upon request upon request at the extra cost. (Pic. 3-4)

Pic. 1

Pic. 2

Pic. 3

Pic. 4

Syringe Pump (Optional)

• Digital Controlled Syringe Pump
• Holds syringes up to 60 mL
• Remembers previous settings on power-up
• Pumping rate: 25 mL/hr with a 60mL Syringe
• Infuses Only. Does not withdraw the syringe
• Please click the picture to the left for ordering

• In order to achieve better coating by the slot die, slurry's Viscosity and dispersion is very important.
• Please click picture 1 to order the Viscosity meter and dispersing machine (Pic. 2) and find the best parameter for your coating

Pic. 1

• CE certified
• NRTL or CSA certification is available upon request at the extra cost
