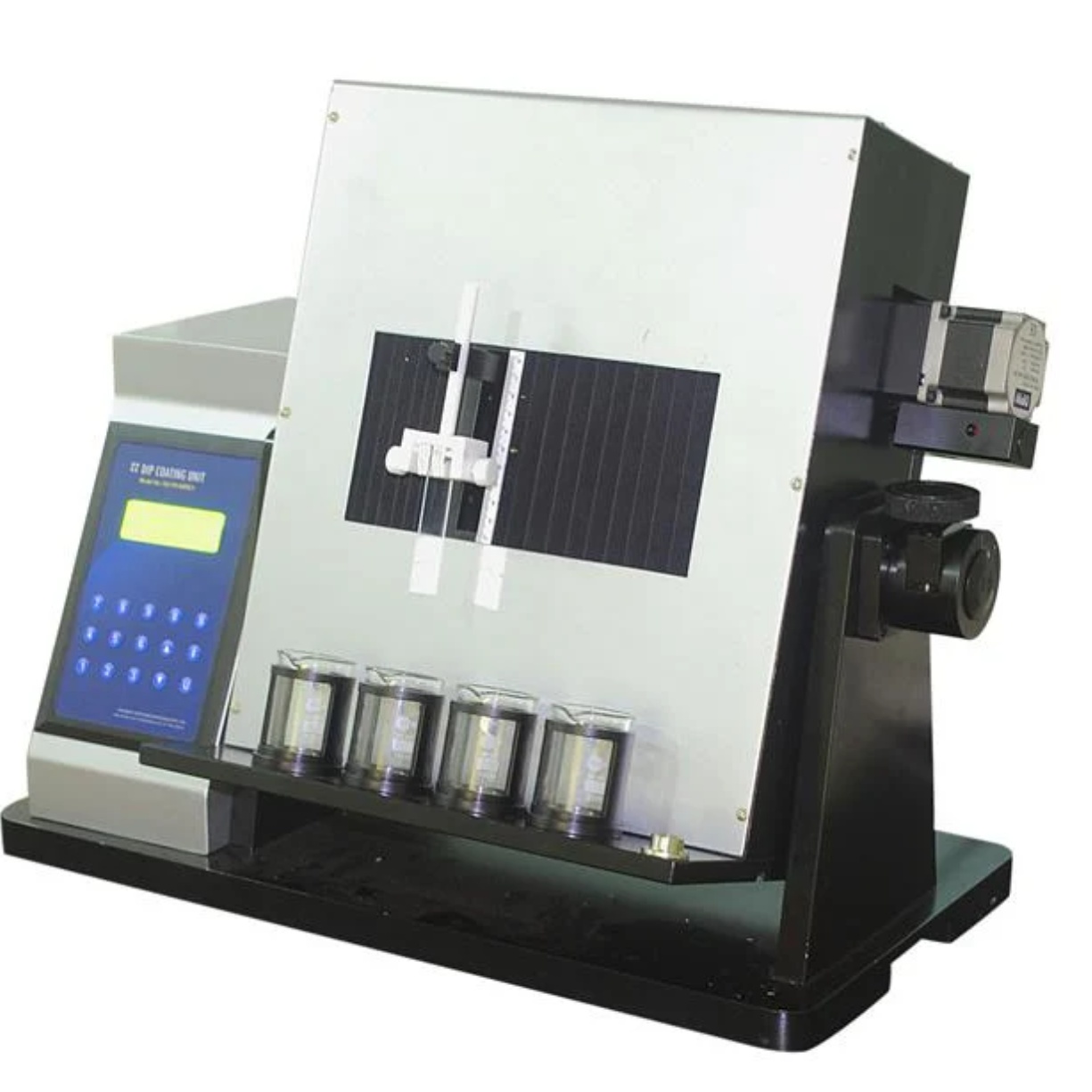

4-Position Angle Adjustable Dip Coater Machine
Product Description
The LITH-KJ04A is an Angle Dependent Dip Coating unit designed for nanolayer deposition on substrates by controlled immersion in coating solutions. The system allows angular variation from 0° to 45° with independent parameter control for each of the four beaker stations.
Operating Principle
The substrate is withdrawn from coating solution at a precisely controlled angle, simultaneously coating both surfaces with differential film thickness. This method reduces required coating steps to achieve desired thin film properties.
Technical Specifications
|
Category |
Specification |
|
Model Number |
Lith-KJ04A |
|
Coating Stations |
4 independent |
|
Angle Adjustment |
0° - 45° |
|
Actuator Type |
Servo motor |
|
Drive Mechanism |
Lead screw |
|
Dip Duration |
0-99 s/min/h |
|
Withdrawal Speed |
2-9000 micron/sec (max) |
|
Number of Dips |
1-999 programmable |
|
Sample Holder |
Standard included |
|
Beakers |
Four 150ml glass beakers included |
|
Power Requirements |
208-240VAC,50/60Hz (110V available) |
|
Max Power Consumption |
800W (with heater) |
|
Max Stroke Length |
75mm |
|
Control System |
• LED display with speed control • 5 programmable memory slots • RS232 port for PC connection • Included operation software (Windows 8 compatible) |
|
Certification |
CE Certified |
Application Guidelines
• For optimal film quality, substrates should be pretreated with plasma cleaning
• Ultrasonic dispersion of nanomaterials or solution homogenization is recommended
• Compact design allows operation within gloveboxes for controlled atmosphere processing
