• AC220V 60Hz
• 50W

• 500 - 5000 mm/minute
• Accuracy: 10mm/sec

10 to 999 mm (adjustable in continuous mode, ±1 mm deviation, recommend ≤ 920 mm)

 2 to 30 mm/s (deviation ≤ 1 mm/s)

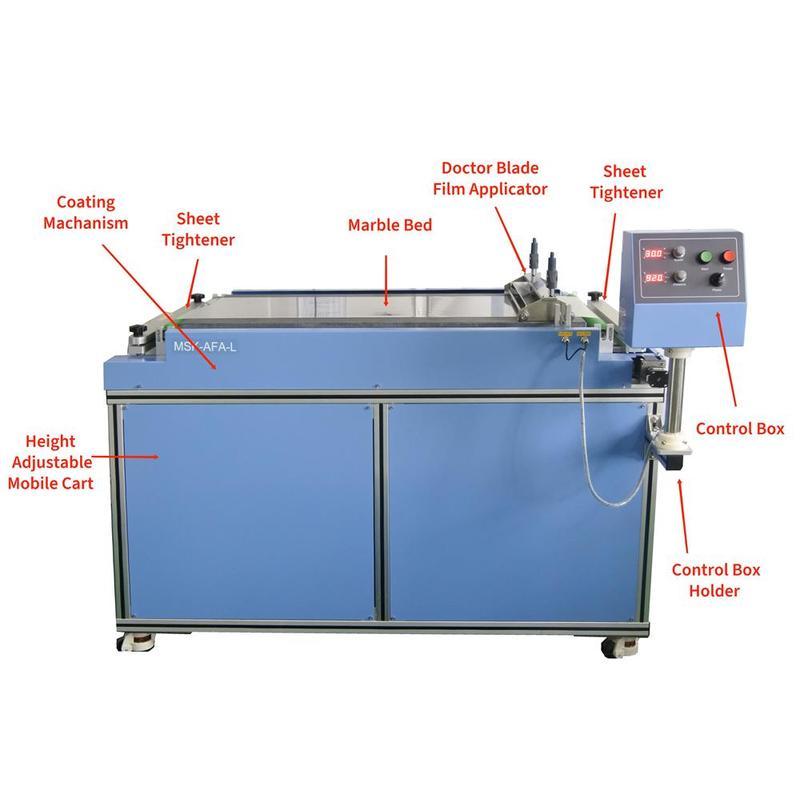

• The platform is made of precision marble
• Surface flatness is < +/- 2 microns

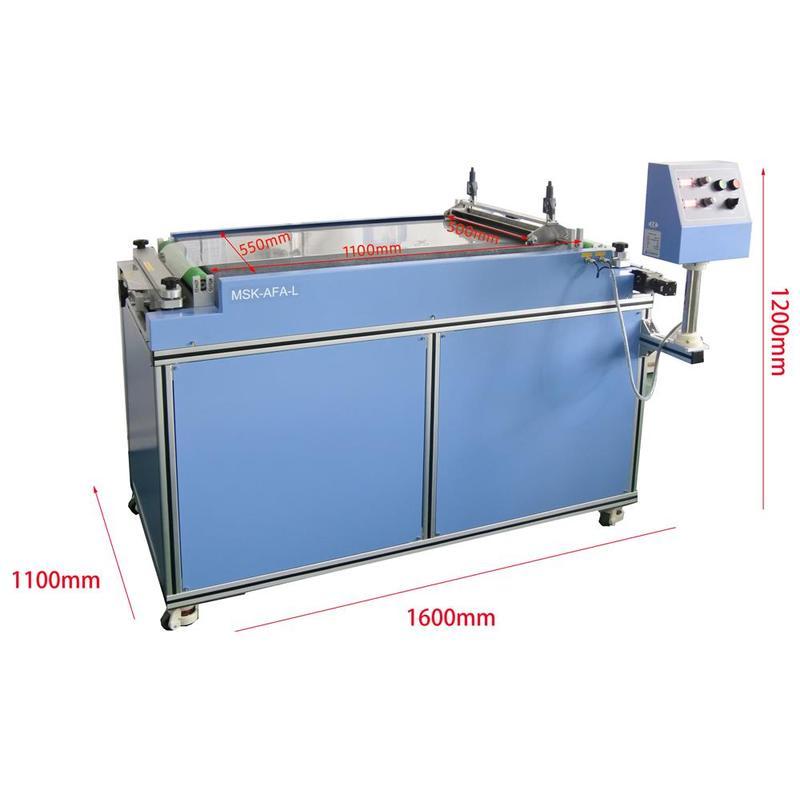

• Area: 550 mm width x 1100 mm Length
• One tightened fixture built-in right side for fixing the substrate
• Magnetic clampings are installed on two sides of the stage.
• One tray is included in the left end to collect The residual slurry
• The platform is installed on the mobile cart with the wheel height adjustable.

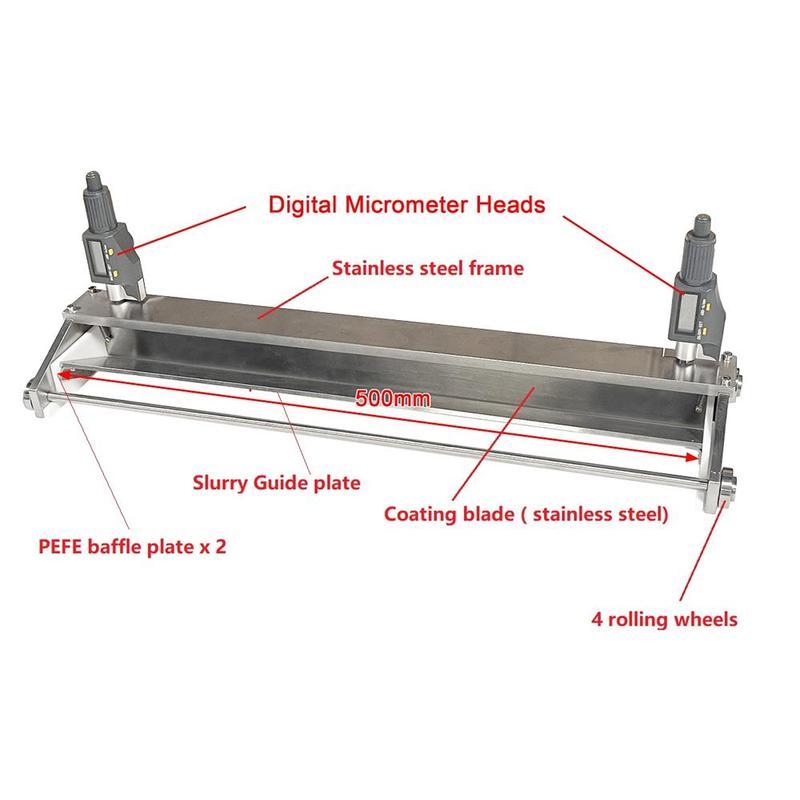

• One doctor-blade Film Applicator with 4 precision rolling wheels for easy moving
• PEFE baffle plats with slurry guide plates is put inside the frame ( see picture left for details)
• Standard Width 500 mm
• Coating thickness accuracy: +/- 5 microns or 10% of film thickness

• Optional top-side heating cover is available up to 100oC for drying

• CE certified
• NRTL or CSA certificate is available upon request at an extra cost.
