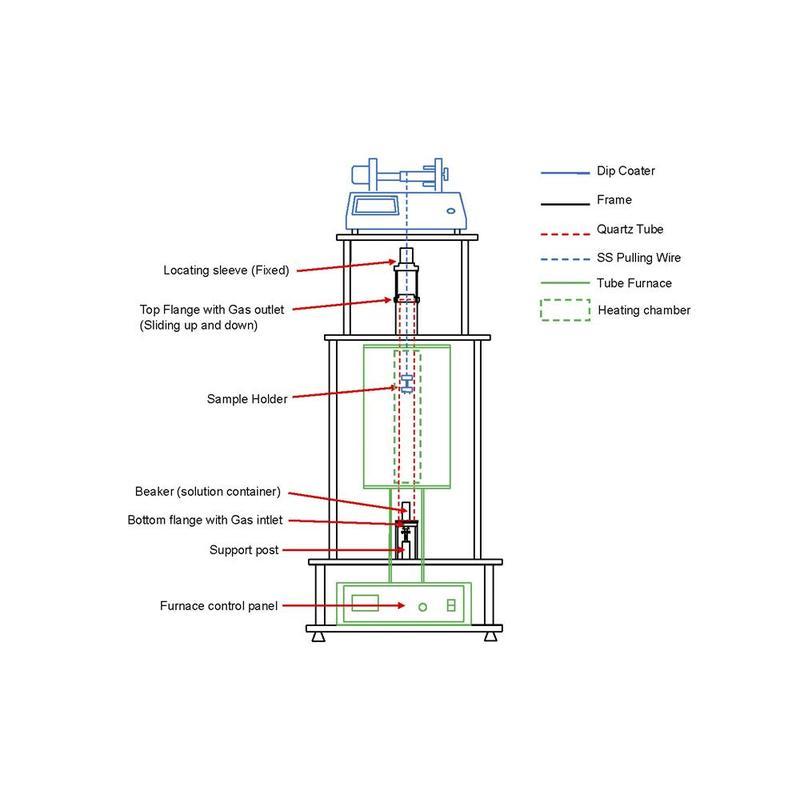

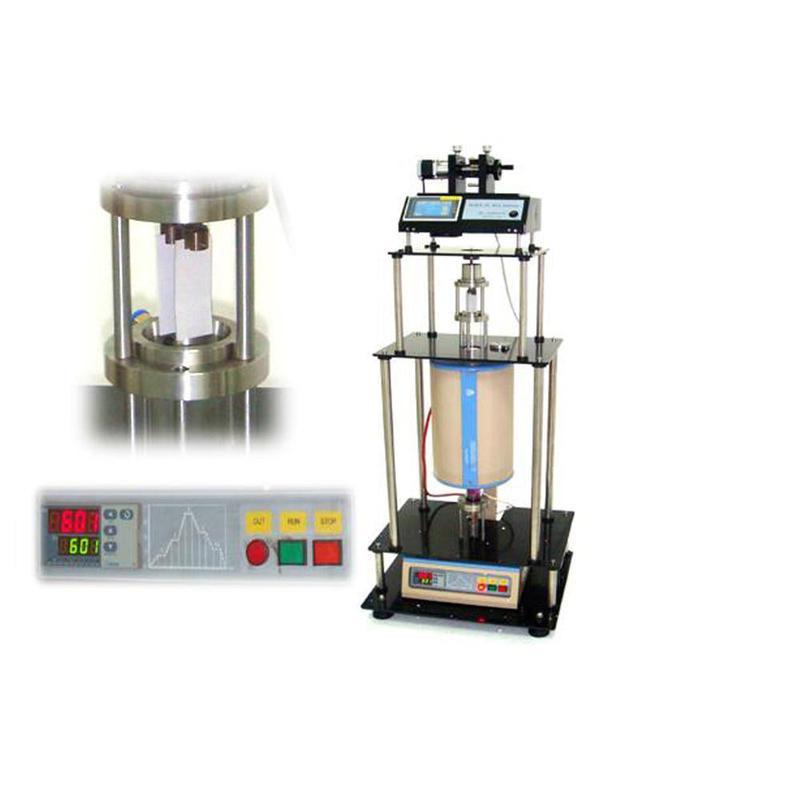

PTL-HT-2  is a CE Certified Programmable Dip Coater with 2" Tube Furnace and color touch screen controller. It is designed for R&D Lab to prepare various optical or epitaxial films from the liquid solution under controlled temperature and atmosphere environment. Dipping rate, pulling rate, dwell time, and life cycle can be set up via the touch screen control. The solution is located at the bottom of the sealed tube at room temperature, and the sample can go through a hot zone up to 800^oC (to protect the stainless steel wire and sample clamp) under various gas atmosphere or vacuum for achieving high-quality epitaxial films.

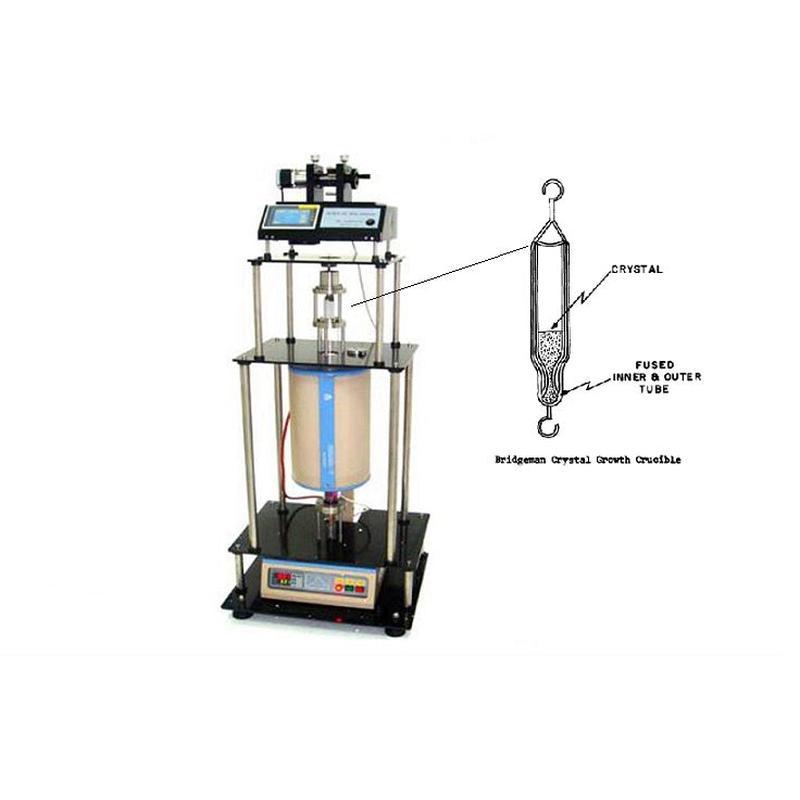

• This furnace can be modified into a  Bridgman vertical furnace, Please read the related article and application note below.
• Please view "Broad temperature plateau for high ZTs in heavily doped p-type SnSe single crystals" published by Energy & Environmental Science, in which an MTI Verticle Bridgman Cyrstal Growth Furnace was used for the thermoelectric material SnSe Single Crystal Growth.

SPECIFICATIONS:

Dip Coater	Working Voltage: 110V AC   or 220V ) Max. Power Consumption: 50W 6"(L) x 4"(W) Touch Screen Display Three stages pulling speed control Total stoke length: 620mm Pulling Speed: 1-200 mm/min programmable with an accuracy of +/- 0.05% Dwelling time at constant temperature zone: 1-999 seconds Lower or higher pulling or dipping speed is available upon request at extra cost
Tube Furnaces	Working Voltage: 110V AC or 220V Max. Power Consumption: 2KW Tube size: 2" (OD) x 24"(L) Heating Zone Length: 12" (300mm) Max. heating temperature: 1200°C Continuous working temperature: 1100°C 30 segment programmable digital temperature controller Note:   Max. working temperature for dip coating is limited by pulling wire Included stainless steel wire  Max. working temperature < 800°C Ni-Cr-Al wire ( not included )   Max. working temperature < 1100°C Platinum wire ( not included )  Max. working temperature 1200°C , 1600°C
Pulling wire 800C pulling wire (Ni-SS)	Three sets of Ni-SS pulling wire are included (pic to the left). Max. The working temperature is 800°C. Optional pulling wire for higher working temperature: Ni-Cr-Al wire max. working temperature: 1100C Platinum wire  max. working temperature: 1200 - 1600C
Stage Length	Lower Stage (Pre-heat zone): 236mm Center Stage (Constant temperature zone): 150mm Upper Stage (Cooling zone): 234mm
Compliance	CE Certified NRTL or CSA certification is available upon request at extra cost
Laptop, software & WiFi Control (Optional)	Brand new laptop with Microsoft Window 10 and Microsoft Office 2013 (30 days free trial)  Labview Based Temperature Control System (MTS01) enables users to edit temperature profiles, manage heat-treatment recipes, record, and plot data for MTI furnaces. A wireless remote control provides up to 300 meters of operating range. The above features are available upon request at an extra cost (up to $1,000).  Note: The software is only compatible with MTI’s Yudian Temperature Controller
Application Notes	In order to get better film coating, the substrate shall be treated by plasma cleaner (Please click on the first picture below for more information) Use an ultrasonic processor to disperse nano powder or homogenize solution to get better coating (Please click on the second picture below for more information)
Accessories	Purchase more 75ml solution beaker here

STANDARD PACKAGE:

Item #	Description	Qty
1	Dip Coater	1
2	A furnace with 2" quartz tube and flanges	1
3	LCD programmable controller	1
4	800ºC Stainless Steel pulling wires	3
5	Beakers	2
6	High-Temperature Alloy Sample Holder (installed in the machine)	1
7	Power cord	1
8	Screwdriver	1
